Structure - electrical part
Controls

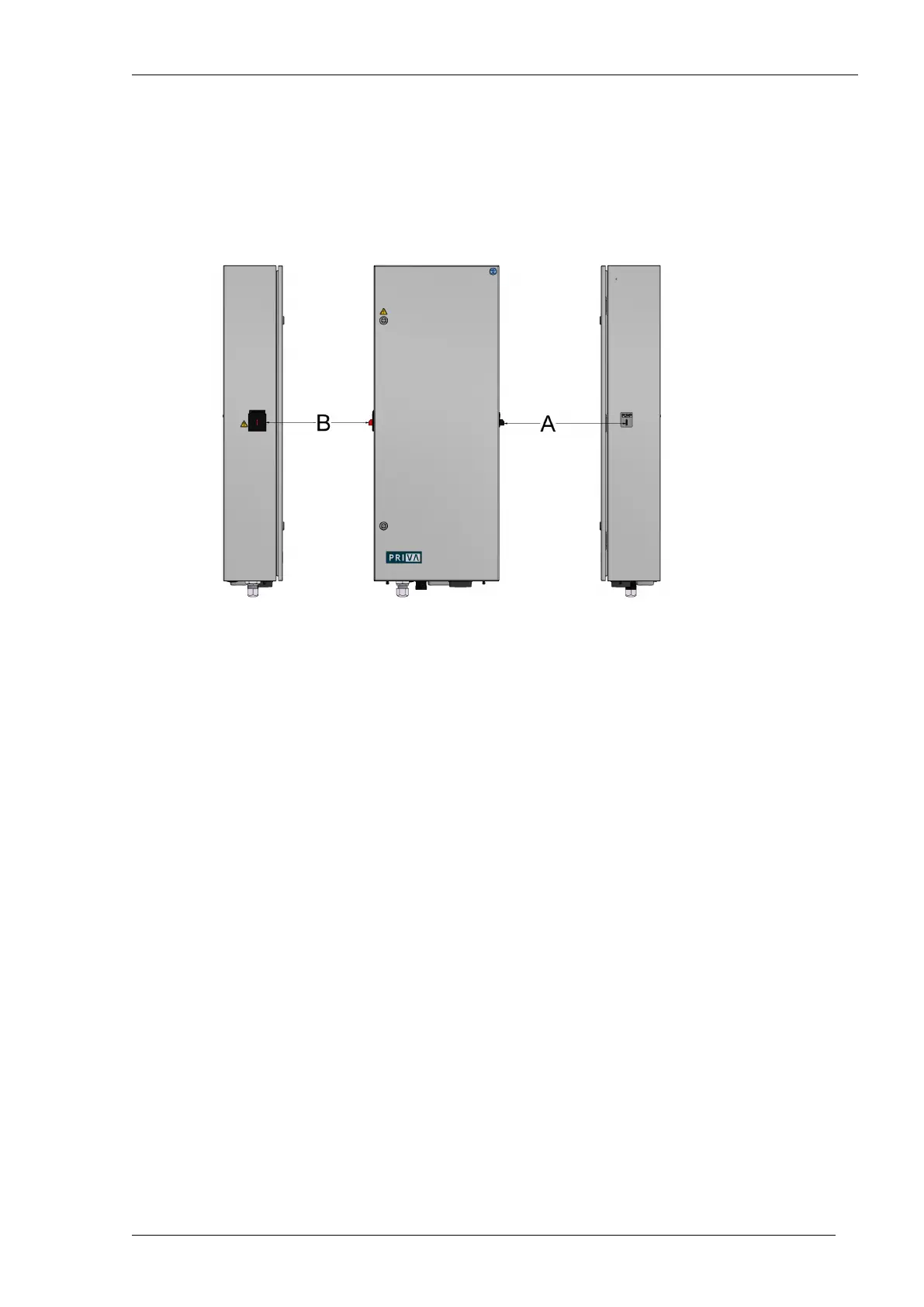

The cabinet can be operated from the outside with the switch of the system pump and the main
switch.
A. system pump switch ('pump switch')
B. main switch
System pump switch:
For convenience, the switch of the system pump is called the "pump switch" in this manual.
The pump switch has the following positions:
• Off: the pump is off and cannot be switched on by the process computer
• Manual: the pump is on and cannot be switched off by the process computer
• Automatic: the pump is controlled by the process computer
Main switch:
The main disconnect switch has the following positions:
• Off: no electrical power is being supplied to the unit
• On: electrical power is being supplied to the unit
