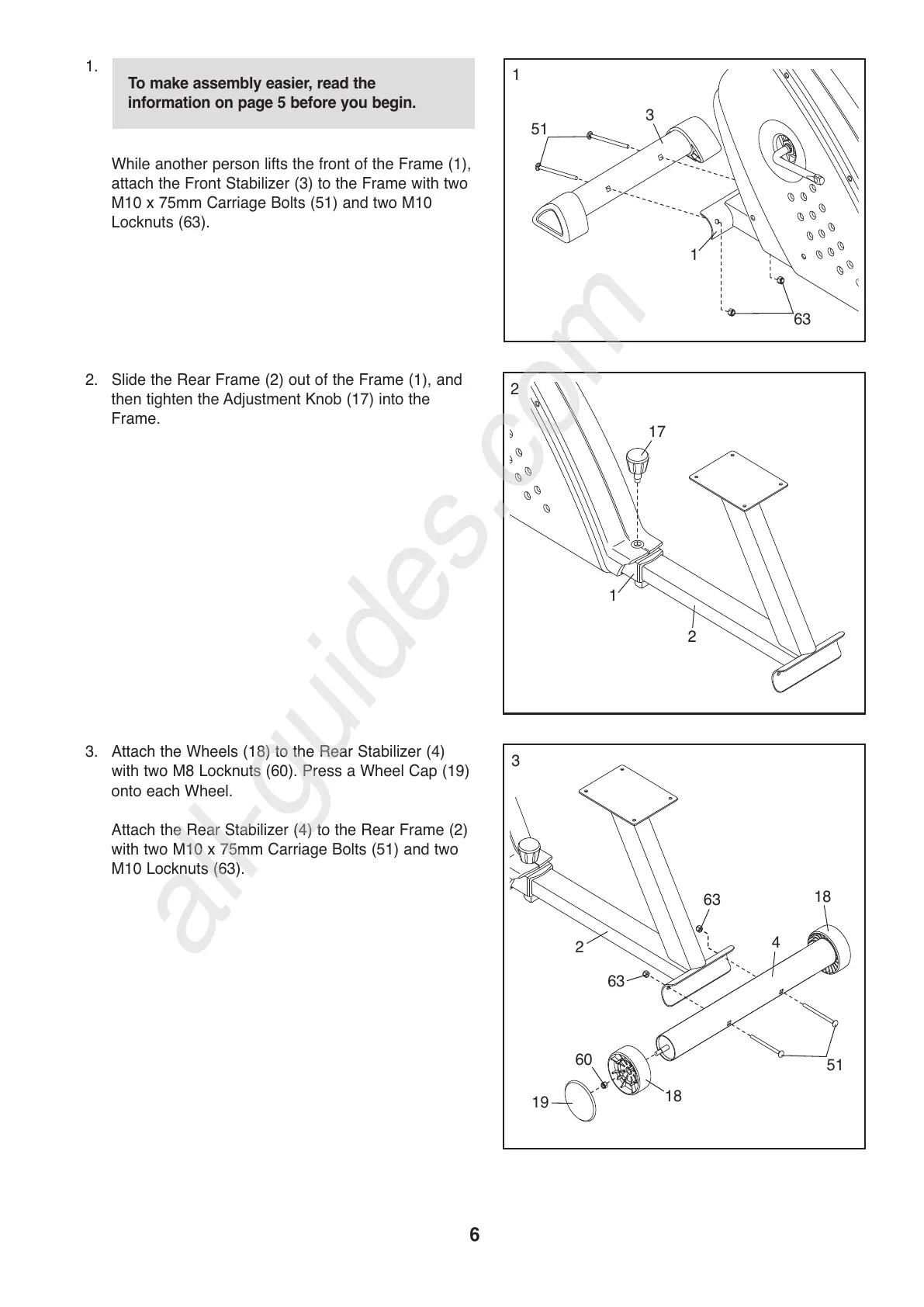

1.
W
hile another person lifts the front of the Frame (1),
attach the Front Stabilizer (3) to the Frame with two
M10 x 75mm Carriage Bolts (51) and two M10
Locknuts (63).
3
51
1
1
3. Attach the Wheels (18) to the Rear Stabilizer (4)
with two M8 Locknuts (60). Press a Wheel Cap (19)
onto each Wheel.
Attach the Rear Stabilizer (4) to the Rear Frame (2)
with two M10 x 75mm Carriage Bolts (51) and two
M10 Locknuts (63).
2. Slide the Rear Frame (2) out of the Frame (1), and
then tighten the Adjustment Knob (17) into the
Frame.
51
18
4
18
19
3
63
63
60
2
63
17
2
1
2
To make assembly easier, read the
i
nformation on page 5 before you begin.
