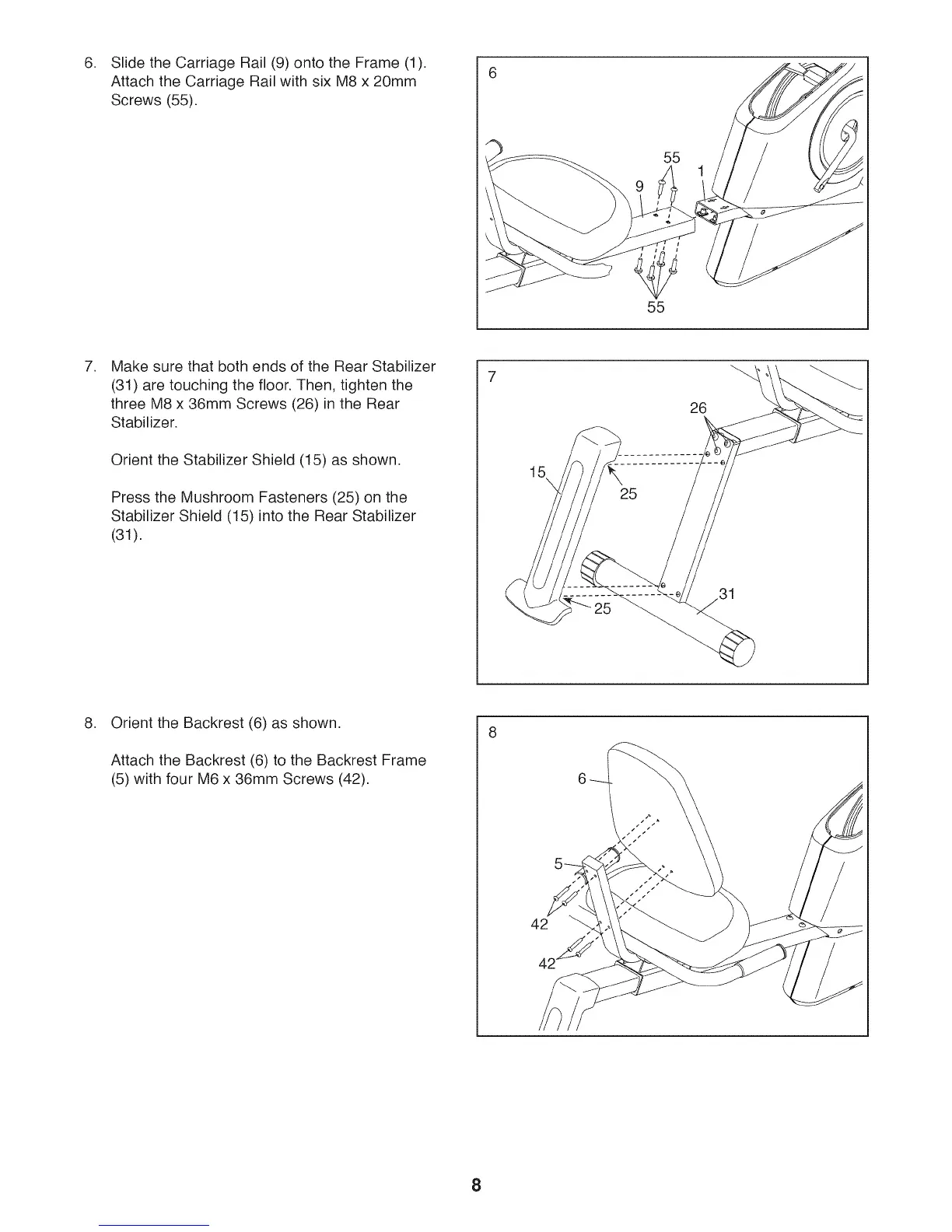

Slide the Carriage Rail (9) onto the Frame (1).
Attach the Carriage Rail with six M8 x 20mm
Screws (55).
55
55
, Make sure that both ends of the Rear Stabilizer
(31) are touching the floor. Then, tighten the
three M8 x 36mm Screws (26) in the Rear
Stabilizer.
Orient the Stabilizer Shield (15) as shown.
Press the Mushroom Fasteners (25) on the
Stabilizer Shield (15) into the Rear Stabilizer
(31).
7
15\
26
31
,
Orient the Backrest (6) as shown.
Attach the Backrest (6) to the Backrest Frame
(5) with four M6 x 36mm Screws (42).
8
