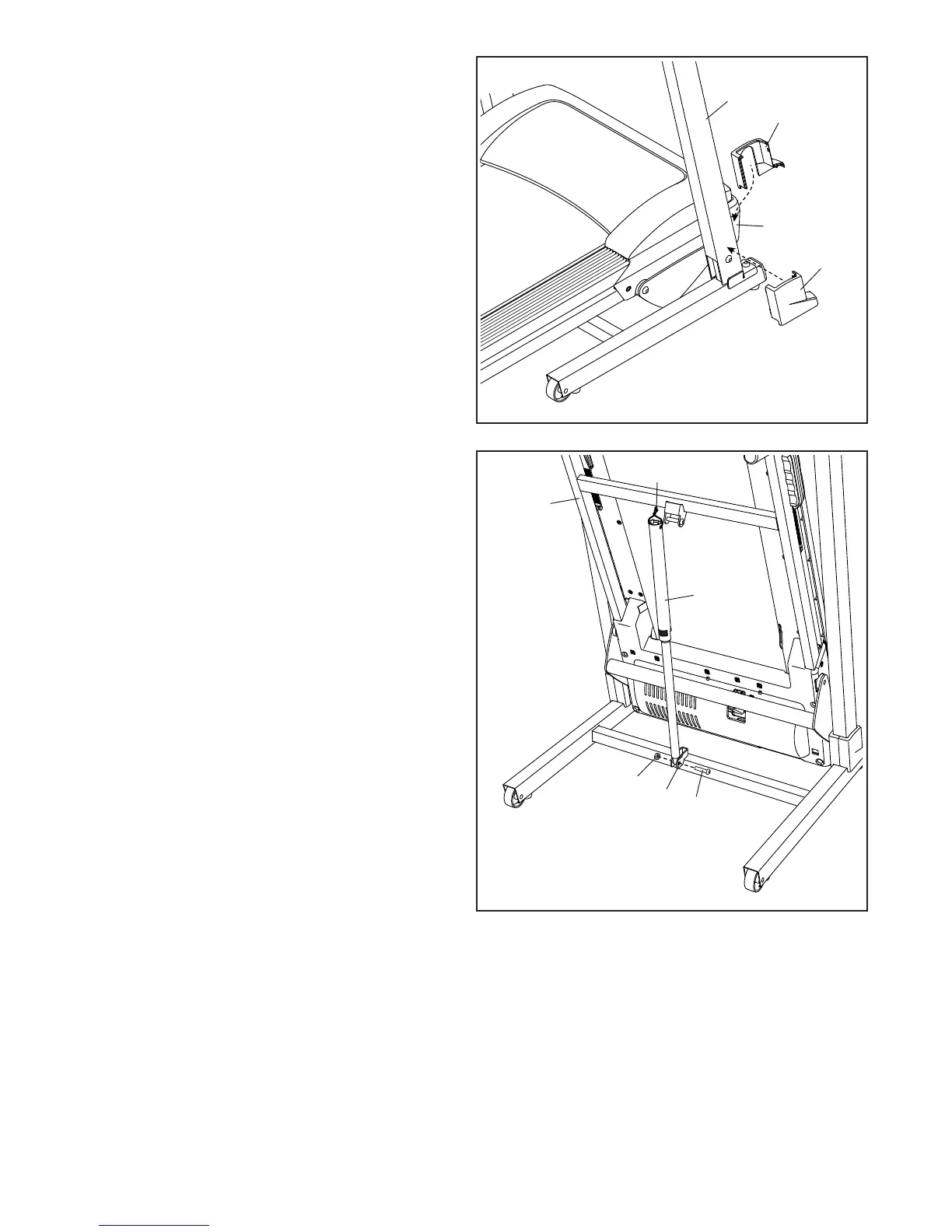

6. Slide the Right Inner Upright Cap (100) between
the Right Upright (95) and the Motor Hood (69).
Press the Right Outer Upright Cap (101) against
the Right Inner Upright Cap until they snap
together.
Repeat this step on the left side of the
treadmill.
100
69
101
6
95
83
93
62
4
48
A
7
7. Raise the Frame (62) to the upright position.
Have a second person hold the Frame until
step 8 is completed.
Remove the M8 Nut (48) and the M8 x 35mm Bolt
(4) from the bracket on the Base (83).
Next, orient the Storage Latch (93) as shown.
Attach the lower end of the Storage Latch (93)
to the bracket on the Base (83) with the M8 x
35mm Bolt (4) and the M8 Nut (48).
Then, raise the Storage Latch (93) to the vertical
position, and remove the tie (A).
