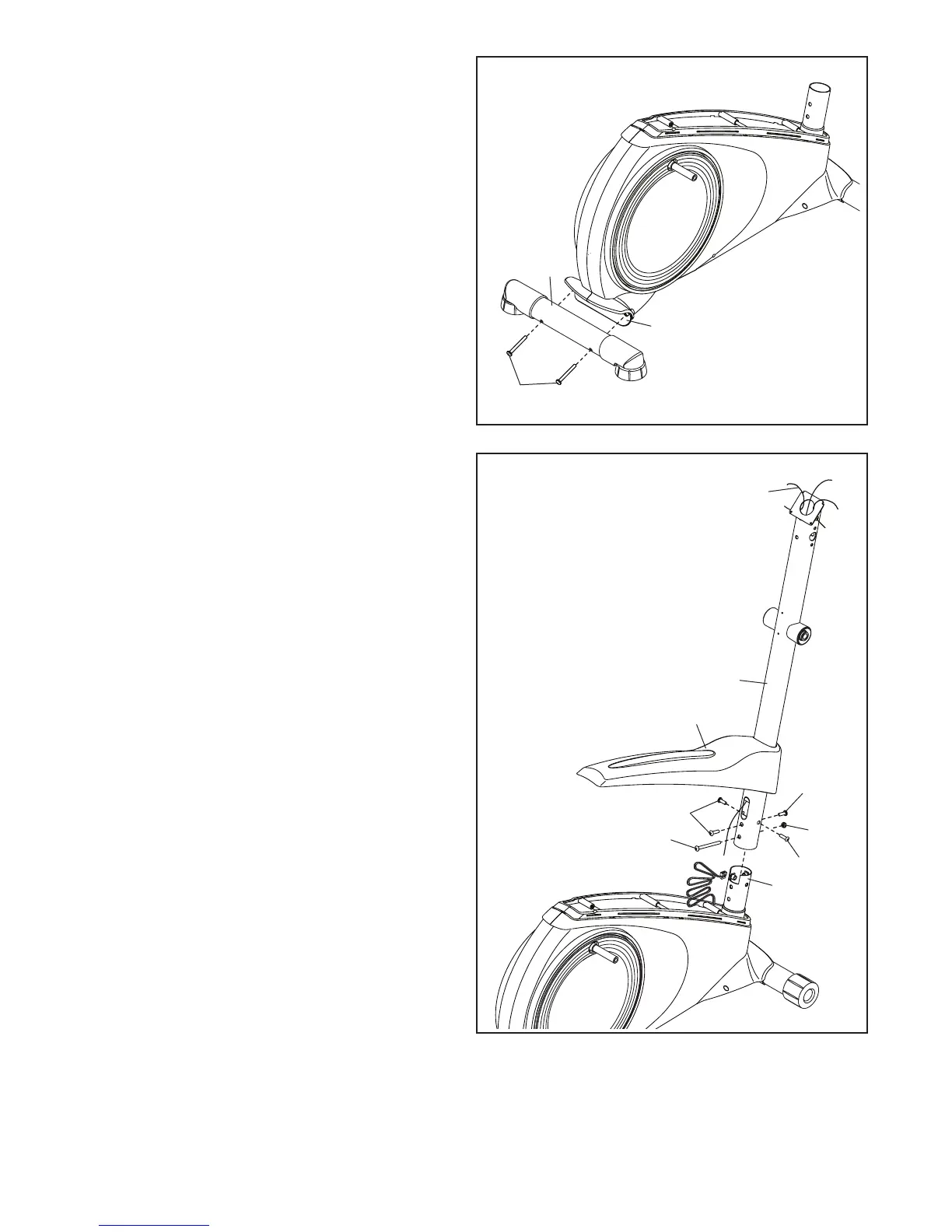

3. Orient the Rear Stabilizer (9) as indicated by the
sticker.
While a second person lifts the rear of the Frame
(1), attach the Rear Stabilizer (9) to the Frame
with two M10 x 68mm Screws (34).
34
9
1
3
4
4. Orient the Upright (2) and the Top Shield (41)
as shown. Slide the Top Shield upward onto the
Upright. Do not remove the wire ties from the
Upright.
Next, slide the Upright (2) onto the Frame (1).
Attach the Upright (2) with four M10 x 20mm
Screws (40), an M10 x 74mm Bolt (7), and an
M10 Locknut (33). Do not tighten the Screws
and the Bolt yet.
2
41
Wire Ties
33
7
1
40
40
40
