9
5

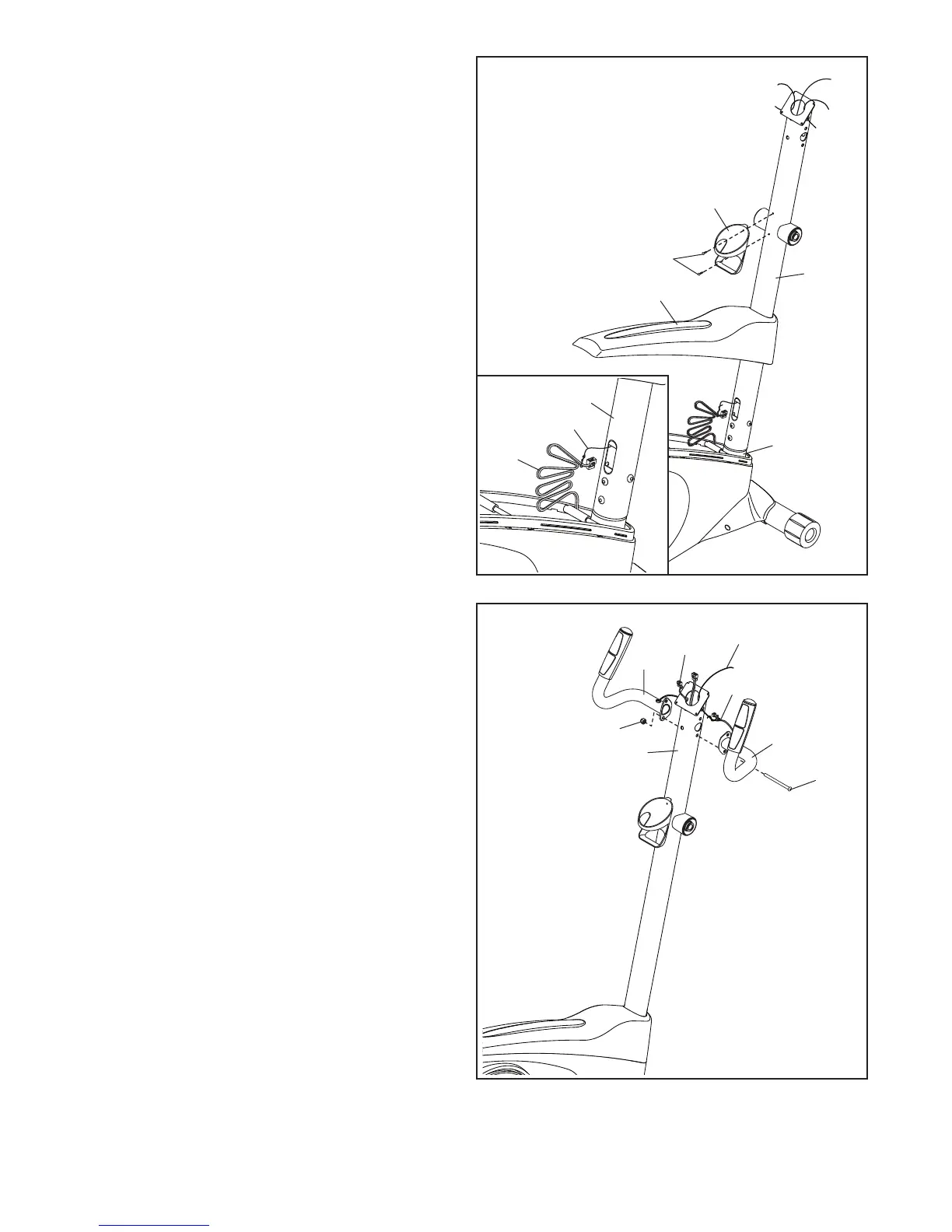

5. See the inset drawing. Locate the wire tie in the
lower end of the Upright (2). Tie the wire tie to
the Wire Harness (73). Next, pull the upper end
of the wire tie until the Wire Harness is routed
through the Upright.
Tip: To prevent the Wire Harness (73) from
falling into the Upright (2), secure the Wire
Harness with the wire tie.
Next, slide the Top Shield (41) downward to the
Frame (1). Do not press the Top Shield into
place yet.
Then, attach the Water Bottle Holder (29) to the
Upright (2) with two M4 x 16mm Screws (52).
2
29
52
6. Identify the Left and Right Handlebars (85, 86).
Tip: Avoid pinching the Pulse Wires (84).
Attach the Left and Right Handlebars (85, 86) to
the Upright (2) with an M8 x 77mm Bolt (79) and
an M8 Jam Nut (38). Do not tighten the Bolt
yet.
Make sure that the M8 x 77mm Bolt (79)
is inserted through the bottom hole in the
Left and Right Handlebars (85, 86) and the
Upright (2).
Next, locate the wire ties inside the Upright (2).
Tie the lower ends of the wire ties to the Pulse
Wires (84). Then, pull the upper ends of the wire
ties until the Pulse Wires are routed through the
Upright.
6
85
38
86
79
84
84
Wire Tie
2
Avoid pinching the
Pulse Wires (84)
2
1
73
Wire Tie
41
To Next Page
