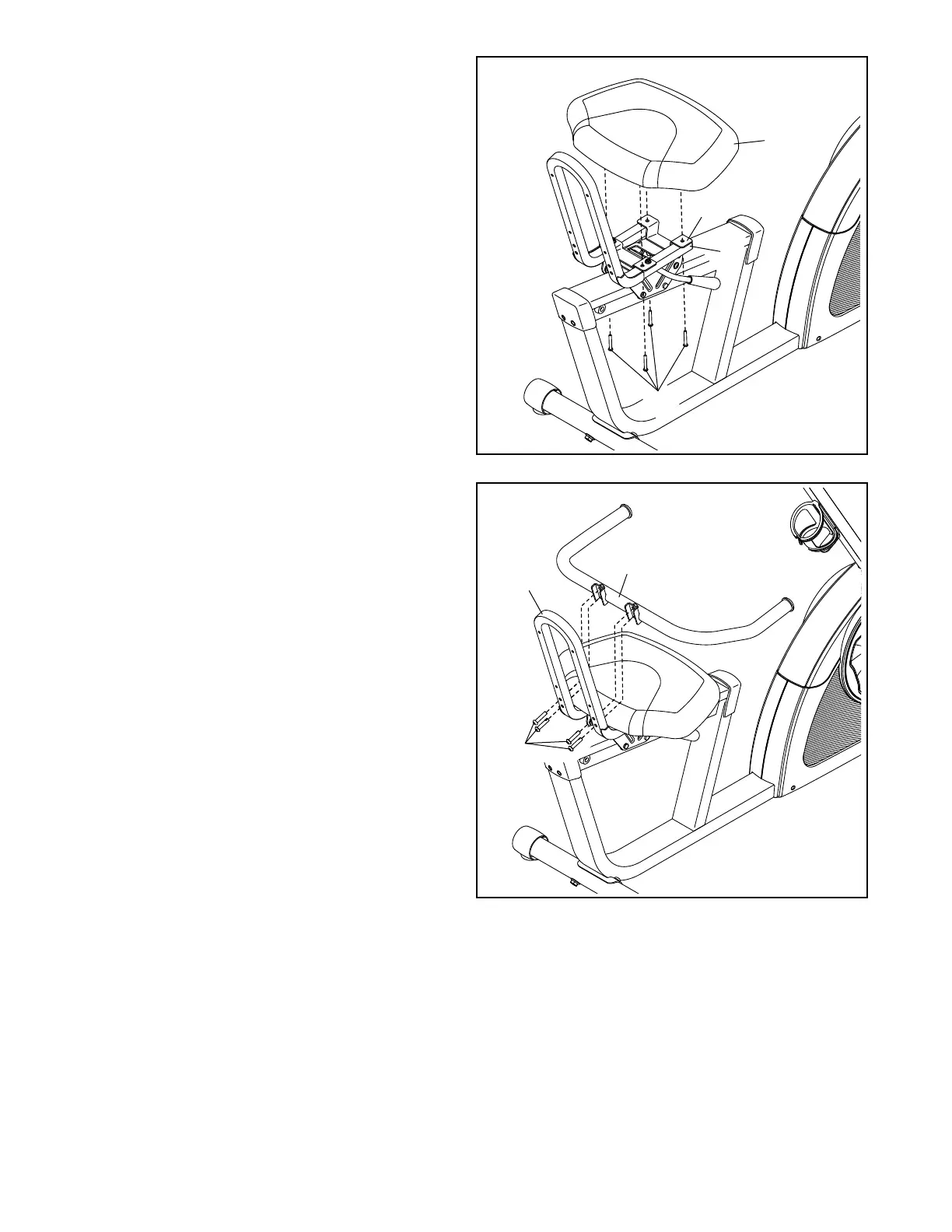

7. Attach the Seat (12) to the Seat Carriage (11)
and the Seat Frame (14) with four M6 x 40mm
Screws (51); start all the Screws, and then
tighten them.
See step 6. Tighten the M6 x 40mm Screws (51).
12
11
8. Orient the Seat Handlebar (18) as indicated by
the sticker.
Attach the Seat Handlebar (18) to the Seat
Frame (14) with four M8 x 38mm Screws (61);
start all the Screws, and then tighten them.
14
51
14
