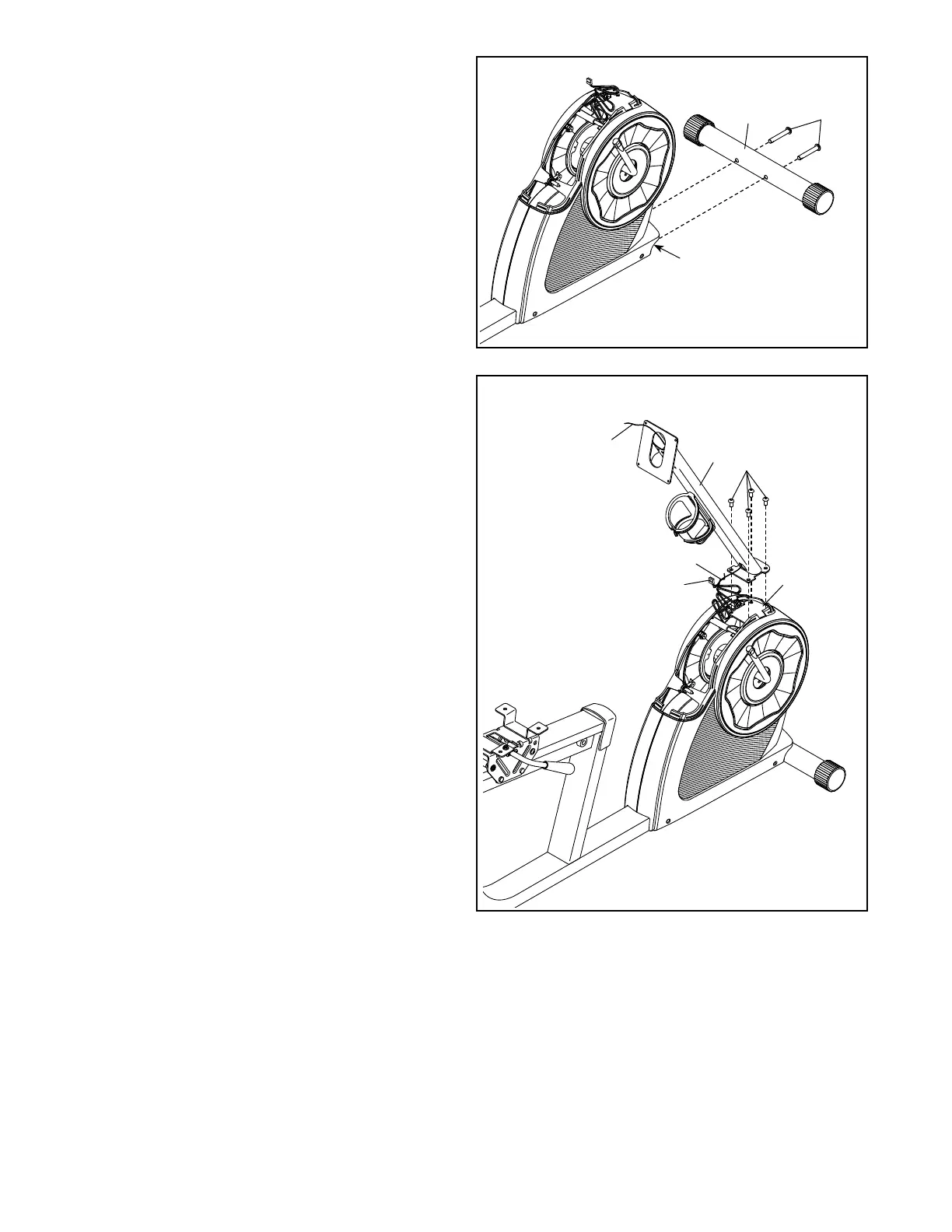

3. Set a sturdy piece of packing material under the
Frame (1).
Orient the Front Stabilizer (2) as indicated by the
sticker. Attach the Front Stabilizer to the Frame
(1) with two M10 x 68mm Screws (44).
Then, remove the packing material.
4
4. Orient the Upright (4) as shown.
Tip: Avoid pinching the Main Wire (41).
Attach the Upright (4) to the Frame (1) with four
M8 x 16mm Screws (60); start all the Screws,
and then tighten them.
Next, locate the wire tie (A) in the Upright (4).
Tie the lower end of the wire tie to the Main Wire
(41). Then, pull the upper end of the wire tie until
the Main Wire is routed through the Upright.
Tip: To prevent the Main Wire (41) from falling
into the Upright (4), secure the Main Wire
with the wire tie (A).
Insert the excess Main Wire (41) into the
Upright (4).
4
41
60
1
Avoid pinching the
Main Wire (41)
A
A
To Next Page
