6
2
3
5
1
3

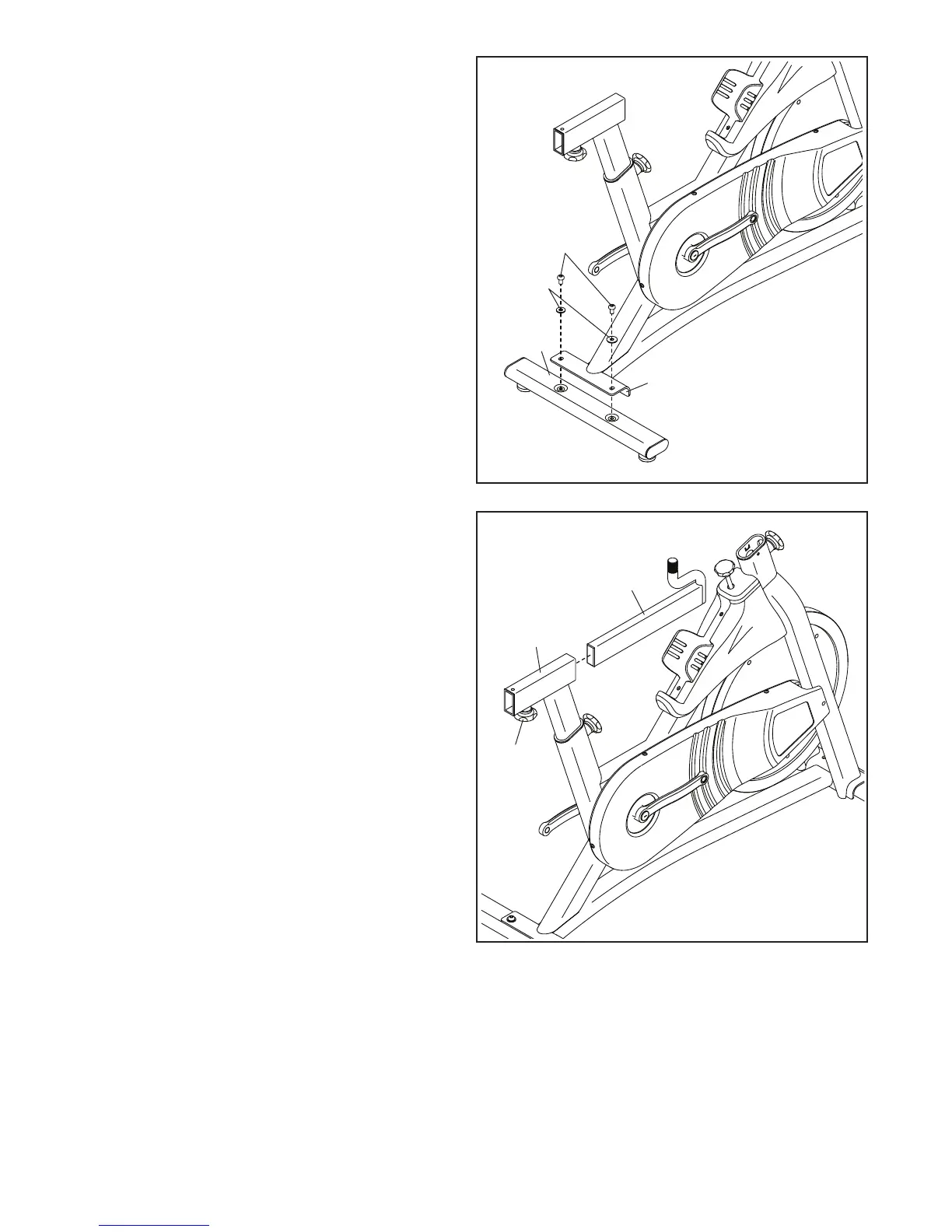

3. Attach the Rear Stabilizer (5) to the Frame (1)
with two M8 x 16mm Screws (2) and two M8
Washers (3).
4. Orient the Saddle Carriage (32) as shown.
Locate the Adjustment Knob (15) on the Saddle
Post (6). Loosen the Adjustment Knob and pull it
downward. Then, insert the Saddle Carriage (32)
into the Saddle Post.
Slide the Saddle Carriage (32) to the desired
position, release the Adjustment Knob (15)
into one of the adjustment holes in the Saddle
Carriage, and then tighten the Adjustment Knob.
Make sure that the Adjustment Knob is firmly
engaged in an adjustment hole.
4
32
15
6
