10
11. Untie and discard the wire tie on the Main
Wire (77).
While a second person holds the Handlebar (14)
near the Upright (4), route the Main Wire (77)
through the notch (B) in the Upright, through the
groove (C) in the Handlebar, and through the
hole (D) in the center of the Handlebar (see the
inset drawing).
Tip: Avoid pinching the Main Wire (77). Insert
the Handlebar (14) into the Upright (4). Attach
the Handlebar with two M8 x 63mm Bolts (26)
and two M8 Locknuts (25). Make sure that the
Locknuts are in the hexagonal holes (E).
14
4
11
10
25
26
77

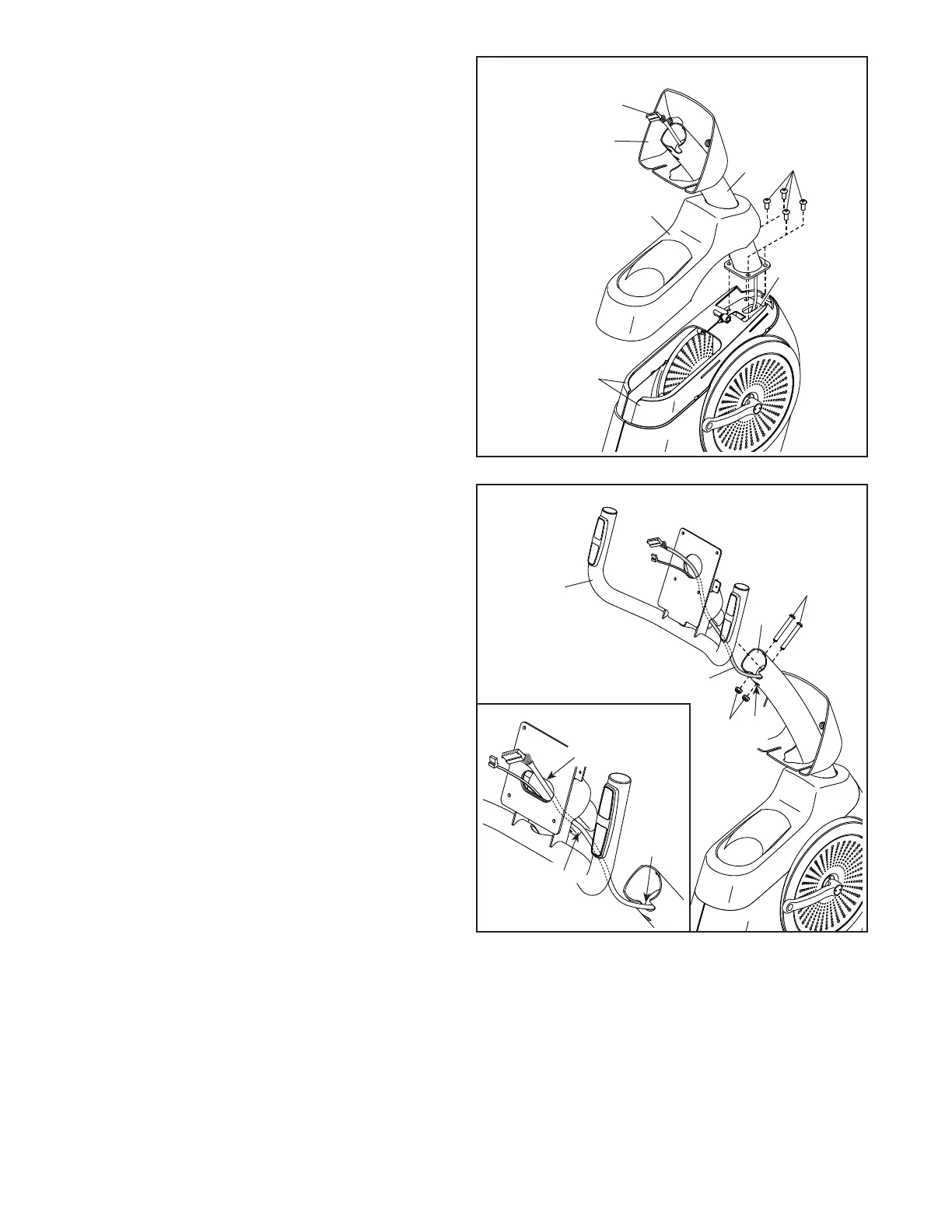

10. Tip: Avoid pinching the Main Wire (77). Hold
the Upright (4) against the Frame (1). Attach the
Upright with four M8 x 15mm Screws (24); start
all the Screws, and then tighten them.
Next, orient the Accessory Tray (5) and the
Console Cover (16) as shown.
Tip: Avoid pinching the Main Wire (77).
Slide the Accessory Tray (5) and the Console
Cover (16) onto the Upright (4). Then, press the
Accessory Tray onto the Left and Right Front
Shields (57, 58).
5
16
77
4
1
24
Avoid
pinching
the Main
Wire (77)
Avoid pinching the
Main Wire (77)
B
D
C
57, 58
E
To Next Page
