Avoid pinching
the wires
13
13. Slide the Console Cover (16) upward against the
Handlebar (14). Attach the Console Cover with
two M4 x 16mm Screws (49).
14
49
16

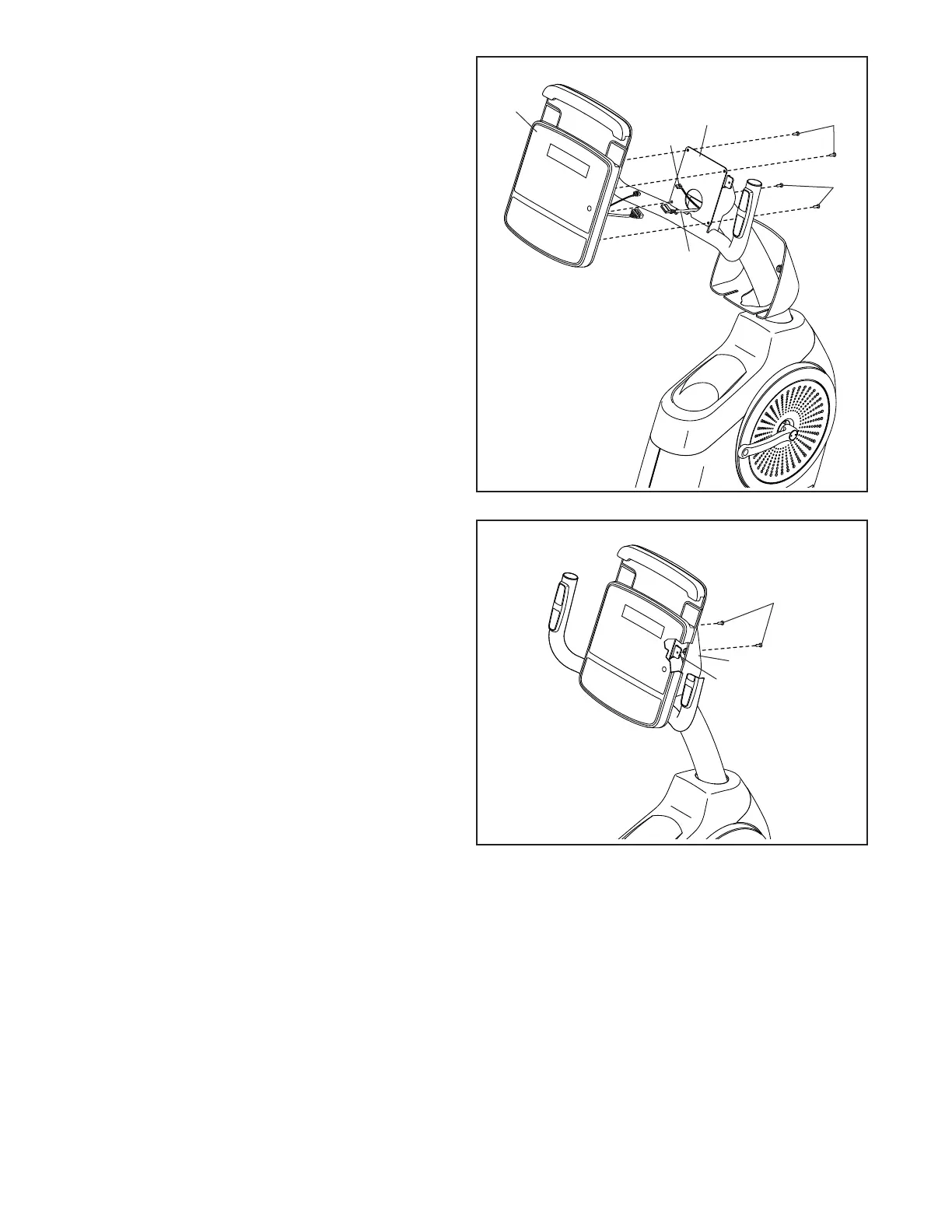

12. While a second person holds the Console (15)
near the Handlebar (14), connect the wires on
the Console to the Main Wire (77) and the Pulse
Wire (50).
Then, insert the excess wire into the
Handlebar (14).
Tip: Avoid pinching the wires. Attach the
Console (15) to the Handlebar (14) with four
M4 x 16mm Screws (49); start all the Screws,
and then tighten them.
To Next Page
