7
4. Identify the Right Handrail (72), which has a large hole in
the left side. Feed the Wire Harness (42) up into the
bracket on the Right Handrail and out of the large hole in
the left side. (Note: It may be helpful to use needlenose
pliers to pull the Wire Harness out of the hole.) Press a
Handrail Cap (76) onto the lower end of the Right
Handrail as shown. Remove any nylon ties from the
bracket.
Insert the bracket on the Right Handrail (72) into the top
of the Right Upright (29) so the Handrail Cap (76) is rest-
ing against the Upright as shown. Attach the Right
Handrail and the Handrail Cap with
three 1” Bolts (37)
and two Washers (38) as shown. Do not tighten the
Bolts yet.
76
72
29
42
38
38
37
37
37
Large
Hole
Bracket
4

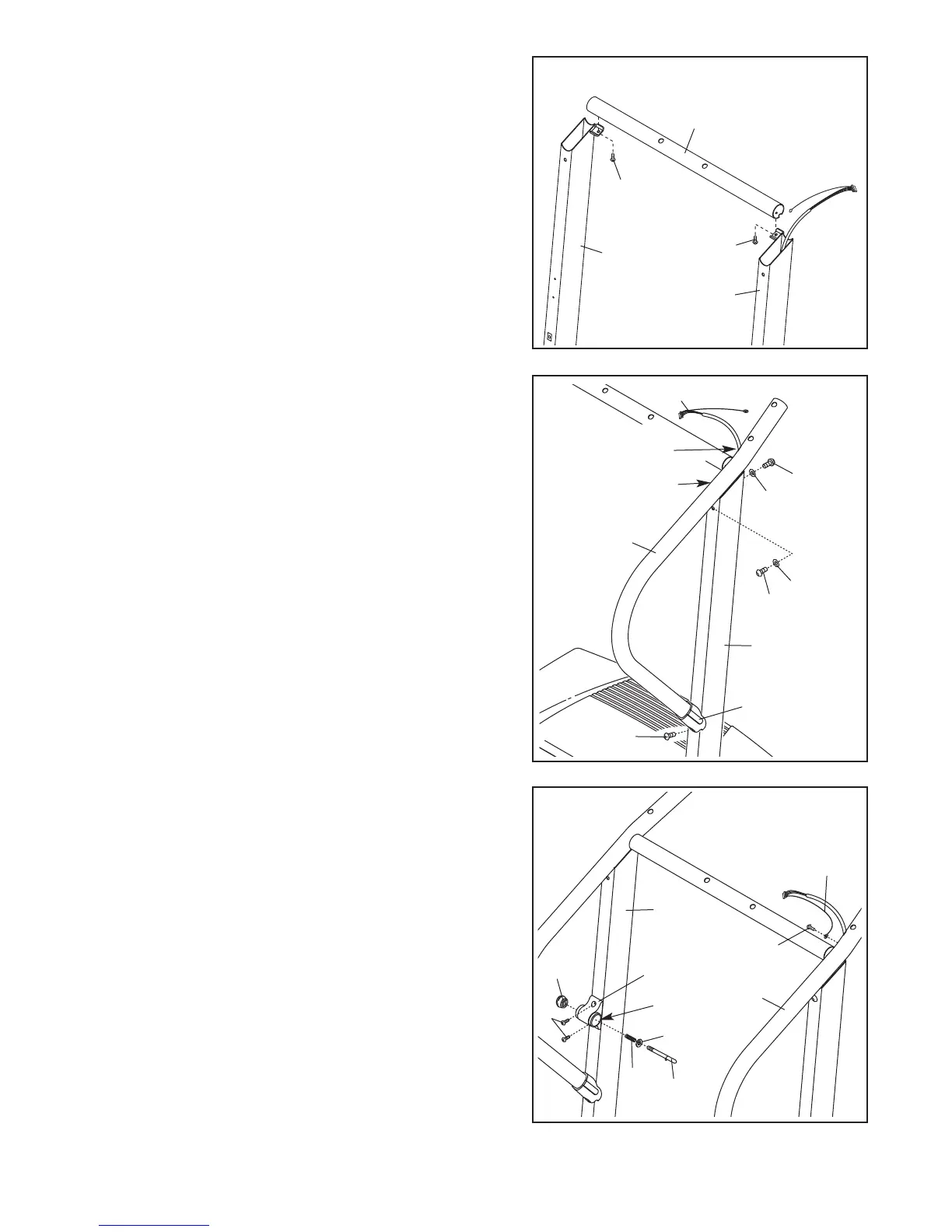

3. With the help of a second person, raise the Uprights (25,
29) to the vertical position.
Open part bag B. Set the Crossbar (40) on the brackets
on the Uprights (25, 29). Attach the Crossbar with two
Crossbar Screws (39). Do not tighten the Crossbar
Screws yet.
29
39
25
39
40
3
5. Open part bag C. Attach the end of the ground wire to
the small hole in the side of the Right Handrail (72) with a
Silver Ground Screw (75).
Attach the Storage Latch (36) to the Left Upright (25)
with two 3/4” Screws (2).
Remove the Latch Knob (30) from the Latch Pin (35).
Make sure that the Latch Pin Collar (33) and the Spring
(32) are on the Latch Pin. Insert the Latch Pin into the
Storage Latch (36), and then tighten the Latch Knob
back onto the Latch Pin.
Attach the left Handrail (not shown) in the same way as
in step 4.
Ground
Wire
72
75
2
5
25
32
36
30
Large
Hole
35
33
To Next Page
