11
14. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex keys
in a secure place. One hex key is used to adjust the walking belt (see page 20). To protect the floor or carpet,
place a mat under the treadmill.

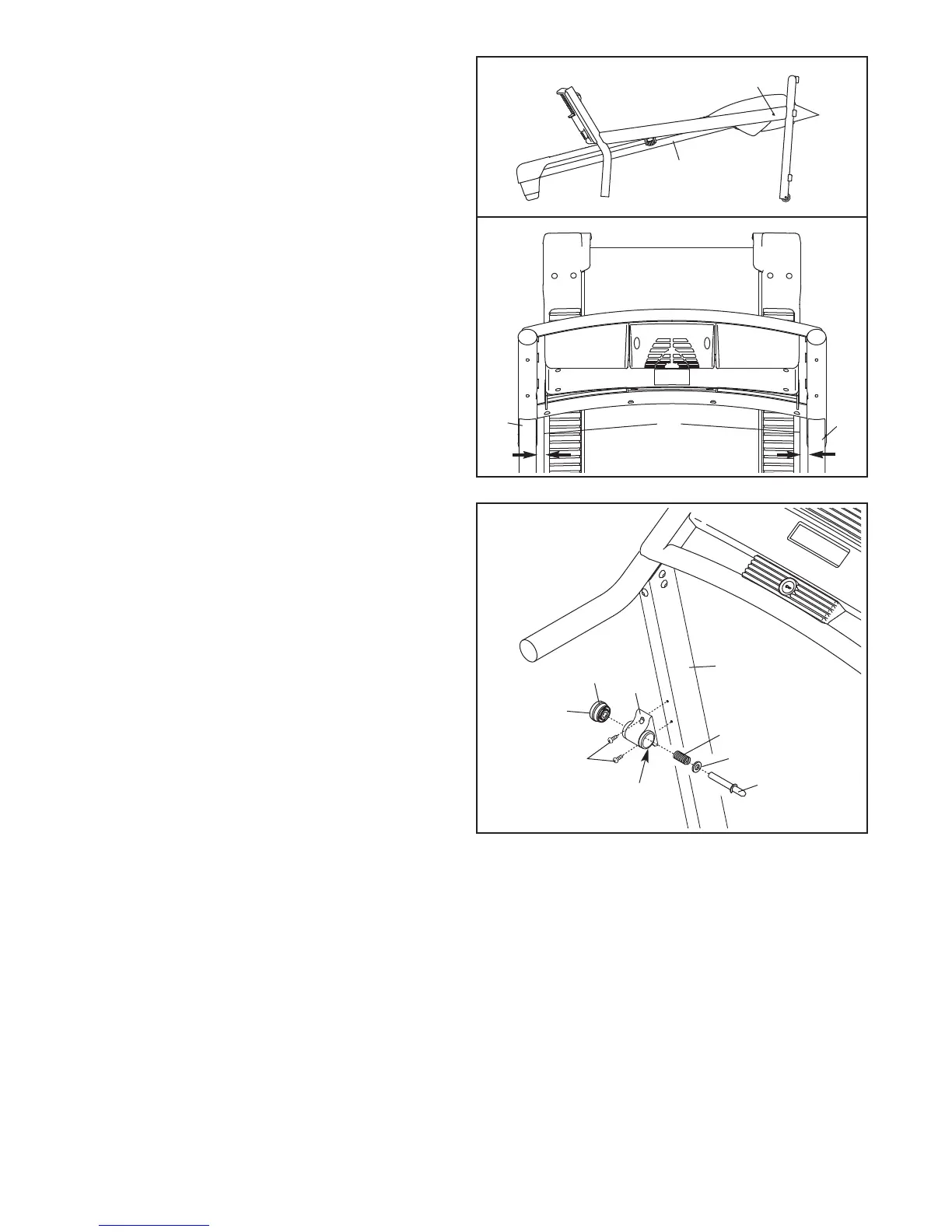

13. Attach the Latch Housing (48) to the Left
Upright (53) with two #10 x 1" Tek Screws (109);
start both Screws, and then tighten each of
them. Make sure that the large hole in the
Latch Housing is on the indicated side.
Locate the Latch Pin Assembly (24). Remove
the knob from the pin. Make sure that the collar
and the spring are on the pin. (Note: If there are
two collars, place one on each side of the
spring.) Insert the pin into the Latch Housing
(48). Then, tighten the knob onto the pin.
109
Pin
Spring
Collar
Knob
48
53
Large Hole
13
12. See the lower drawing. Position the Uprights
(53, 54) so that the Frame (51) is centered be-
tween them.
See the upper drawing. Firmly tighten the two
M
10 x 60mm Bolts (1) and the four M10 x
75mm Bolts (2). Be careful not to overtighten
the M10 x 60mm Bolts.
1
2
2
51
1
53
51
54
Top View
24
To Next Page
