6
ASSEMBLY
T
o hire an authorized service technician to assemble the treadmill, call 1-800-445-2480. Assembly re-
quires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the
packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with
high-performance lubricant. During shipping, some lubricant may be transferred to the top of the walking belt or
t
he shipping carton. This is normal. If there is lubricant on top of the walking belt, simply wipe off the lubricant with
a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver ,
adjustable wrench , scissors , needlenose pliers , and rubber mallet .

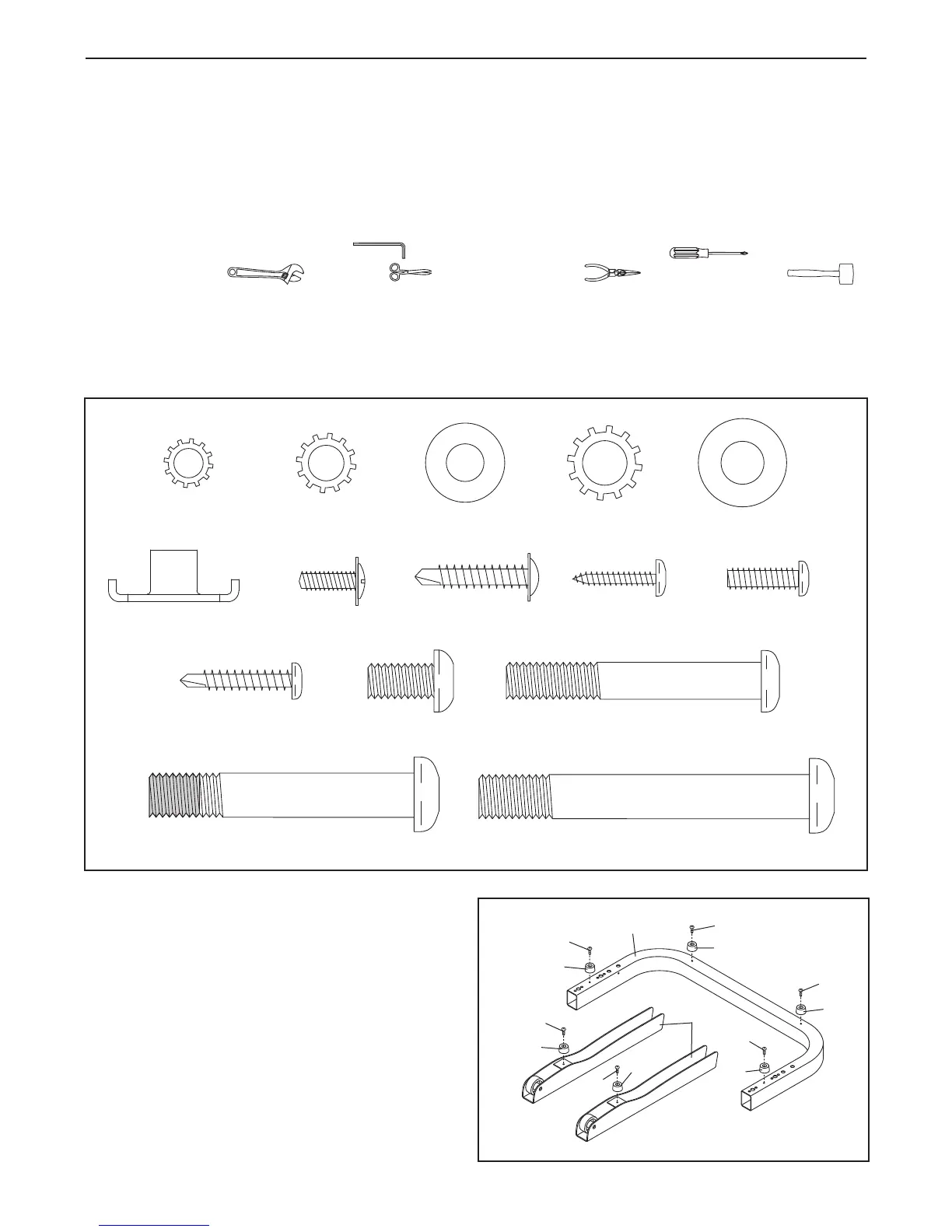

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached to
one of the parts to be assembled. To avoid damaging parts, do not use power tools for assembly. Extra
hardware may be included.
M10 Flat Washer
(14)–2
M8 x 15mm
Bolt (8)–6
M10 Star
Washer (9)–6
M8 Star
Washer (5)–6
M4.2 x 19mm
Screw (10)–4
M5 Star
Washer (7)–2
M10 x 75mm Bolt (2)–4
M10 x 60mm Bolt (1)–2
M5 x 16mm
Screw (85)–2
M4 x 10mm
Screw (84)–1
M8.5 Washer
(32)–4
Extension Leg Nut
(43)–4
M8 x 58mm Bolt (13)–4
#8 x 1" Tek Screw
(26)–6
#10 x 1" Tek Screw
(109)–2
1. Make sure that the power cord is unplugged.
Position the Base (52) and the two Extension
Legs (45) upside-down as shown.
Attach six Base Pads (63) to the Base (52) and
the Extension Legs (45) with six #8 x 1" Tek
Screws (26).
1
52
26
26
63
63
63
26
63
26
63
26
63
26
45
To Next Page
