ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not
dispose of the packing materials until assembly is completed. Note: The underside of the walking belt is coated
with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the
walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there
is lubricant on top of the walking belt, wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver , rubber
mallet , and an adjustable wrench .

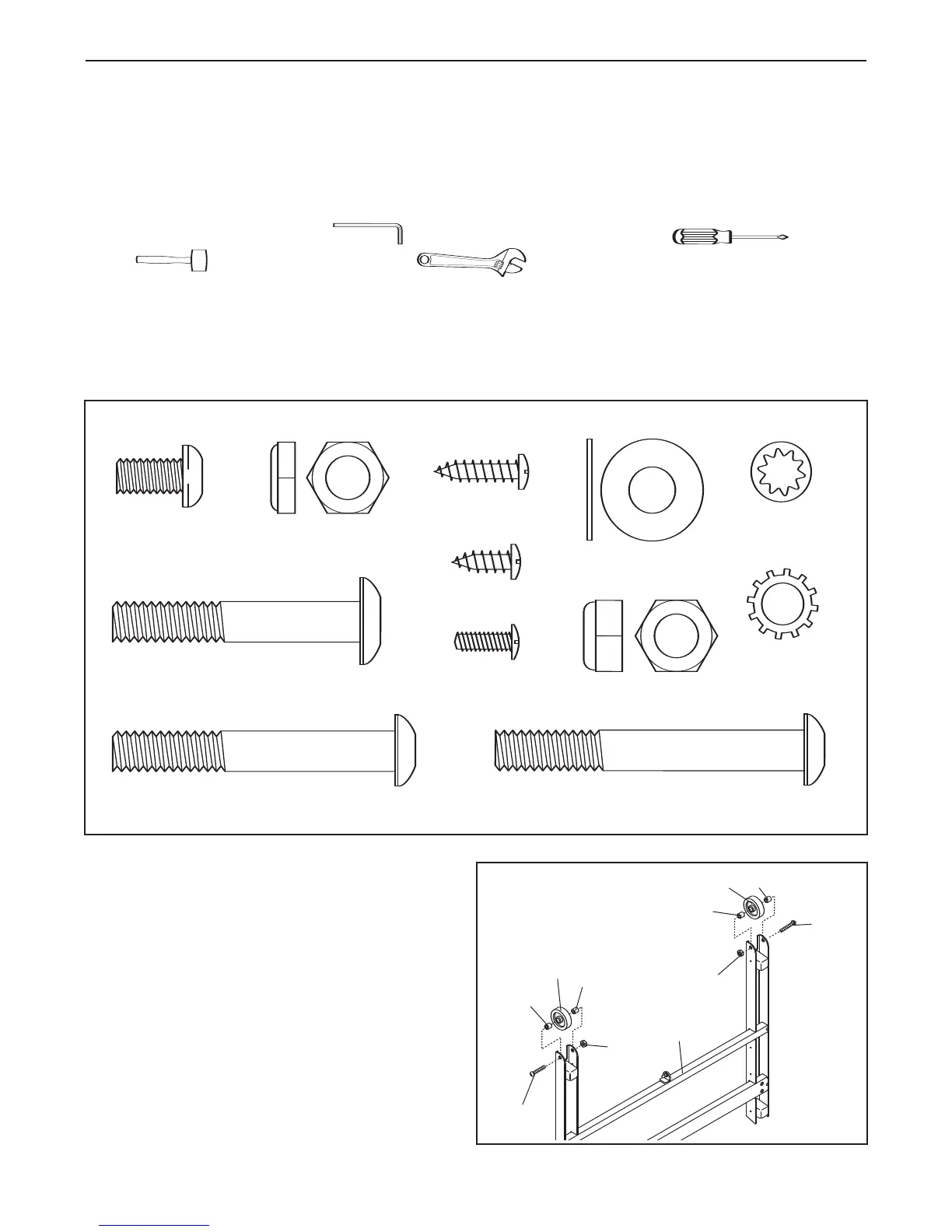

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST in the center of this manual. The number after the parentheses is
the quantity needed for assembly.
Note: If a part is not in the parts bag, check to see if it is preattached to
one of the parts to be assembled. Extra hardware may be included. To avoid damaging plastic parts, do
not use power tools for assembly.
1/2" Screw (6)–8
3/4” Tek Screw (58)–8
1
Nut (47)–2
3/4" Screw (2)–8
Upright Washer
(33)–2
Silver Ground
Screw (27)–2
Wheel Spacer
(44)–4
1/4” Star Washer
(
H
W
Upright Star
Washer (39)–4
Latch Screw
(XXX)–2
3/8" Nut (91)–2
Handrail Star
Washer (19)–4
Handrail Bolt
(20)–4
Handrail Bolt (20)–4
Upright Bolt (40)–4
Wheel Bolt (89)–2
Frame Bolt (32)–2
5
Endcap Screw
(95)–2
Handrail Bolt (20)–4
6
1. Make sure that the power cord is unplugged.
Attach a Wheel (45) to each side of the Base
(48) with a Wheel Bolt (89), two Wheel Spacers
(44), and a 3/8" Nut (91) as shown. Do not
overtighten the Wheel Bolts; the Wheels
should turn freely.
48
89
91
89
1
91
45
45
44
44
44
44
