Pro-Form 475 Audio Series User Manual

8

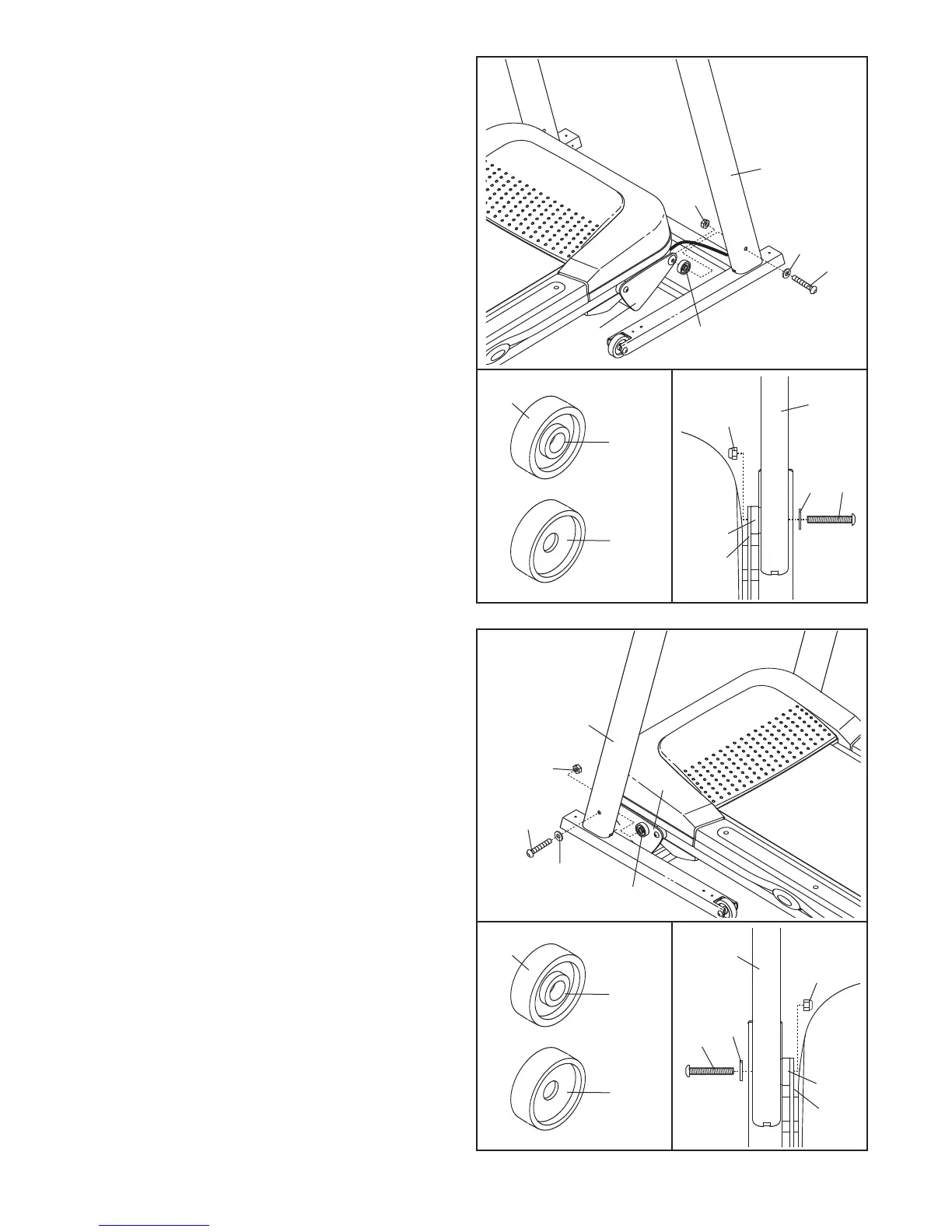

5. See the left inset drawing. Identify the two
Frame Spacers (34). Open the included packet
o
f grease, and apply grease to both sides of
both Frame Spacers. Then, identify the outer
s
ide of each Frame Spacer.
Hold a Frame Spacer (34) between the Right
Upright (36) and the Lift Frame (59), with the
outer side of the Frame Spacer facing the
Right Upright. Attach the Right Upright to the
Lift Frame with a Frame Bolt (32), an Upright
Washer (33), and a Nut (47);
do not tighten the
Nut yet.
5
36
32
32
34
34
33
47
4
7
59
33
59
Outer
Side
Inner
Side
34
36
6. See the left inset drawing. Identify the outer
side of the remaining Frame Spacer (34).
Hold the Frame Spacer (34) between the Left
Upright (31) and the Lift Frame (59), with the
outer side of the Frame Spacer facing the
Left Upright. Attach the Left Upright to the Lift
Frame with a Frame Bolt (32), an Upright
Washer (33), and a Nut (47); do not tighten the
Nut yet.
6
31
32
32
34
34
33
47
47
59
33
59
Outer
Side
Inner
Side
34
31
