8
2
9
3
32
A
B
5
6
1
1
3

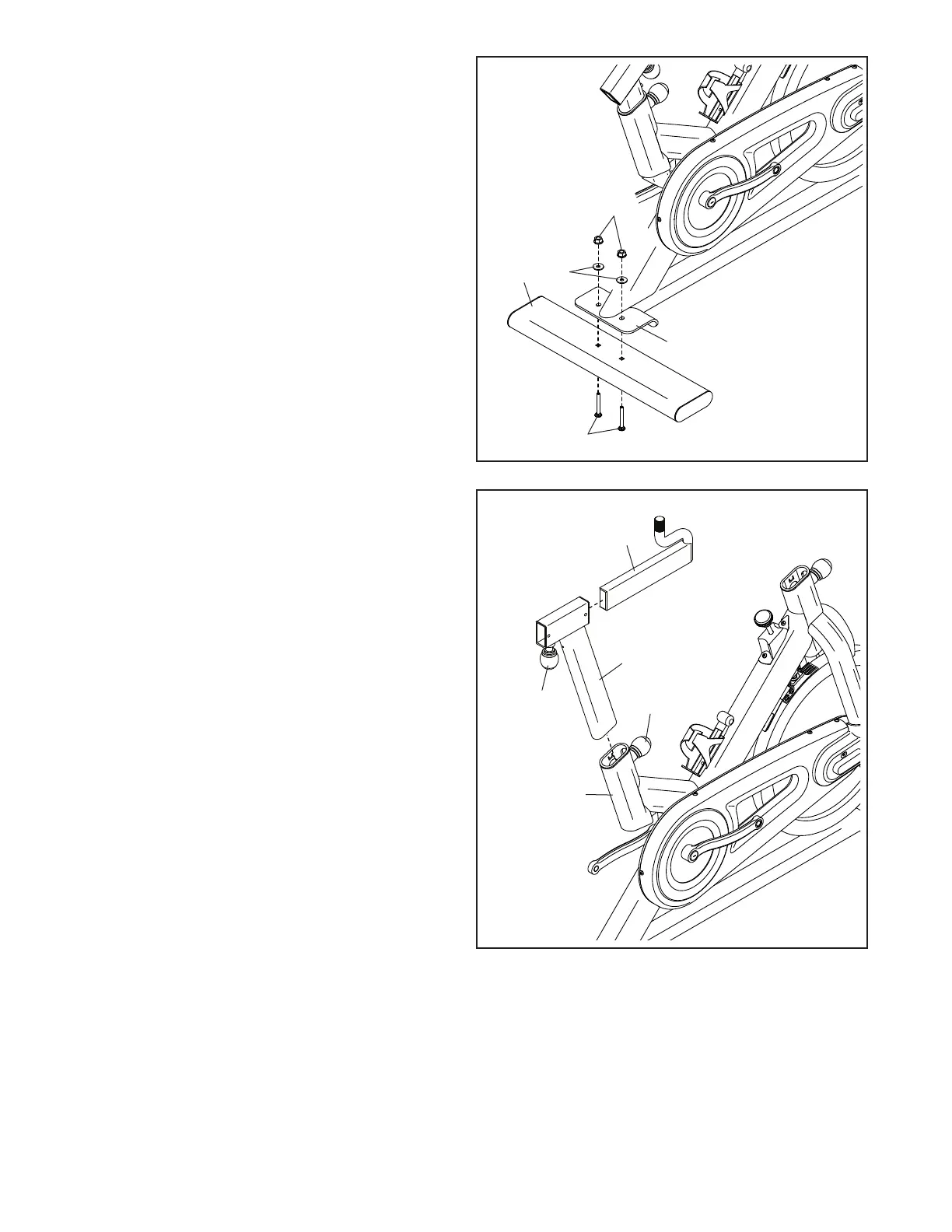

3. Attach the Rear Stabilizer (5) to the Frame (1)
with two M8 x 55mm Carriage Bolts (9), two M8
Washers (3), and two M8 Flange Nuts (2).
4
4. Locate the Adjustment Knob (A) on the rear of
the Frame (1). Loosen the Adjustment Knob,
pull it outward, remove the Saddle Post (6), and
release the Adjustment Knob.
Orient the Saddle Post (6) as shown. Next, pull
the Adjustment Knob (A) outward, insert the
Saddle Post into the Frame (1), move it upward
or downward to the desired position, and then
release the Adjustment Knob into an adjustment
hole in the Saddle Post. Tighten the Adjustment
Knob. Make sure that the Adjustment Knob is
firmly engaged in an adjustment hole.
Orient the Saddle Carriage (32) as shown. Next,
locate the Adjustment Knob (B) on the Saddle
Post (6). Then, loosen the Adjustment Knob, pull
it downward, insert the Saddle Carriage into the
Saddle Post, move it to the desired position, and
then release the Adjustment Knob into an adjust-
ment hole in the Saddle Carriage. Tighten the
Adjustment Knob.
