13
14. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plas-
tic on the treadmill decals, remove the plastic. To protect the oor or carpet, place a mat under the treadmill.
Note: Extra hardware may be included. Keep the included hex keys in a secure place; one of the hex keys is
used to adjust the walking belt (see pages 22 and 23).

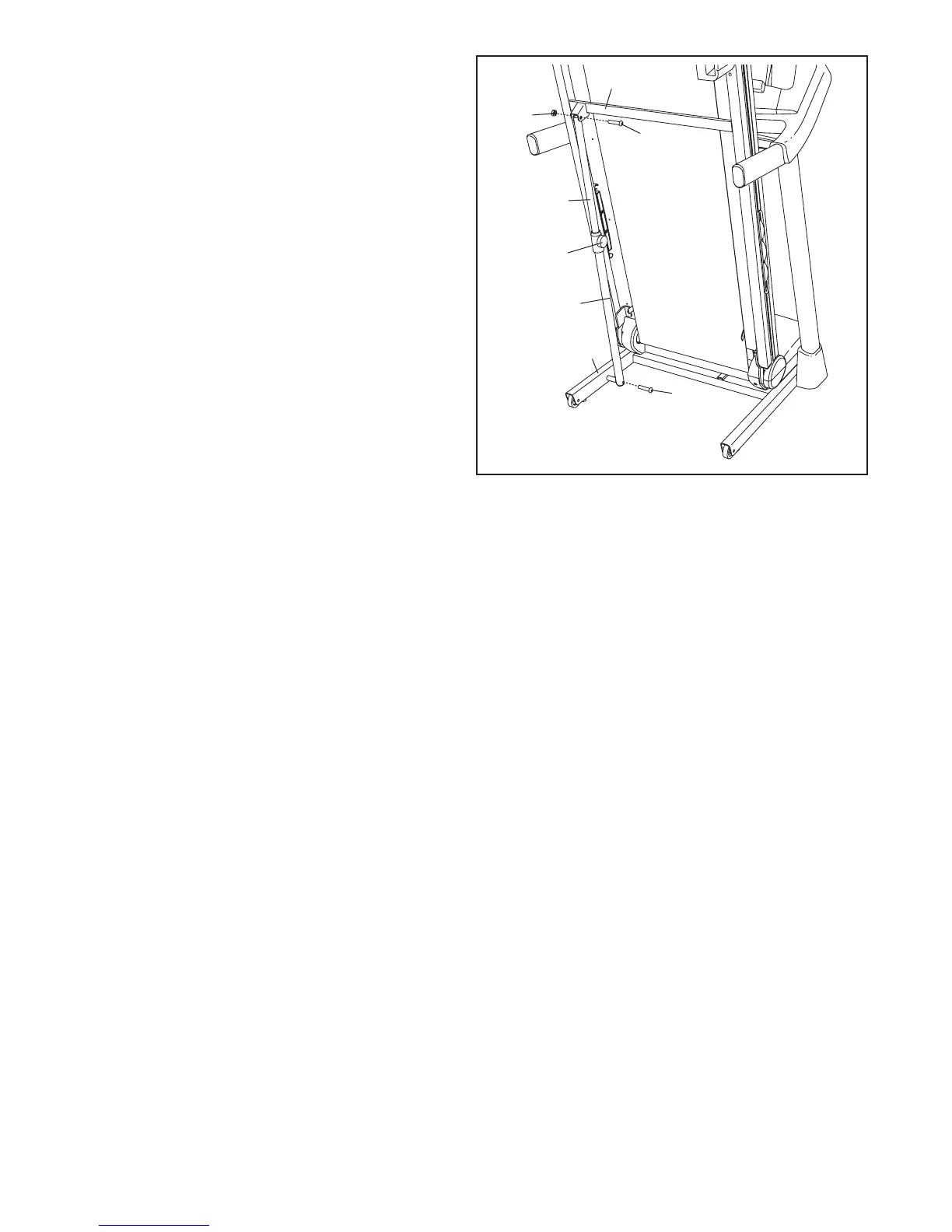

13. Raise the Frame (55) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (51) so that the large
barrel and the latch knob are oriented as shown.
Attach the lower end of the Storage Latch (51) to
the Base (95) with a 3/8" x 1 3/4" Screw (6).
Attach the upper end of the Storage Latch (51)
to the bracket on the Frame (55) with a 3/8" x
2" Bolt (8) and a 3/8" Nut (10). Note: It may be
necessary to move the Frame (55) back and
forth to align the Storage Latch with the Frame.
Lower the Frame (55) (see HOW TO LOWER
THE TREADMILL FOR USE on page 20).
51
95
10
Large
Barrel
6
55
13
8
Latch
Knob
