12. Set the console assembly on the Left Handrail
(82) and the Right Handrail (83). Be careful not
to pinch any wires. Insert the excess Upright
Wire (not shown) into the Right Handrail.
Attach the console assembly with six #8 x 3/4"
Screws (1) and four 1/4" x 1/2" Screws (9)
with four 1/4" Star Washers (12). Start all ten
Screws, and then tighten them.
See steps 4 and 6. Fully tighten the four 3/8" x
4" Screws (7) and the two 3/8" x 1 1/2" Screws
(14).
See step 8. Fully tighten the six 5/16" x 1" Bolts
(4).
12
82
1
12
Console
Assembly
1
83
12
9
1
9

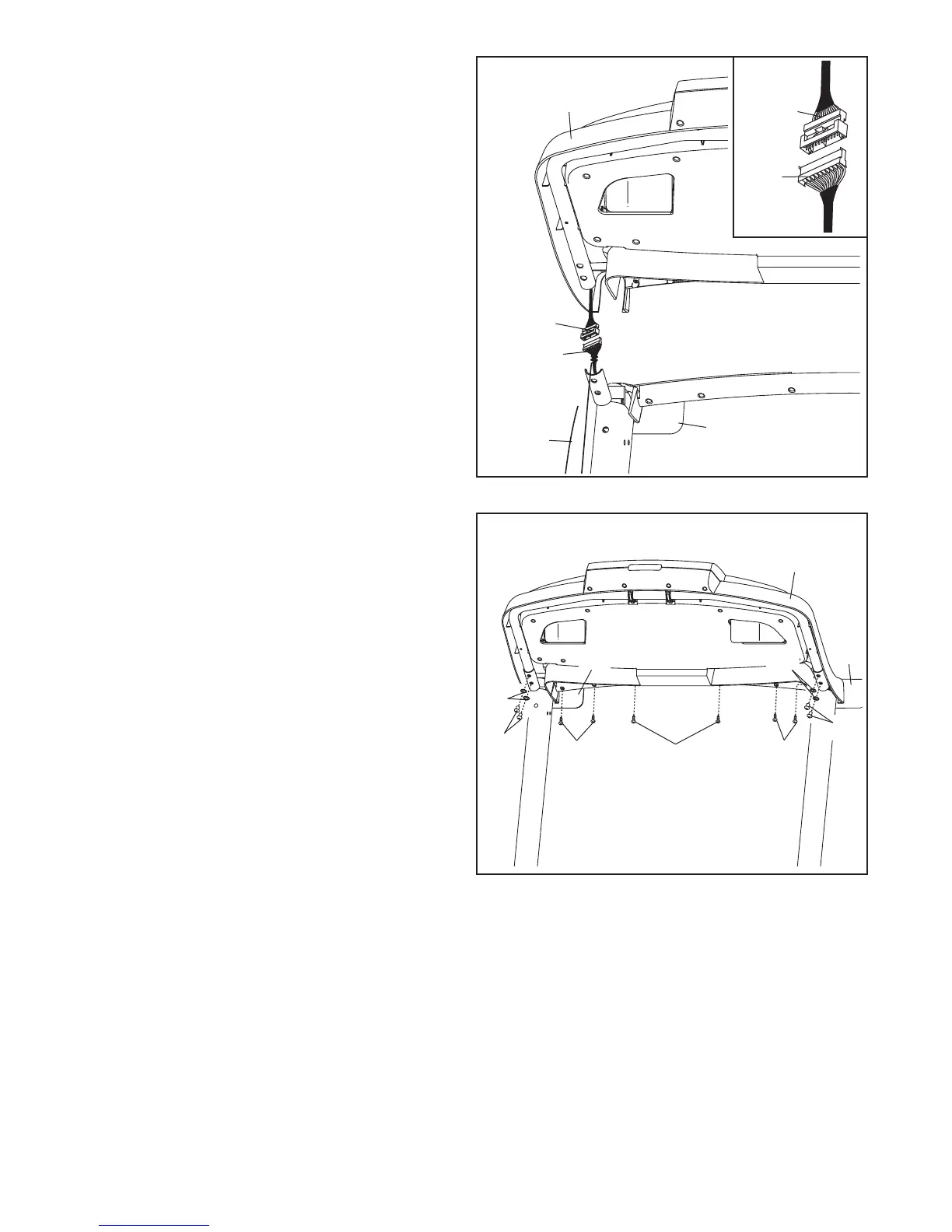

11. With the help of a second person, hold the con-
sole assembly near the Right Handrail (83).
Connect the Upright Wire (87) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Then, remove the wire tie from
the Upright Wire.
Console
Assembly
11
Console
Wire
Wire
Tie
87
83
87
Console
Wire
To Next Page
