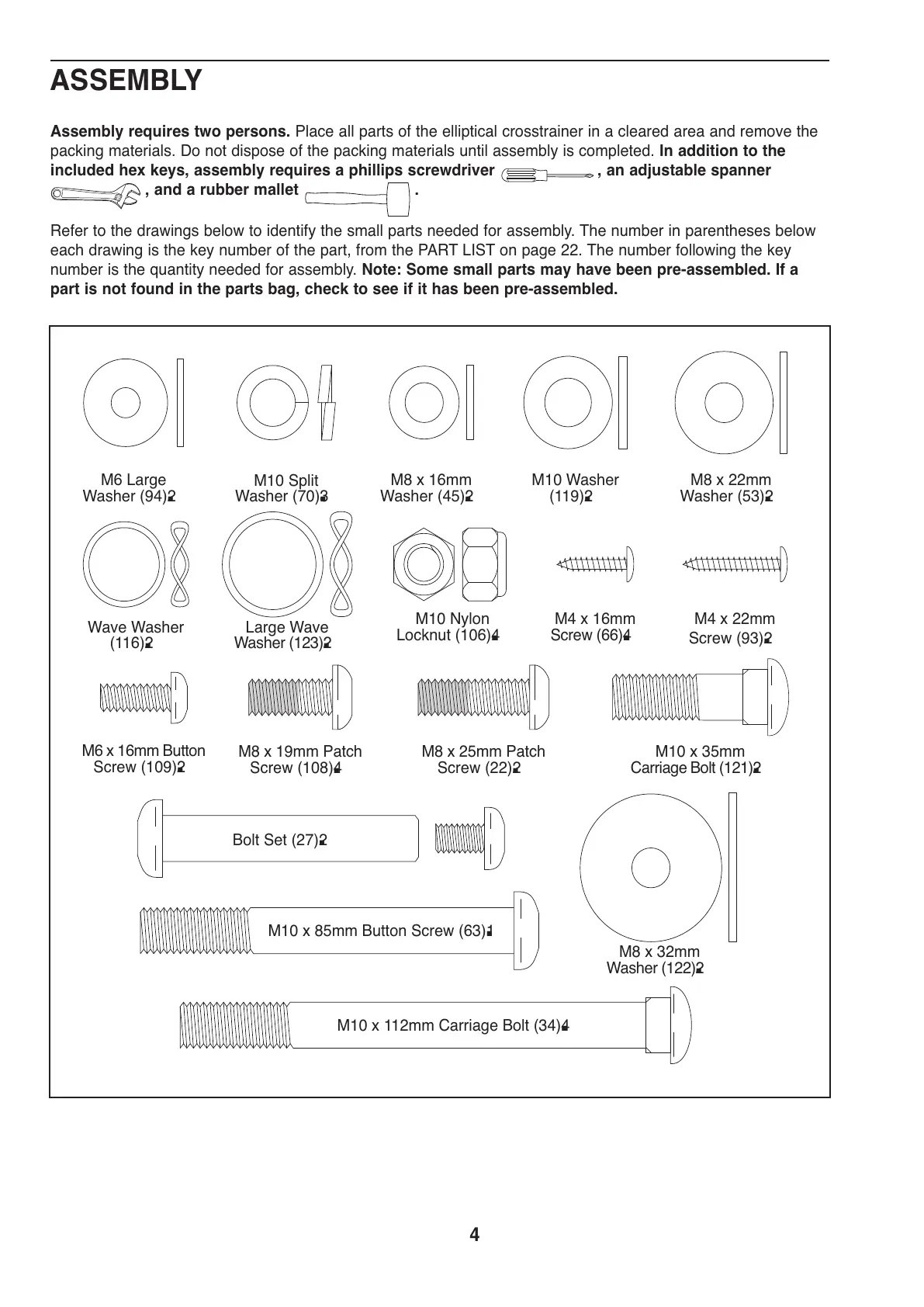

ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included hex keys, assembly requires a phillips screwdriver , an adjustable spanner
,
and a rubber mallet .
Refer to the drawings below to identify the small parts needed for assembly. The number in parentheses below
each drawing is the key number of the part, from the PART LIST on page 22. The number following the key
number is the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a
part is not found in the parts bag, check to see if it has been pre-assembled.
