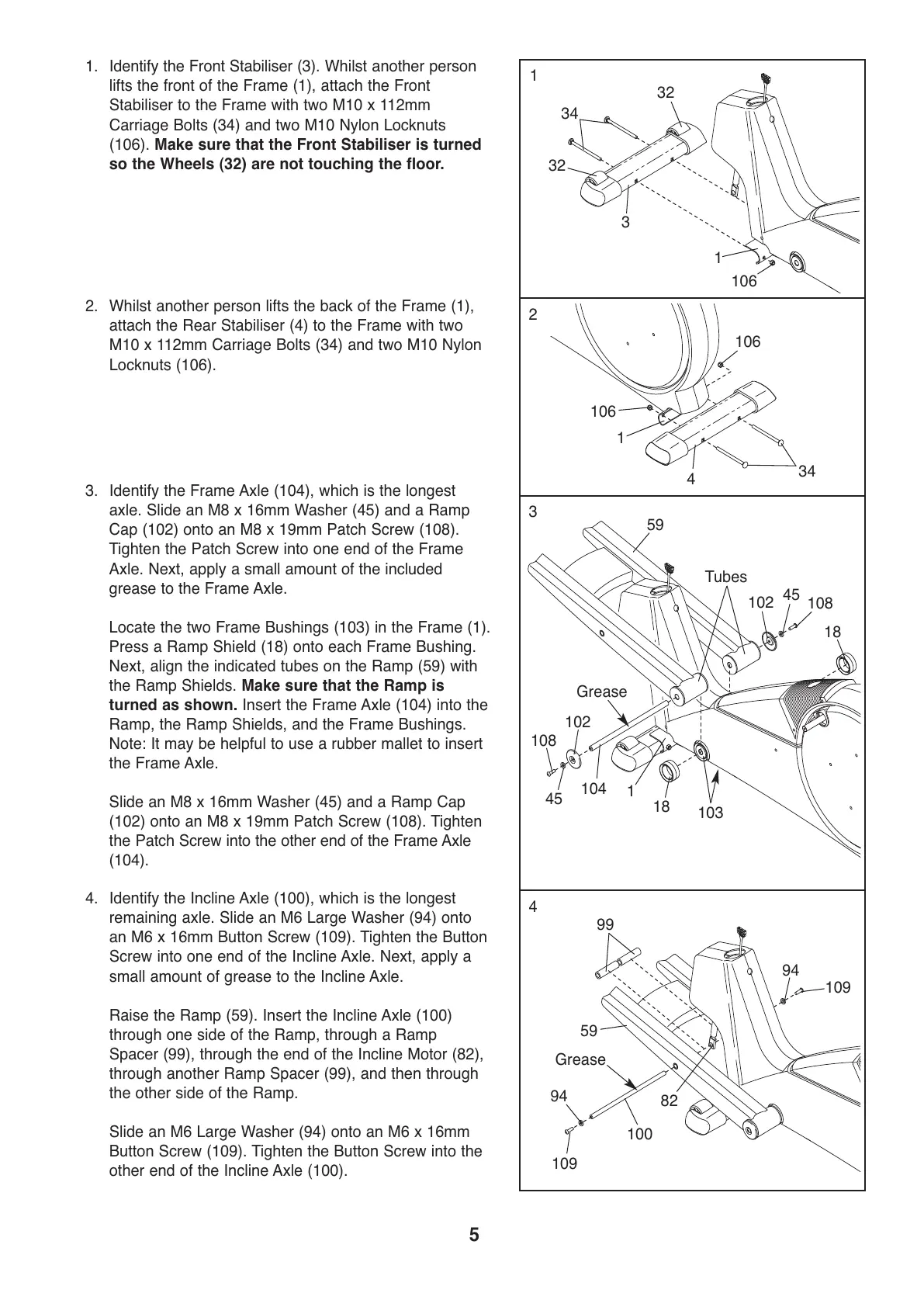

5
2. Whilst another person lifts the back of the Frame (1),
attach the Rear Stabiliser (4) to the Frame with two
M10 x 112mm Carriage Bolts (34) and two M10 Nylon
Locknuts (106).
34
4
1
3
59
108
18
45
102
104
Grease
Tubes
103
108
45
102
18
1
3. Identify the Frame Axle (104), which is the longest
axle. Slide an M8 x 16mm Washer (45) and a Ramp
Cap (102) onto an M8 x 19mm Patch Screw (108).
Tighten the Patch Screw into one end of the Frame
Axle. Next, apply a small amount of the included
grease to the Frame Axle.
Locate the two Frame Bushings (103) in the Frame (1).
Press a Ramp Shield (18) onto each Frame Bushing.
Next, align the indicated tubes on the Ramp (59) with
the Ramp Shields. Make sure that the Ramp is
turned as shown. Insert the Frame Axle (104) into the
Ramp, the Ramp Shields, and the Frame Bushings.
Note: It may be helpful to use a rubber mallet to insert
the Frame Axle.
Slide an M8 x 16mm Washer (45) and a Ramp Cap
(102) onto an M8 x 19mm Patch Screw (108). Tighten
the Patch Screw into the other end of the Frame Axle
(104).
2
106
106
4. Identify the Incline Axle (100), which is the longest
remaining axle. Slide an M6 Large Washer (94) onto
an M6 x 16mm Button Screw (109). Tighten the Button
Screw into one end of the Incline Axle. Next, apply a
small amount of grease to the Incline Axle.
Raise the Ramp (59). Insert the Incline Axle (100)
through one side of the Ramp, through a Ramp
Spacer (99), through the end of the Incline Motor (82),
through another Ramp Spacer (99), and then through
the other side of the Ramp.
Slide an M6 Large Washer (94) onto an M6 x 16mm
Button Screw (109). Tighten the Button Screw into the
other end of the Incline Axle (100).
99
59
94
109
100
82
94
109
4
1. Identify the Front Stabiliser (3). Whilst another person
lifts the front of the Frame (1), attach the Front
Stabiliser to the Frame with two M10 x 112mm
C
arriage Bolts (34) and two M10 Nylon Locknuts
(106). Make sure that the Front Stabiliser is turned
s
o the Wheels (32) are not touching the floor.
3
106
32
32
34
1
1
Grease
