5
M4 x 16mm
Screw (80)–4
M10 x 120mm Patch Screw (58)–2
M8 Hex Nylon
Locknut (77)–4
M8 x 19mm Patch
Screw (65)–4
M6 x 18mm Patch
Screw (57)–6
M10 x 27mm Patch
Screw (64)–4
M6 x 14mm
Flat Head
Screw (55)–1
M10 x 15mm Patch
Screw (71)–2
M10 x 22mm x
1.5mm Washer
(63)–2
Barrel Nut (56)–1
#8 x 1/2"
Screw (79)–6
#
#8 x 2"
Screw (68)–4
M8 x 55mm Patch
Bolt (61)–4
ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
A
ssembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included hex keys and your own Phillips screwdriver , adjustable
wrench , and rubber mallet .

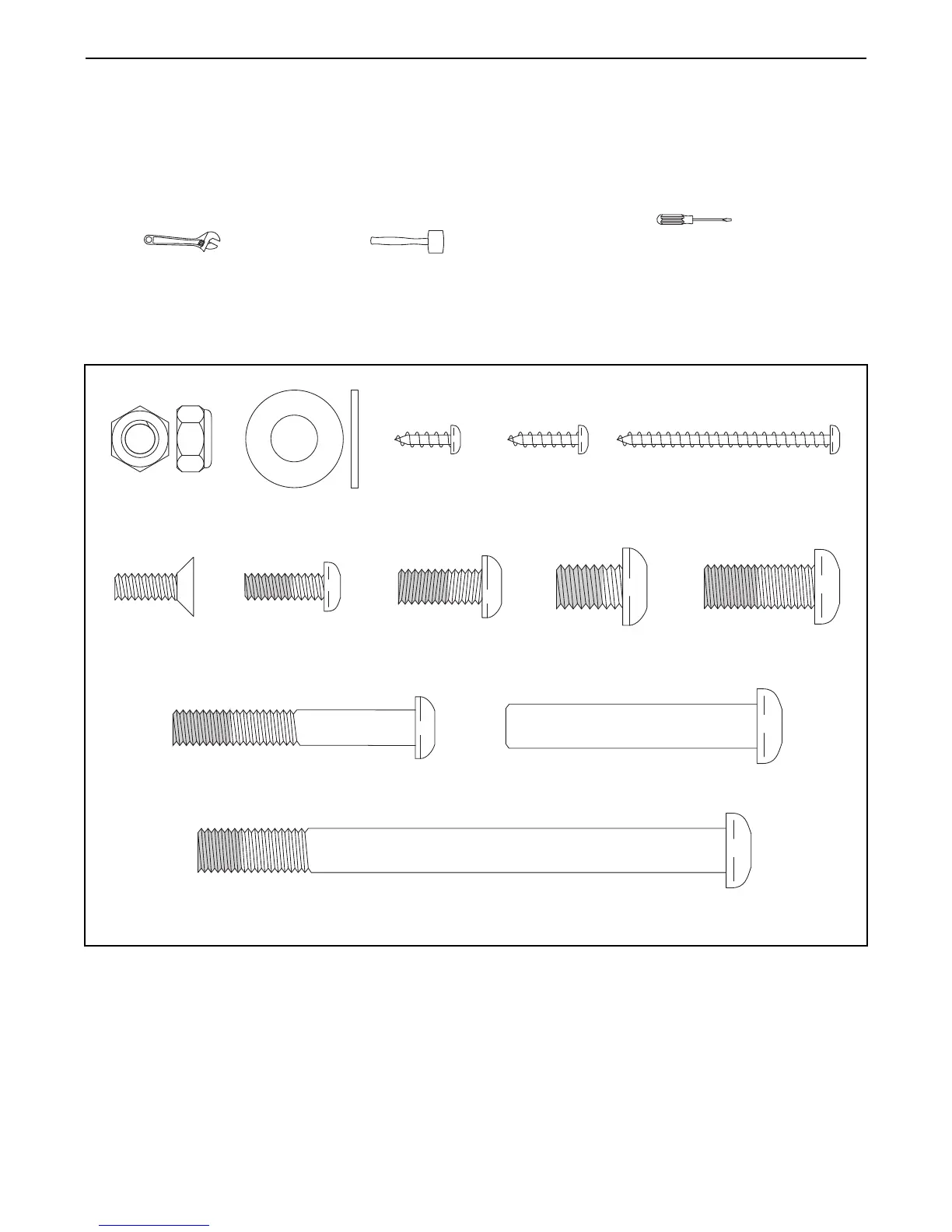

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
