9

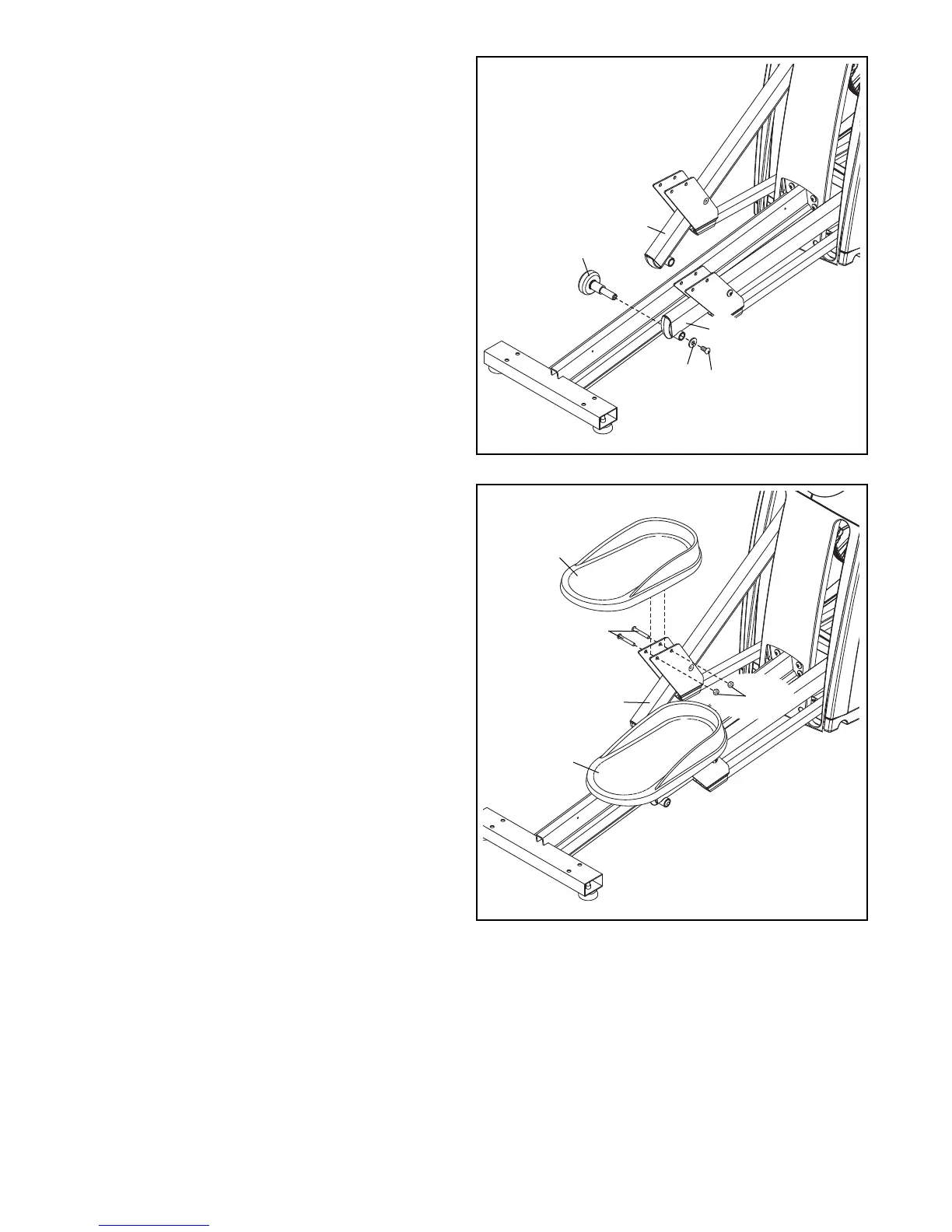

8. Orient a Pedal (26) as shown. Attach the Pedal
to the bracket on the Left Pedal Leg (24) with
two M8 x 55mm Patch Bolts (61) and two M8
Hex Nylon Locknuts (77).
Repeat this step to attach the other Pedal
(26).
8
25
71
63
27
7
7. Insert the axle of a Roller (27) through the right
Link Arm (25); make sure that the Roller is on
the inner side of the Link Arm. Attach the
R
oller with an M10 x 15mm Patch Screw (71)
and an M10 x 22mm x 1.5mm Washer (63). Tip:
U
se a wrench to hold the axle of the Roller
firmly in place while you tighten the Patch
Screw into the axle.
Repeat this step to attach the other Roller
(27) to the left Link Arm (25).
24
77
61
26
26
25
