16

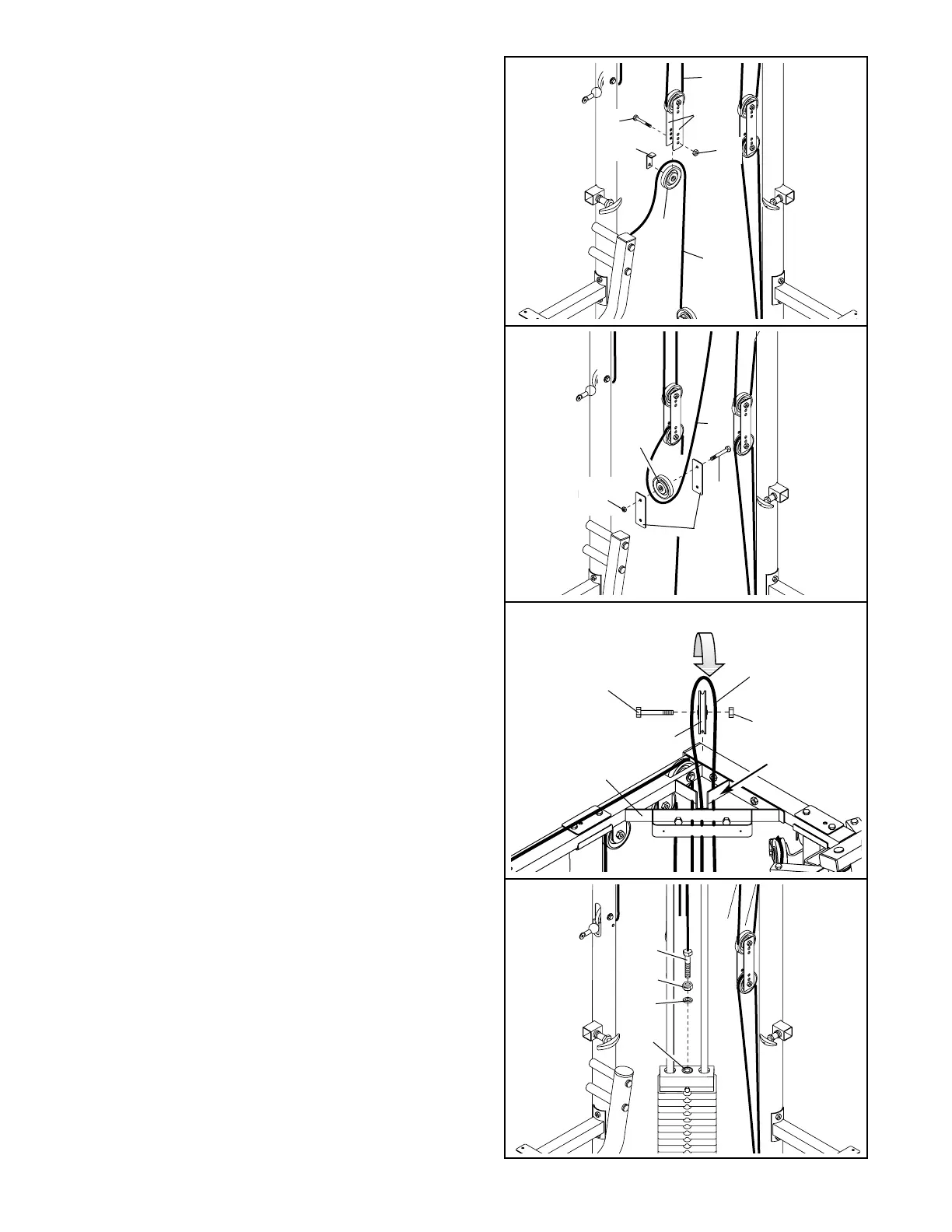

38. Wrap the Weight Cable (72) around a 3 1/2” Pulley
(24). Attach the 3 1/2” Pulley and a Cable Trap (25)
between the lowest holes in the Adjustable Pulley
Plates (23) hanging from the Ab Cable (47) with a
3/8” x 2” Bolt (54) and a 3/8” Nylon Locknut (50).
Be sure that the Cable Trap is turned to hold the
Cable in place.
39. Remove the preassembled 3/8” x 1 3/4” Bolts (57)
from the Small Pulley Plates (22).
Wrap the Weight Cable (72) around a 3 1/2” Pulley
(24). Attach the 3 1/2” Pulley between two Small
Pulley Plates (22) with a 3/8” x 1 3/4” Bolt (57) and
a 3/8” Nylon Locknut (50).
40. Wrap the Weight Cable (72) around a 4 1/2” Pulley
(82) in the direction shown. Attach the 4 1/2” Pulley
to the bracket on the Press Top Frame (9) with a
3/8” x 2” Bolt (54) and a 3/8” Nylon Locknut (50).
41. Place a 1/2” Flat Washer (11) on top of the Weight
Tube (17).
Thread a 1/2” Plain Nut (100) halfway onto the bolt
on the Weight Cable (72). Screw the bolt on the
Weight Cable into the Weight Tube (17) a couple of
turns.
Tighten the 1/2” Plain Nut (100) down onto the 1/2”
Flat Washer (11).
38
39
40
23
50
47
72
22
54
24
82
54
24
50
57
72
9
72
17
100
11
41
50
Bracket
72
25
To Next Page
