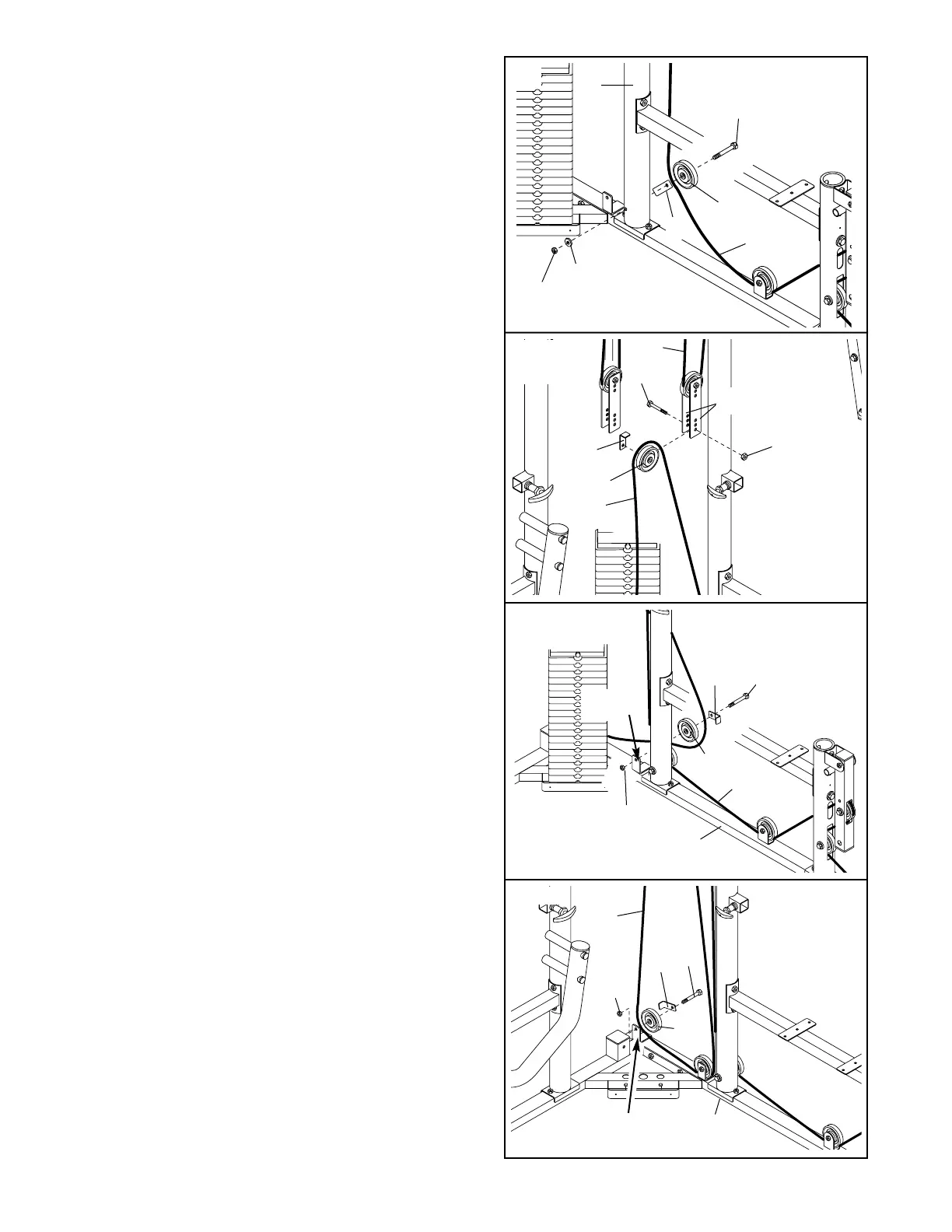

34. Wrap the Weight Cable (72) around a 3 1/2” Pulley
(24). Attach the 3 1/2” Pulley and a Cable Trap (25)
to the Butterfly Upright (1) with a 3/8” x 4 3/4” Bolt
(60), a 3/8” Flat Washer (48), and a 3/8” Nylon
Jamnut (63). Be sure that the Cable Trap is
turned to hold the Cable in place.
35. Wrap the Weight Cable (72) around a 3 1/2” Pulley
(24). Attach the 3 1/2” Pulley and a Cable Trap (25)
between the lowest holes of the Adjustable Pulley
Plates (23) hanging from the Butterfly Cable (73)
with a 3/8” x 2” Bolt (54) and a 3/8” Nylon Locknut
(50). Be sure that the Cable Trap is turned to
hold the Cable in place.
36. Wrap the Weight Cable (72) around a 3 1/2” Pulley
(24). Attach the 3 1/2” Pulley and a Cable Trap (25)
to the bracket on the Butterfly Base (4) with a 3/8” x
1 3/4” Bolt (57) and a 3/8” Nylon Jamnut (63). Be
sure that the Cable Trap is turned to hold the
Cable in place.
37. Note: For convenience, the weights assembled
in step 8 are not shown in the following draw-
ings.
Wrap the Weight Cable (72) around a 3 1/2” Pulley
(24). Attach the 3 1/2” Pulley and a Cable Trap (25)
to the bracket on the Butterfly Base (4) with a 3/8” x
1 3/4” Bolt (57) and a 3/8” Nylon Jamnut (63). Be
sure that the Cable Trap is turned to hold the
Cable in place.
