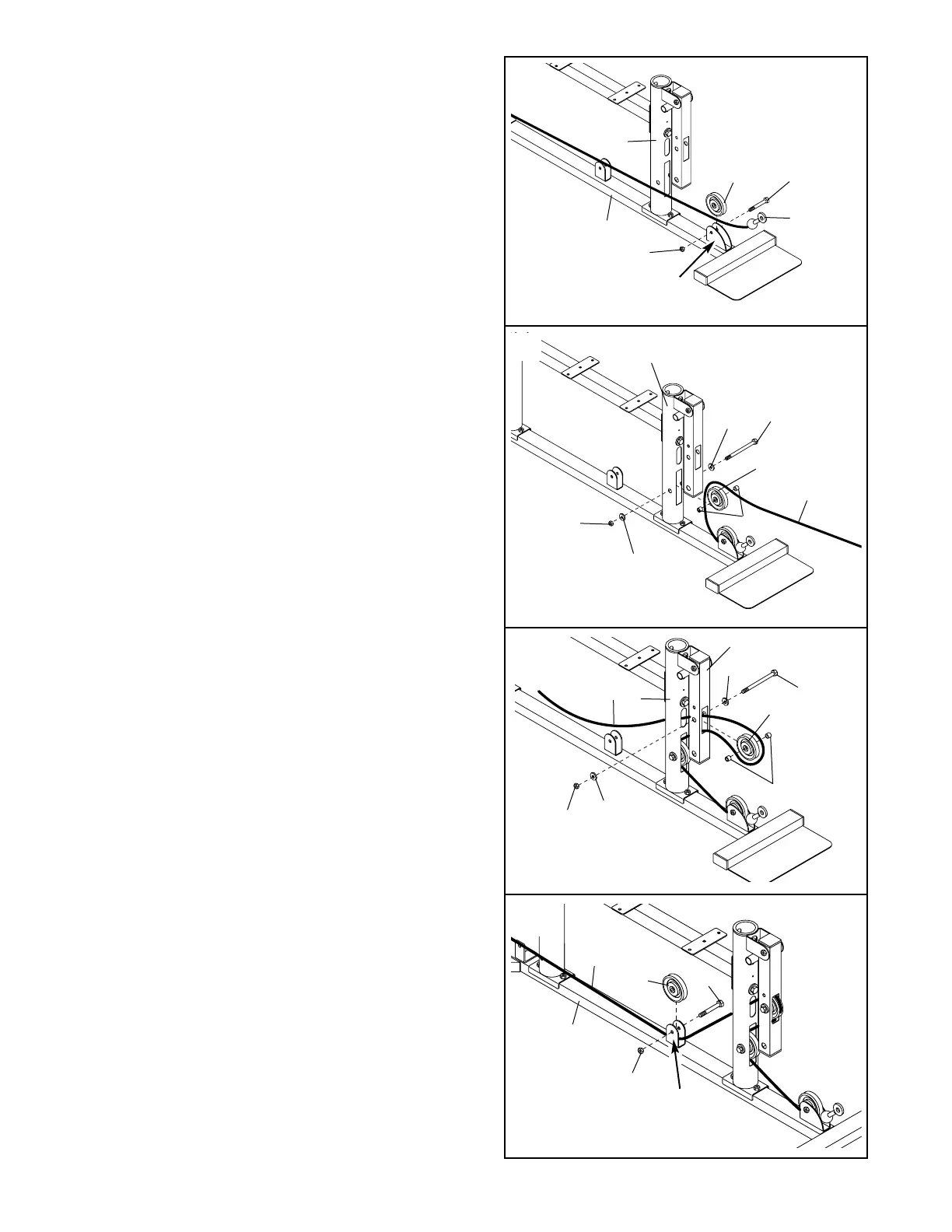

30. Locate the Weight Cable (72). Note that one end
of the Weight Cable has a bolt on it, and the
other end has a ball on it.
Lay the Weight Cable (72) inside the bracket on the
Butterfly Base (4) in the manner shown. Attach a 3
1/2” Pulley (24) to the bracket with a 3/8” x 2” Bolt
(54) and a 3/8” Nylon Locknut (50). Be sure the
Weight Cable is in the groove of the 3 1/2”
Pulley.
31. Wrap the Weight Cable (72) around a 3 1/2” Pulley
(24). Slide a 3/8” Flat Washer (48) and a 5/8” x 1”
Bushing (103) onto a 3/8” x 3 3/4” Bolt (102). Slide
the Bolt through the Butterfly Front Leg (3) and the
3 1/2” Pulley. Secure another 5/8” x 1” Bushing and
3/8” Flat Washer to the Bolt with a 3/8” Nylon
Locknut (50).
32. Insert the Weight Cable (72) through the hole in the
Leg Lever (41), up around a 3 1/2” Pulley (24),
back through the hole in the Leg Lever, and through
the upper hole in the Butterfly Front Leg (3).
Attach the 3 1/2” Pulley (24) and two 5/8” x 1/2”
Bushings (99) to the Leg Lever (41) with a 3/8” x 2
3/4” Bolt (89), two 3/8” Flat Washers (48), and a
3/8” Nylon Locknut (50).
33. Lay the Weight Cable (72) under a 3 1/2” Pulley
(24) as shown. Attach the 3 1/2” Pulley to the
bracket on the Butterfly Base (4) with a 3/8” x 2”
Bolt (54) and a 3/8” Nylon Locknut (50).
