5
ASSEMBLY
To hire an authorized service technician to assemble the abdominal exerciser, call 1-800-445-2480.
A
ssembly requires two persons. Place all parts of the abdominal exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver and an
adjustable wrench .

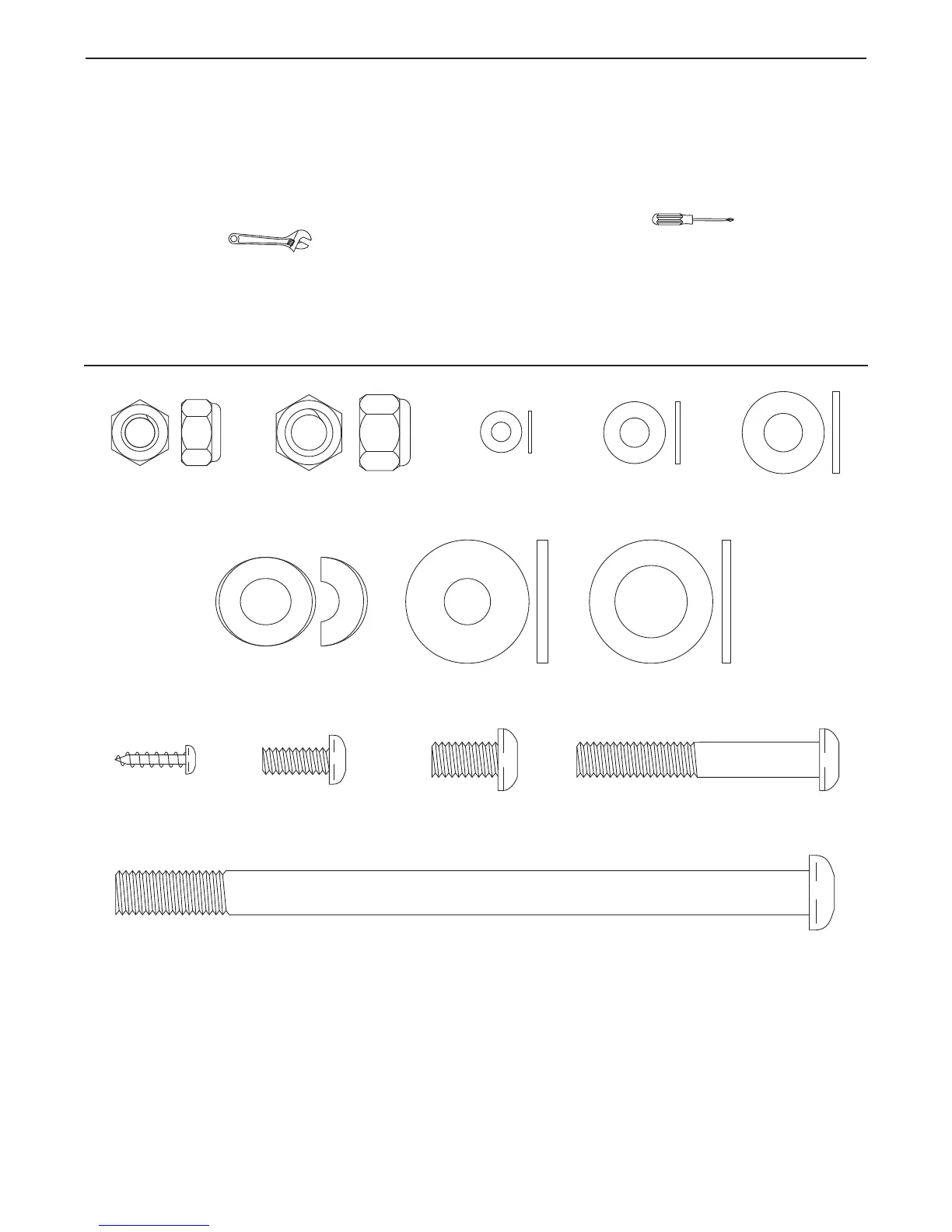

See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
M8 x 15mm Button
Screw (29)–12
M6 x 15mm Button
Screw (28)–4
M4 x 16mm
Screw (31)–2
Large Washer
(41)–1
Pivot Washer
(43)–1
M10 Curved
Washer (39)–2
M10 x 157mm Button Bolt (30)–1
M8 x 55mm Button
Bolt (47)–1
M6 Washer
(35)–4
M10 Locknut
(38)–1
M8 Washer
(34)–13
M8 Locknut
(46)–1
M4 Washer
(48)–2
