8. Make sure that all parts are properly tightened before you use the abdominal exerciser. Note: Some
hardware may be left over after assembly is completed.

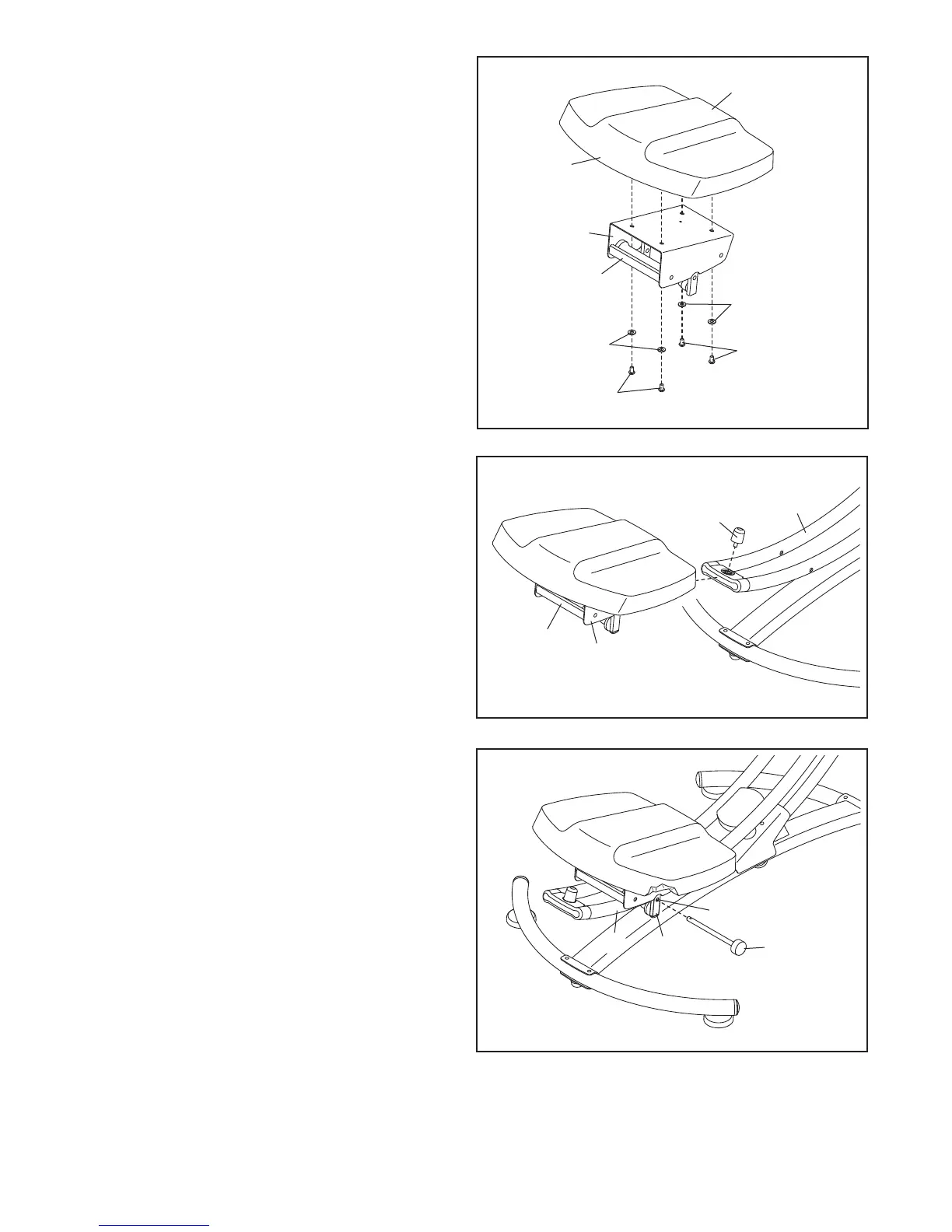

6. Orient the Roller Carriage (6) as shown. Slide
the Roller Carriage onto the Pivot Frame (3).
Tighten the Roller Stop (16) into the Pivot
Frame (3).
7. Move the Roller Carriage (6) to the position
shown, and align the indicated hole in the Roller
Carriage with the corresponding hole (not
shown) in the Pivot Frame (3).
Insert the Pin (27) into the Roller Carriage (6)
and the Pivot Frame (3).
6
6
3
16
27
Hole
8
5. Orient the Knee Pad (7) and the Roller Carriage
(6) as shown.
A
ttach the Knee Pad (7) to the Roller Carriage
(6) with four M6 x 15mm Button Screws (28)
a
nd four M6 Washers (35).
5
7
6
Wide
End
Welded
Bar
35
35
28
28
3
Welded
Bar
