Pro-Form ab Glider PFBE19410.2 User Manual

7
3
5
4
39
38
37
30
39

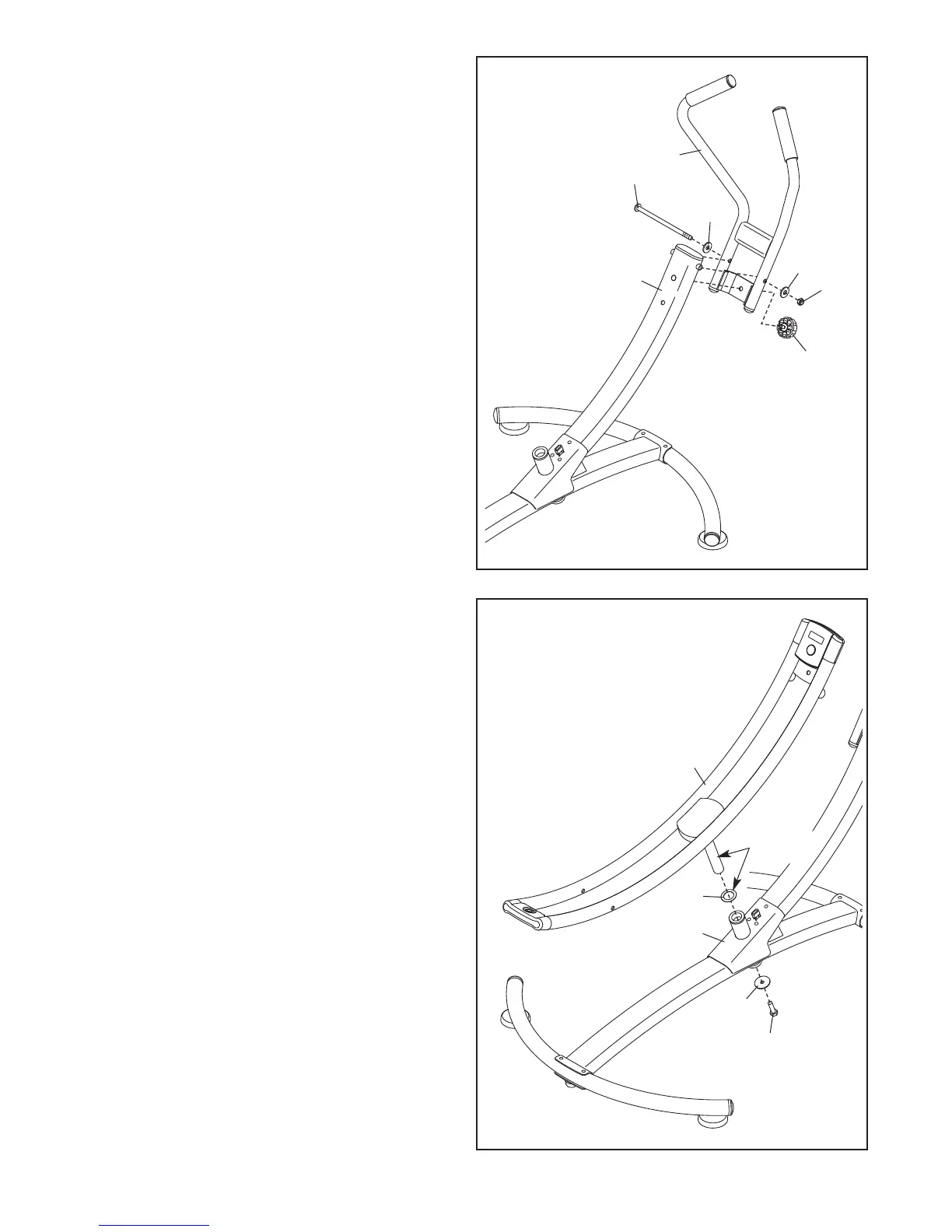

3. Attach the Handlebar (5) to the Upright (4) with
an M10 x 157mm Button Bolt (30), two M10
Curved Washers (39), and an M10 Locknut
(38).
Tip: It may be helpful to use a hex key to
turn the M10 x 157mm Button Bolt (30) while
you are inserting it through the Handlebar
(5) and the Upright (4).
Secure the Handlebar (5) with the Handlebar
Knob (37).
4
3
43
1
41
29
4. Using a small plastic bag to keep your hand
clean, apply a small amount of the included
grease to both sides of a Pivot Washer (43) and
to the axle on the Pivot Frame (3).
Slide the Pivot Washer (43) onto the axle on the
Pivot Frame (3). Then, insert the Pivot Frame
into the Frame (1).
Attach the Pivot Frame (3) with an M8 x 15mm
Button Screw (29) and a Large Washer (41). Do
not overtighten the Button Screw; the Pivot
Frame must pivot freely.
Grease
