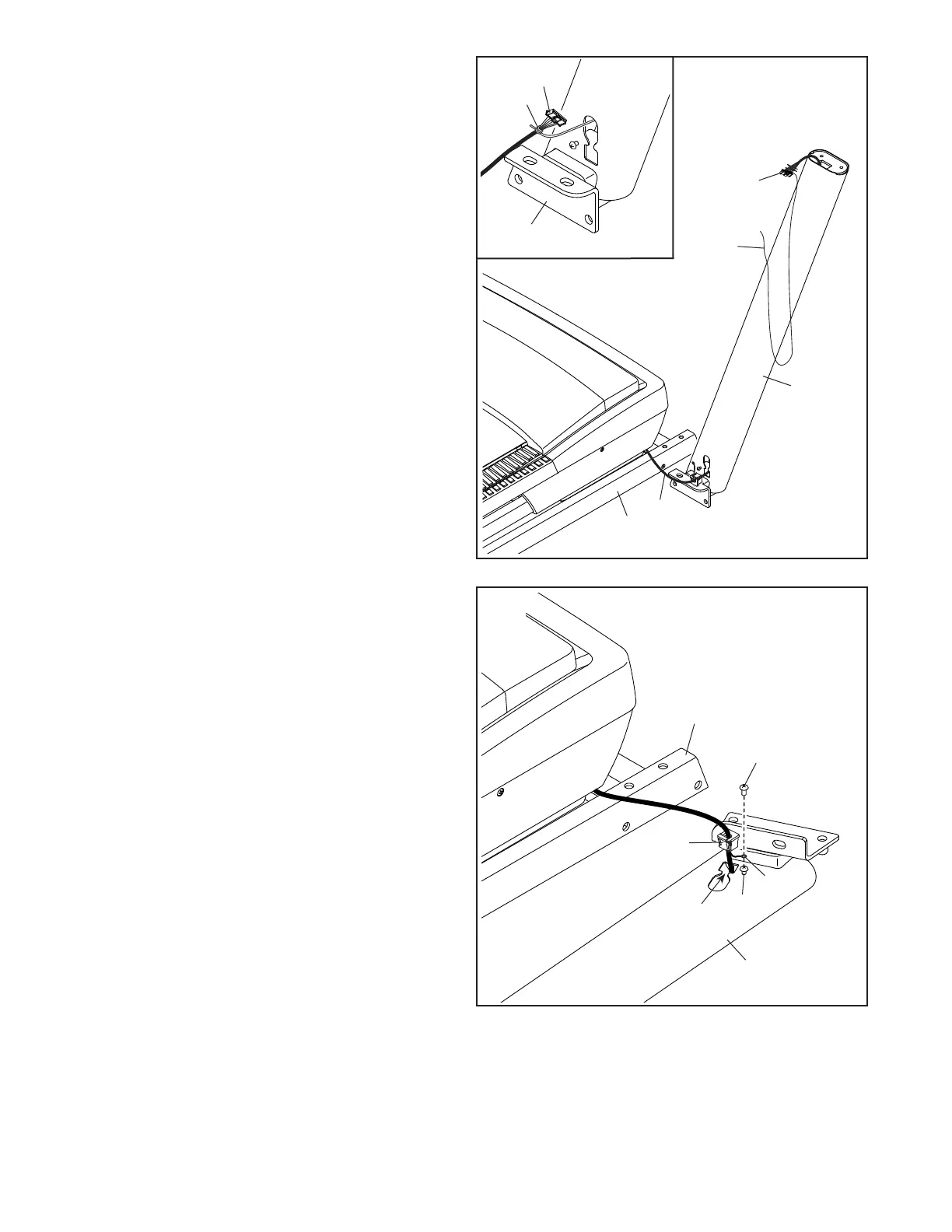

2. Make sure that the power cord is unplugged.
Remove the tie securing the Upright Wire (88) to
the front of the Base (97).
Next, identify the Right Upright (86). Have a
second person hold the Right Upright near the
Base (97).
See the inset drawing. Tie the wire tie (A) in
the Right Upright (86) securely around the end
of the Upright Wire (88). Then, insert the Upright
Wire into the lower end of the Right Upright, and
pull the upper end of the wire tie until the Wire
Harness is routed through the Right Upright.
86
88
A
3. Lay the Right Upright (86) near the Base (97).
Press the Grommet (89) into the square hole (B)
in the Right Upright. Make sure not to pinch
the ground wire (C).
Next, remove and discard the indicated
screw (D).
Then, attach the ground wire to the Right Upright
(86) with a #8 x 1/2" Ground Screw (9).
3
97
86
88
88
A
97
86
D
C
B
9
89

Pro-Form CARBON T10 Specifications

General

Display	10" Smart HD Touchscreen
Speed	0-12 MPH
Weight Capacity	300 lbs
Heart Rate Monitoring	EKG Grip Pulse
Running Area	20" x 55"
Cooling Fan	Yes
Incline	0-12%
Belt	20" x 55"
Folding	SpaceSaver Design with EasyLift Assist
Connectivity	Bluetooth
Programs	iFIT Based
Audio	Dual 2" Speakers
Motor	2.75 CHP Mach Z™ Motor
