Pro-Form CARBON T7 User Manual

7
PART IDENTIFICATION CHART

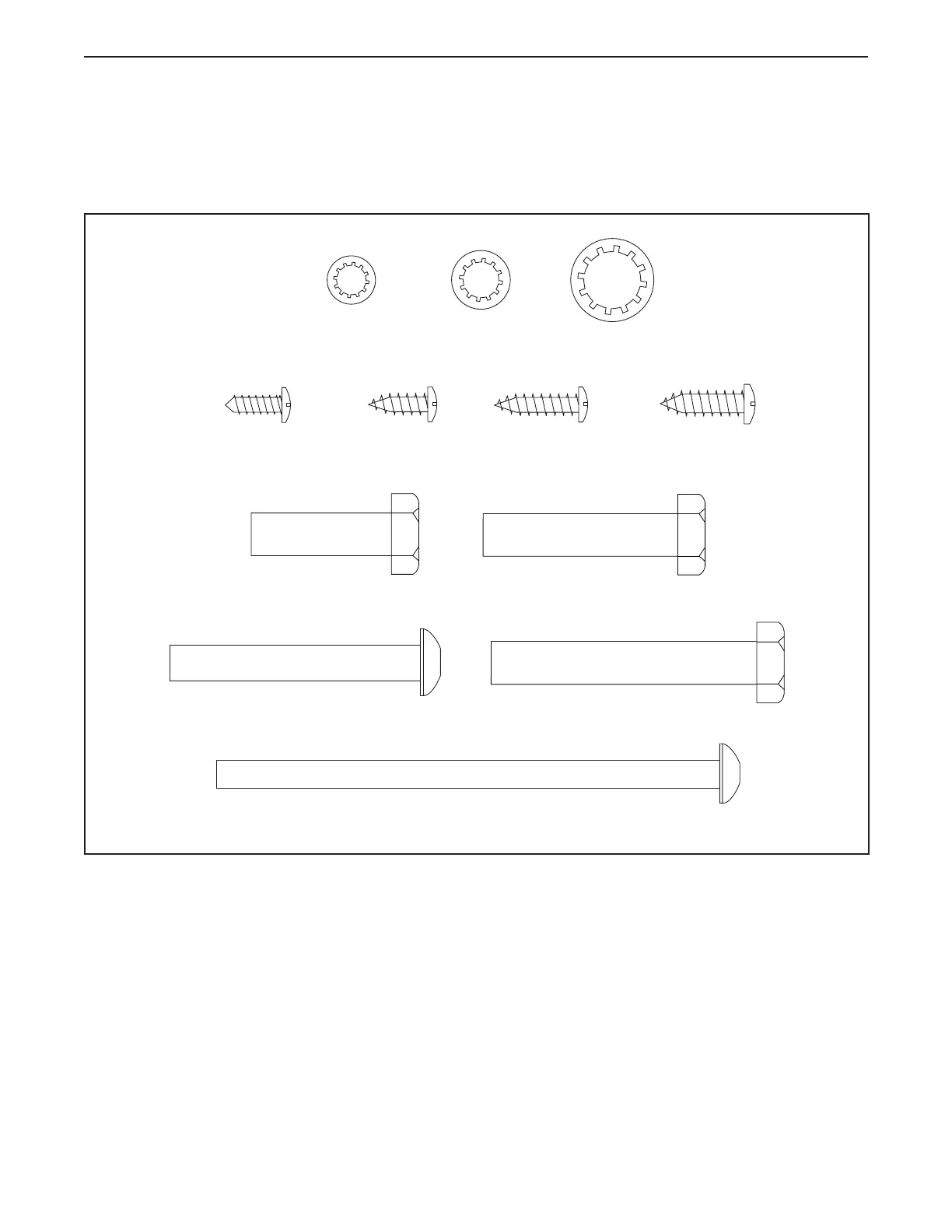

Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included. If a part is missing, please call 1-888-533-1333.
#10 x 3/4"
Screw (6)–4
3/8" Star
Washer (11)–8
5/16" Star
Washer (12)–4
#8 x 1/2" Ground
Screw (9)–1
#8 x 1/2"
Screw (5)–8
5/16" x 2 1/4" Screw (7)–4
3/8" x 2 3/8" Screw (3)–4
3/8" x 1 3/4" Screw (2)–2
3/8" x 1 1/4"
Screw (1)–2
#8 x 3/4"
Screw (4)–8
1/4" Star
Washer (10)–10
1/4" x 4 1/2" Screw (8)–2

Pro-Form CARBON T7 Specifications

General

Running Surface	20" x 55"
Weight Capacity	300 lbs
Motor	2.75 CHP Mach Z™ Motor
Speed	0-10 mph
Display	7" High Contrast Display
Folding	SpaceSaver design with EasyLift Assist
Warranty	10-Year Frame, 1-Year Parts & Labor
Product Weight	203 lbs
Dimensions	73.5" L x 35.2" W x 57.5" H
