Pro-Form Carbon TL PFTL59720-INT.0 User Manual

11
8
9
F
F
88
A
10
24
24
87
10

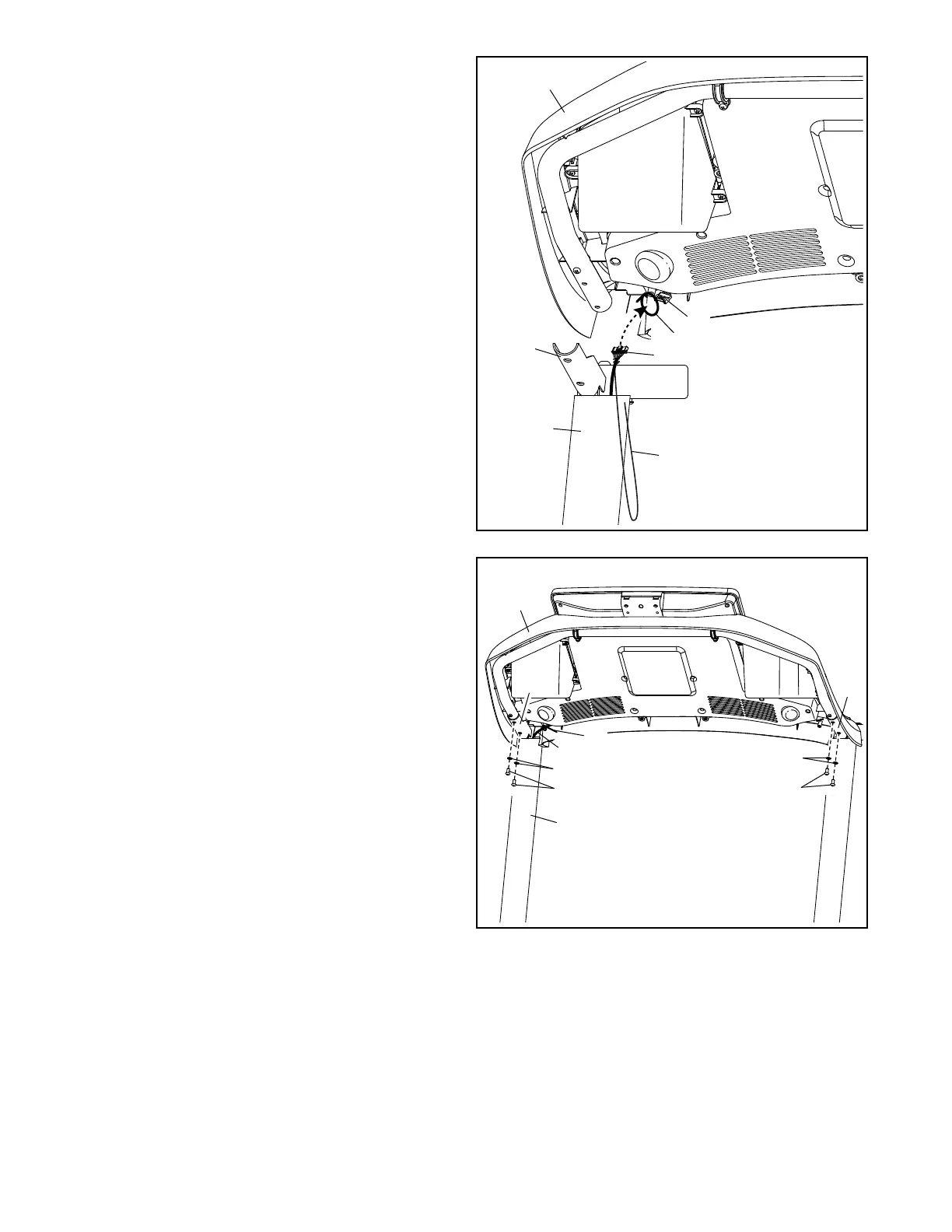

8. With the help of a second person, hold the con-
sole assembly (F) near the Right Upright (86).
Next, insert the Upright Wire (88) through the
indicated looped tie (G).
Connect the Upright Wire (88) to the wire (H)
from the console assembly (F). The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again.
Then, remove any wire ties (A) from the Upright
Wire (88).
9. Set the console assembly (F) on the Right and
Left Handrails (81, 80); do not pinch any wires.
Attach the console assembly (F) with the four
1/4" x 1/2" Screws (24) that you removed in step
7 and four 1/4" Star Washers (10); start all four
Screws, and then tighten them.
Insert the excess Upright Wire (88) into the Right
Upright (86). Then, tighten the tie (G) around the
Upright Wire and cut off the end of the tie.
86
G
H
80
88
G
86
81
