Pro-Form Carbon TL PFTL59720-INT.0 User Manual

12
6
10
10
80
81
10

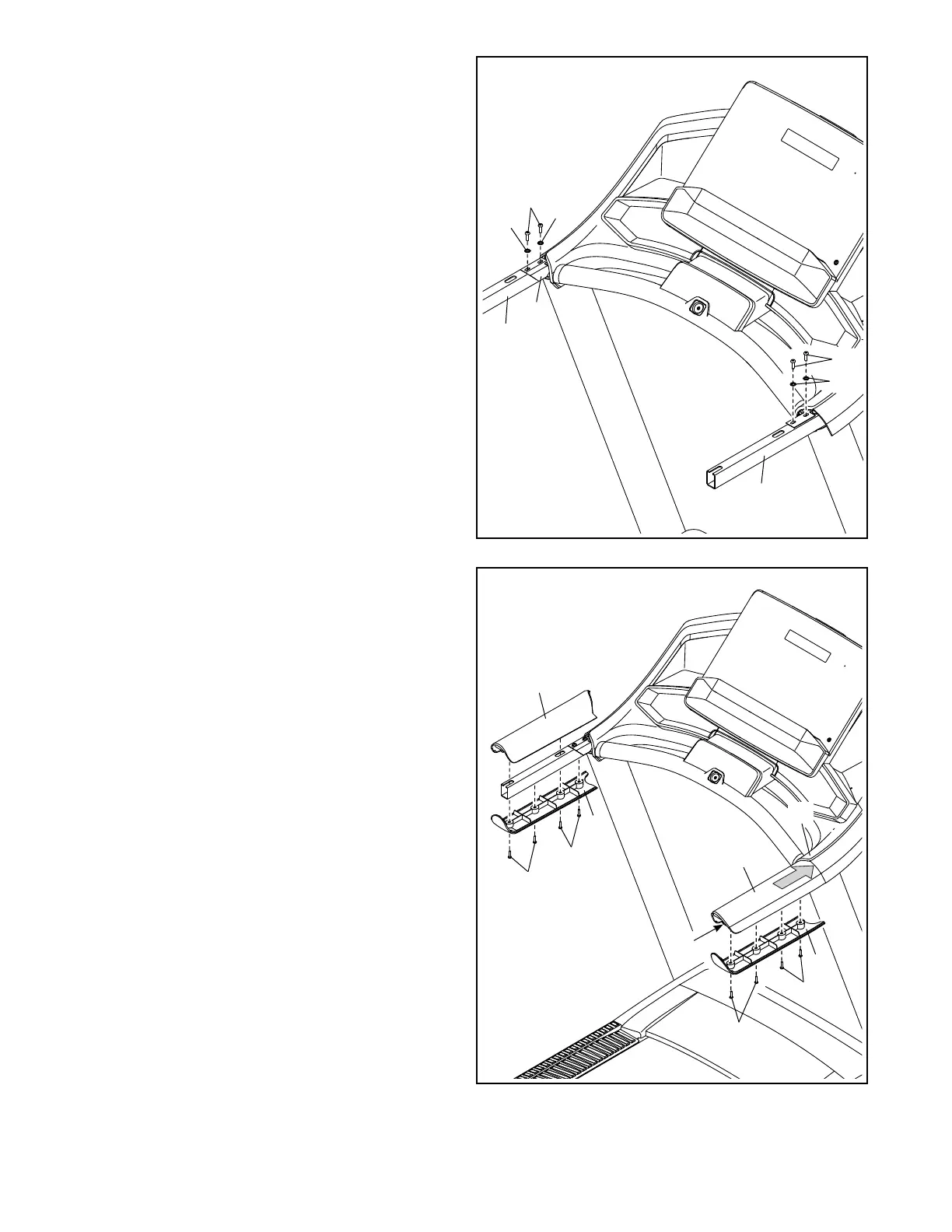

10. IMPORTANT: To avoid damaging the
Crossbar (87), do not use power tools and do
not overtighten the #10 x 3/4" Screws (6).
Attach the Crossbar (87) to the Handrails
(80, 81) with four #10 x 3/4" Screws (6) and four
1/4" Star Washers (10); start all four Screws,
and then tighten them.
87
11
79
F
4
78
82
4
4
11. Identify the Right Handrail Cover (79). Set the
Right Handrail Cover on the Right Handrail (81),
and slide the Right Handrail Cover forward until
it rests against the console assembly (F).
Next, hold the Right Bottom Handrail Cover (83)
on the bottom of the Right Handrail (81), and
start four #8 x 3/4" Screws (4) into the bottom of
the Right Bottom Handrail Cover; start all four
Screws, and then tighten them.
Attach the Left Handrail Cover (78) and the
Left Bottom Handrail Cover (82) in the same
way.
83
4
6
10
81
