Pro-Form CARBON TL User Manual

7

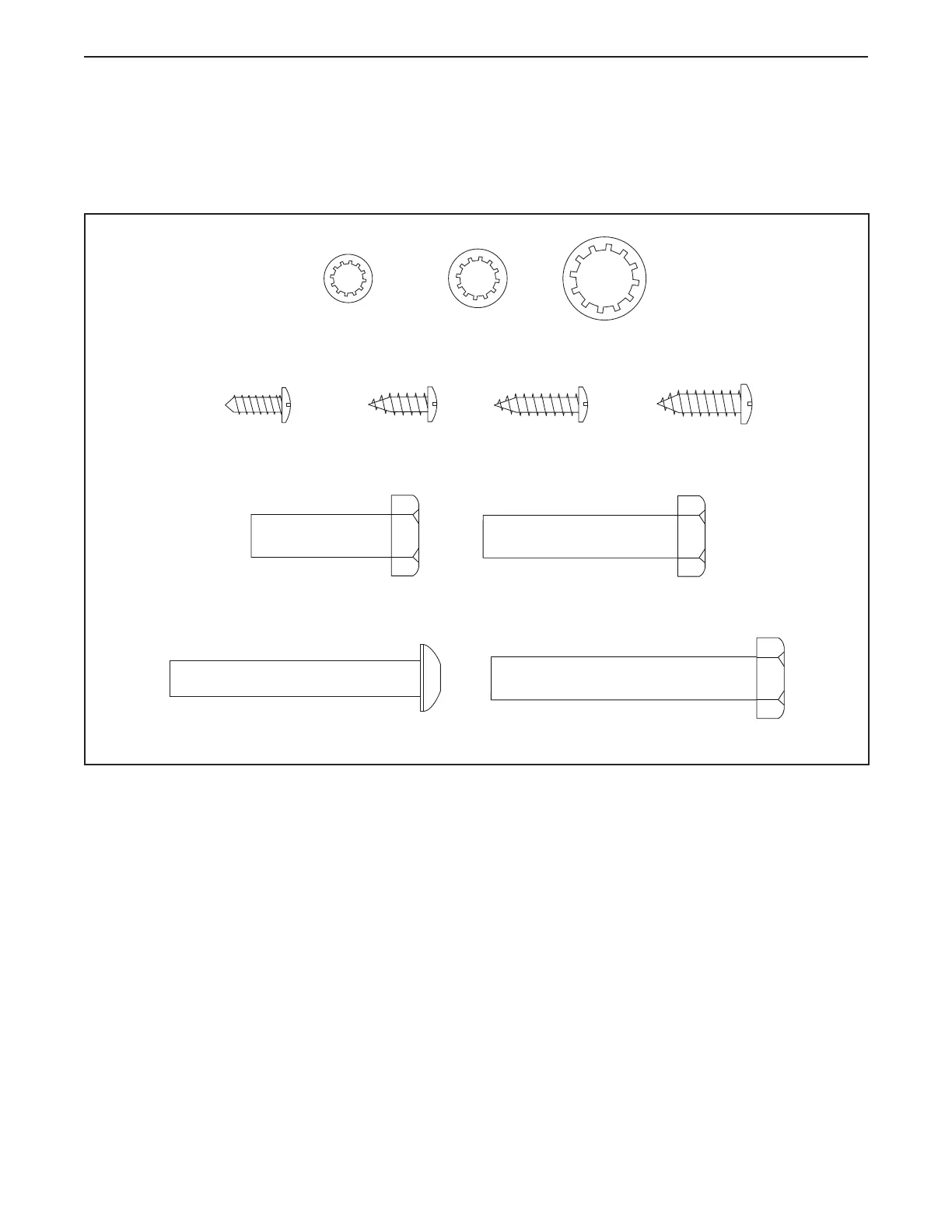

PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.
#10 x 3/4"
Screw (6)–4
3/8" Star
Washer (11)–8
5/16" Star
Washer (12)–6
#8 x 1/2" Ground
Screw (9)–1
#8 x 1/2"
Screw (5)–8
5/16" x 2 1/4" Screw (7)–4
3/8" x 2 3/8" Screw (3)–4
3/8" x 1 3/4" Screw (2)–2
3/8" x 1 1/4"
Screw (1)–2
#8 x 3/4"
Screw (4)–8
1/4" Star
Washer (10)–8

Pro-Form CARBON TL Specifications

General

Incline	0-10%
Speed	0-10 MPH
Weight Capacity	300 lbs
Folding	Yes
Weight	203 lbs
Motor	2.5 CHP
Belt Size	20" x 55"
Display	LCD
