11

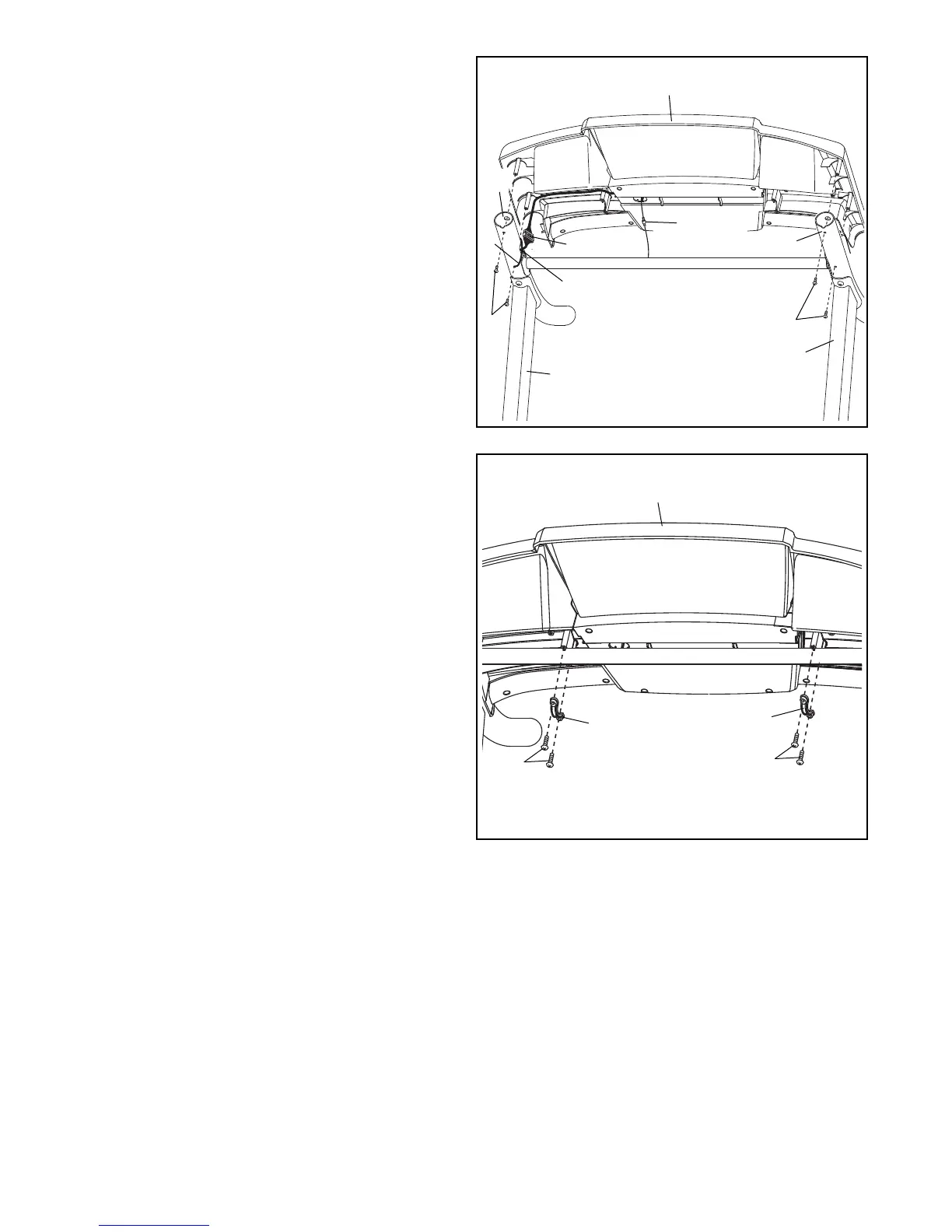

10. Attach the two Console Clamps (45) to the con-
sole assembly with four #8 x 1" Screws (7).
7
7
10
45
45
Console
Assembly
9
9. Insert the wires into the Right Handrail (64)
through the indicated hole as you set the con-
sole assembly on the Left and Right Handrails
(59, 64). Make sure that no wires are pinched.
Attach the console assembly with four #8 x 3/4"
Screws (4). Start all four Screws, and then
tighten them. Do not overtighten the Screws.
Cut and remove the wire tie (C).
See assembly step 5. Firmly tighten the six 3/8"
x 3 1/4" Screws (2) on the lower ends of the Left
and Right Uprights (66, 76) (only one side is
shown).
76
66
4
4
59
Wires
Hole
Console Assembly
Ground
Wires
64
C
To Next Page
