8
5
2
1
72
74
74
50
91
80
80
62
B
62
32
6

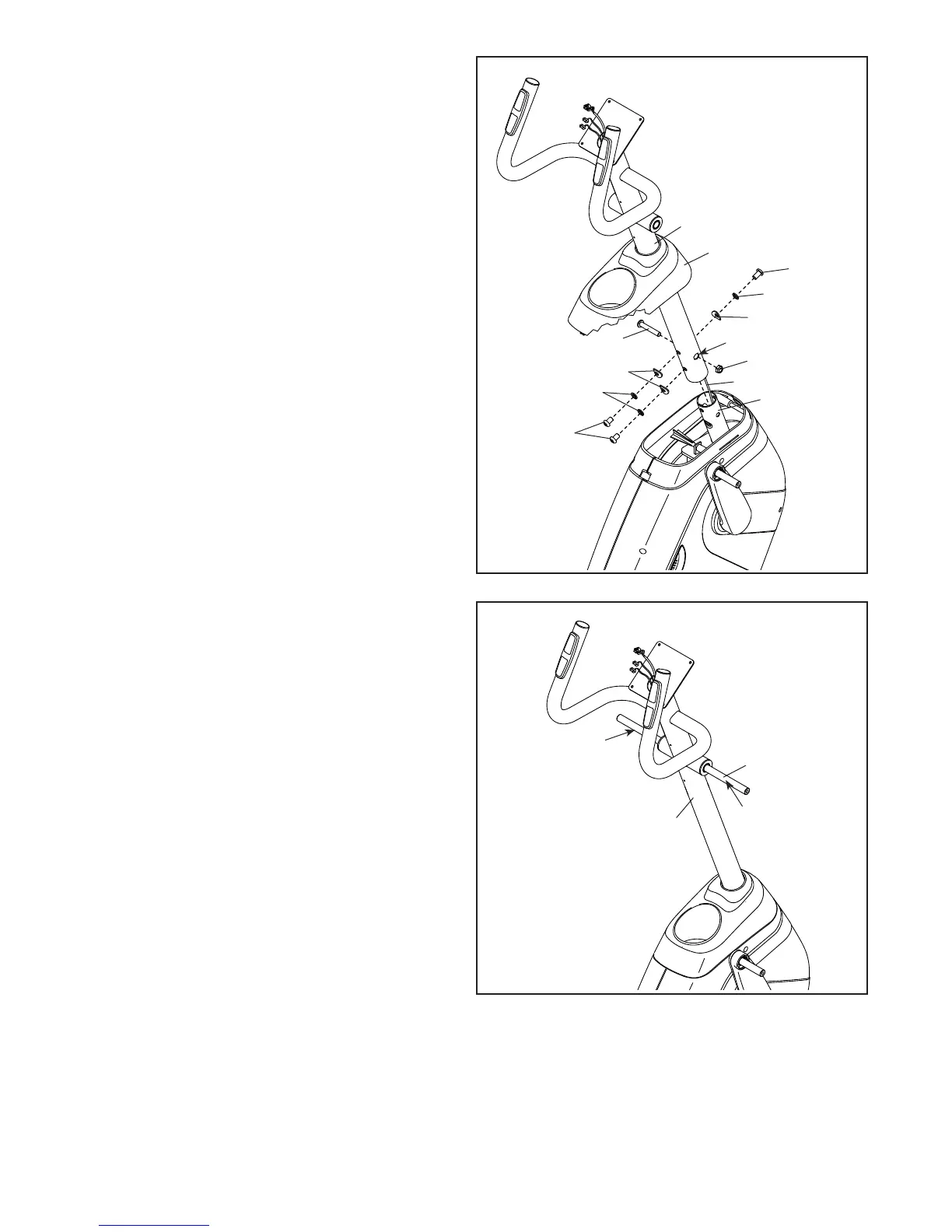

5. Tip: Avoid pinching the Main Wire (32). Slide
the Upright (2) onto the Frame (1).
Attach the Upright (2) with three M10 x 20mm
Screws (74), three M10 Split Washers (80), and
three M10 Curved Washers (62) as shown; do
not fully tighten the Screws yet.
Finish attaching the Upright (2) with an
M10 x 60mm Bolt (72) and an M10 Small
Locknut (91); do not fully tighten the Bolt yet.
Make sure that the Small Locknut is in the
hexagonal hole (B).
Do not press the Accessory Tray (50) into
place yet.
Grease
Grease
18
2
Avoid pinching the
Main Wire (32)
6. Insert the Upright Axle (18) into the Upright (2)
and center it.
Using a plastic bag to keep your fingers clean,
apply some of the included grease to both ends
of the Upright Axle (18).
To Next Page
