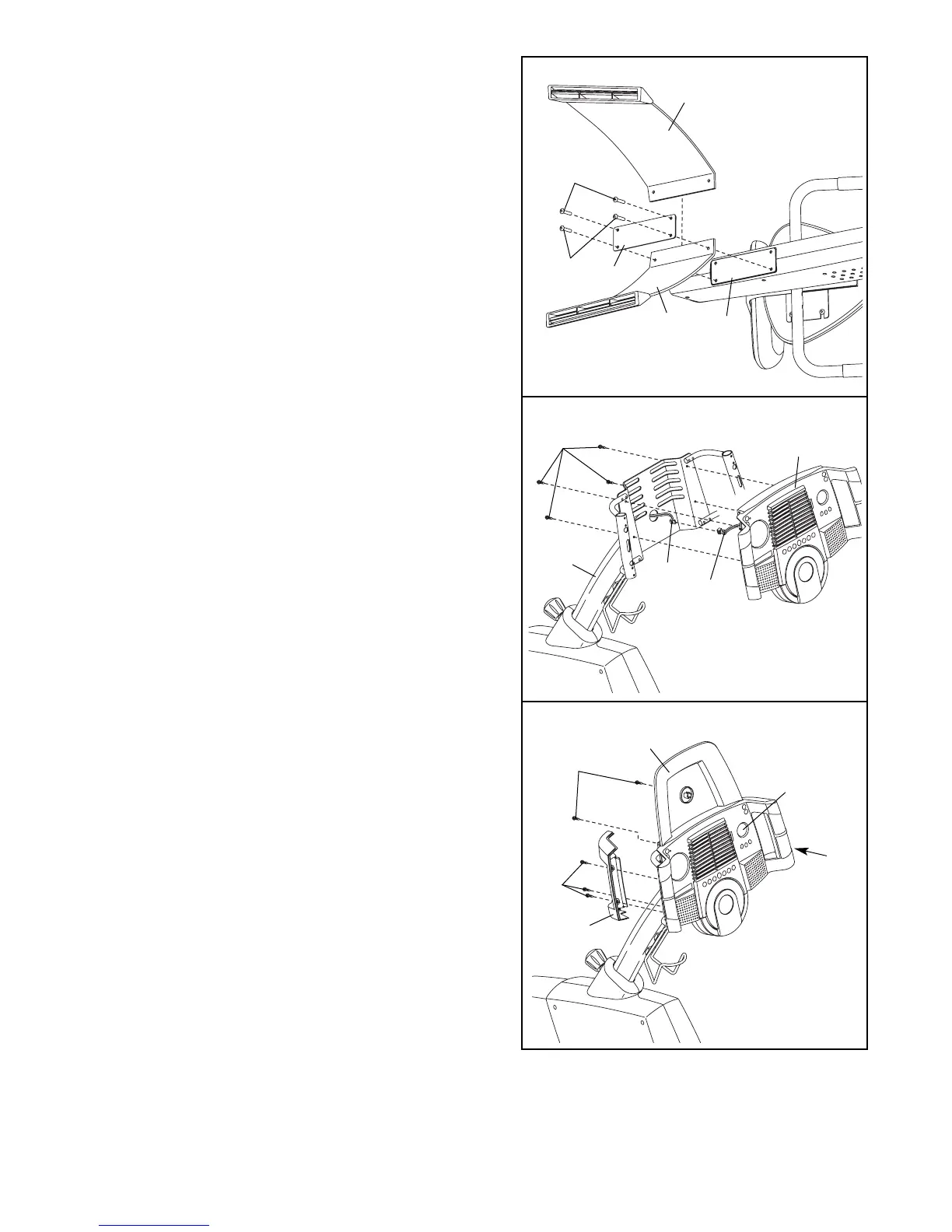

9. With the help of another person, carefully raise the
exercise cycle so it is resting on the Front and Rear
Stabilizers (not shown).
While another person holds the Console (4) in the
position shown, connect the wire harness on the
Console to the Upper Wire Harness (42). Insert the
excess wire harness down into the Upright (2).
Attach the Console (4) to the Upright (2) with four M4
x 12mm Screws (41). Be careful to avoid pinching
the wire harnesses.
9
4
2
41
10. Attach the CD Holder (59) to the Console (4) with two
M4 x 12mm Screws (41) as shown.
Attach the Left Handlebar Cover (6) to the Console (4)
with three M4 x 16mm Screws (57).
Attach the Right Handlebar Cover (5) to the
Console (4) in the same way.
57
5
4
59
41
6
10
Wire
Harness
42
8. With the help of another person, carefully tip the
exercise cycle onto its left side so it is resting on the
Left Inner Handlebar (not shown).
Identify the Left Rear Stabilizer (16), which is marked
with an “L” sticker. Attach the Left Rear Stabilizer and
the Stabilizer Plate (87) to the Frame (1) with two M8
x 25mm Button Screws (40) as shown; do not tighten
the Button Screws yet.
Insert the Right Rear Stabilizer (98) between the
Stabilizer Plate (87) and the Frame (1). Attach the
Right Rear Stabilizer with two M8 x 25mm Button
Screws (40). Tighten all four Button Screws.
40
87
40
1
8
98
16
To Next Page
