7

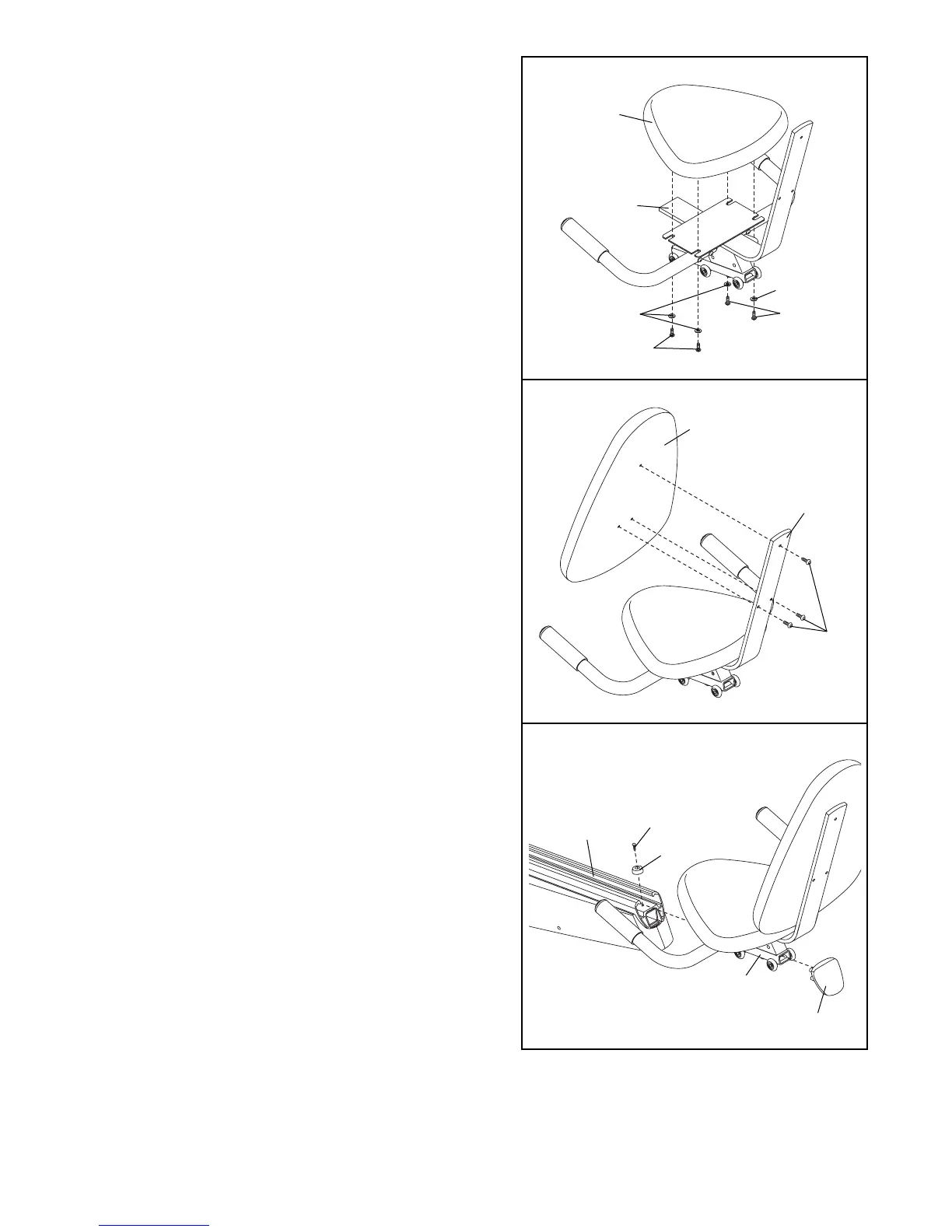

5. Attach the Seat (9) to the Seat Bracket (11) with four
M6 x 16mm Button Screws (8) and four M6 Washers
(66).
5
9
11
66
8
8
66
6. Attach the Backrest (90) to the Seat Bracket (11) with
three M6 x 22mm Button Screws (93).
11
93
90
6
7. Push down the lever (not shown) on the right side of
the Seat Carriage (10), slide the Seat Carriage into the
Frame Rail (81), and then pull the lever back up.
Attach a Bumper (82) to the Frame Rail (81) with an
M4 x 20mm Screw (101). Next, press the Frame Rail
Endcap (83) into the end of the Frame Rail.
10
83
81
82
101
7
