10

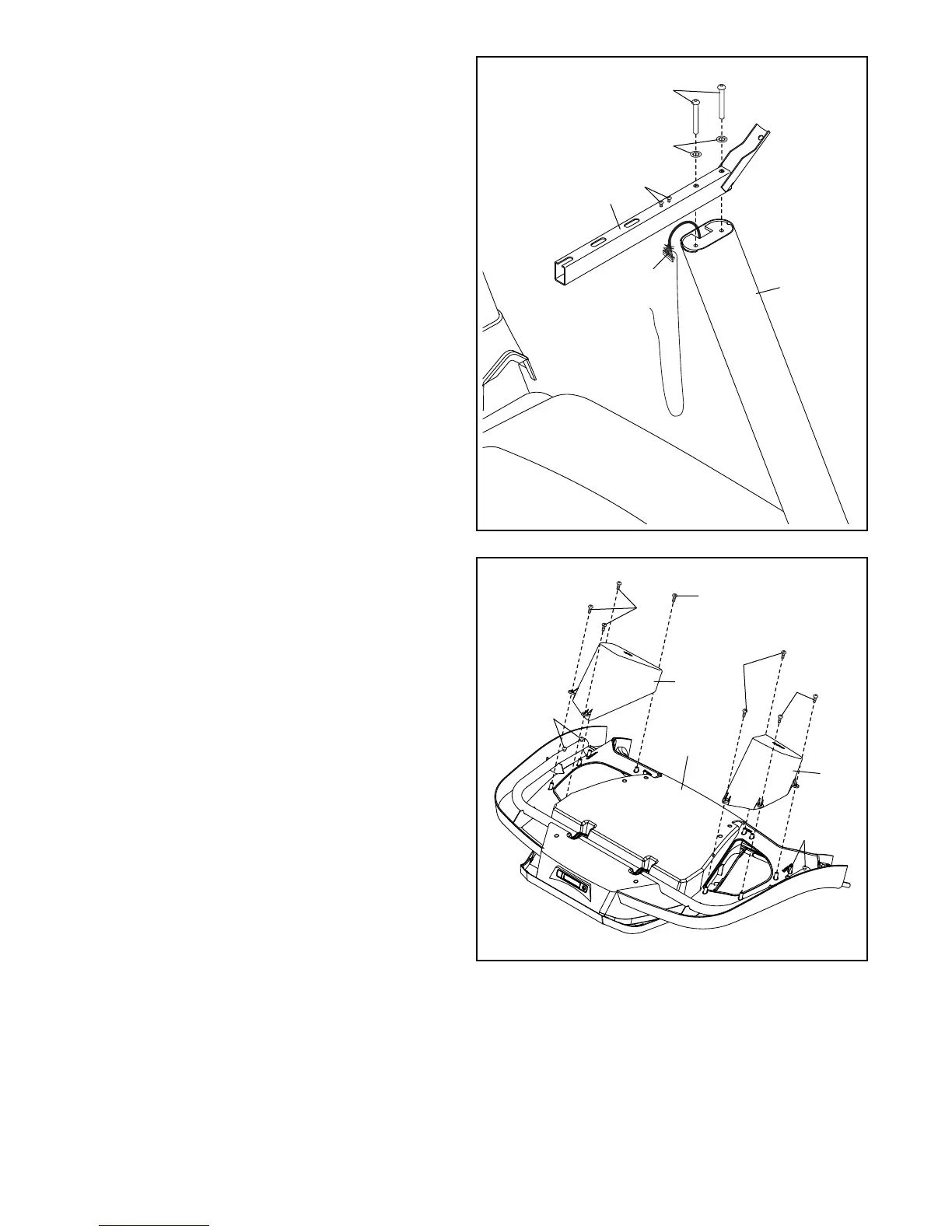

6 . Set a Handrail (84) onto the Right Upright (90).
Make sure that the Upright Wire (81) is not
pinched.
Attach the Handrail (84) with two 5/16" x 2 1/4"
Screws (28) and two 5/16" Star Washers (11).
Start both Screws, and then tighten them.
Attach the other Handrail (not shown) in the
same way. Note: There is no wire on the left
side.
Remove and discard the two indicated screws
(A) from both Handrails (84) (only one side is
shown).
11
81
84
28
6
90
7. Set the console assembly face down on a soft
surface to avoid scratching the console assem-
bly. Remove and save the four 1/4" x 1/2"
Screws (2).
Identify the Left Tray (36). Attach the Left Tray
with four #8 x 1/2" Screws (1). Start all four
Screws, and then tighten them. Be careful not
to overtighten the Screws.
Attach the Right Tray (27) in the same way.
7
1
Console
Assembly
1
2
36
27
1
2
1
A
To Next Page
