12. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
onthetreadmilldecals,removetheplastic.Toprotecttheoororcarpet,placeamatunderthetreadmill.
Note: Extra parts may be included. Keep the included hex key in a secure place; the hex key is used to adjust
the walking belt (see pages 21 and 22).
86
10
6
Large
Barrel
Latch
Knob
10

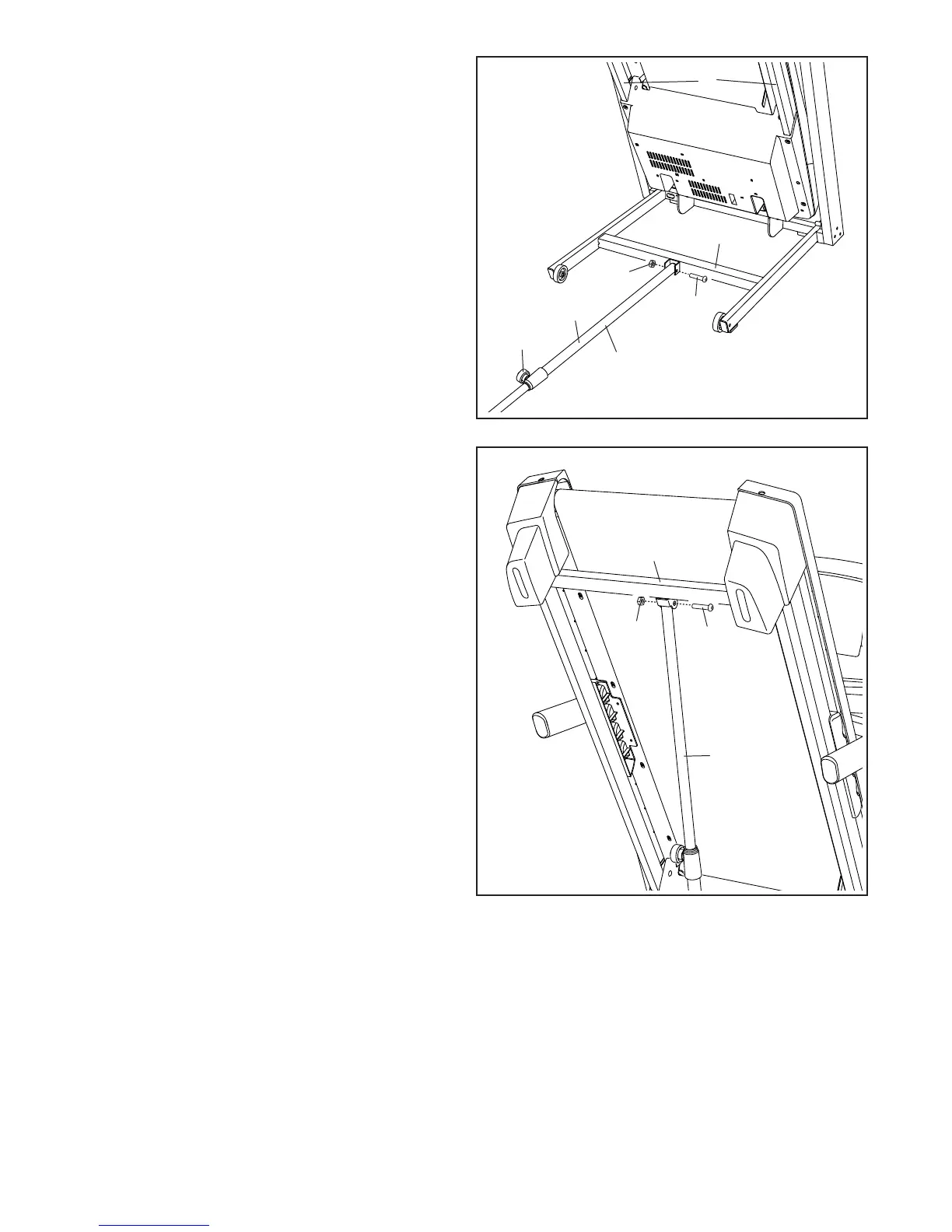

10. Raise the Frame (55) to the position shown.
Have a second person hold the Frame until
step 11 is completed.
Orient the Storage Latch (56) so that the large
barrel and the latch knob are oriented as shown.
Attach the lower end of the Storage Latch (56) to
the Base (86) with a 3/8" x 2 1/4" Bolt (6) and a
3/8" Nut (10).
56
55
5
11
11. Attach the upper end of the Storage Latch (56)
to the Frame (55) with a 3/8" x 2" Bolt (5) and a
3/8" Nut (10).
Lower the Frame (not shown) (see HOW TO
LOWER THE TREADMILL FOR USE on
page 19).
10
55
56
