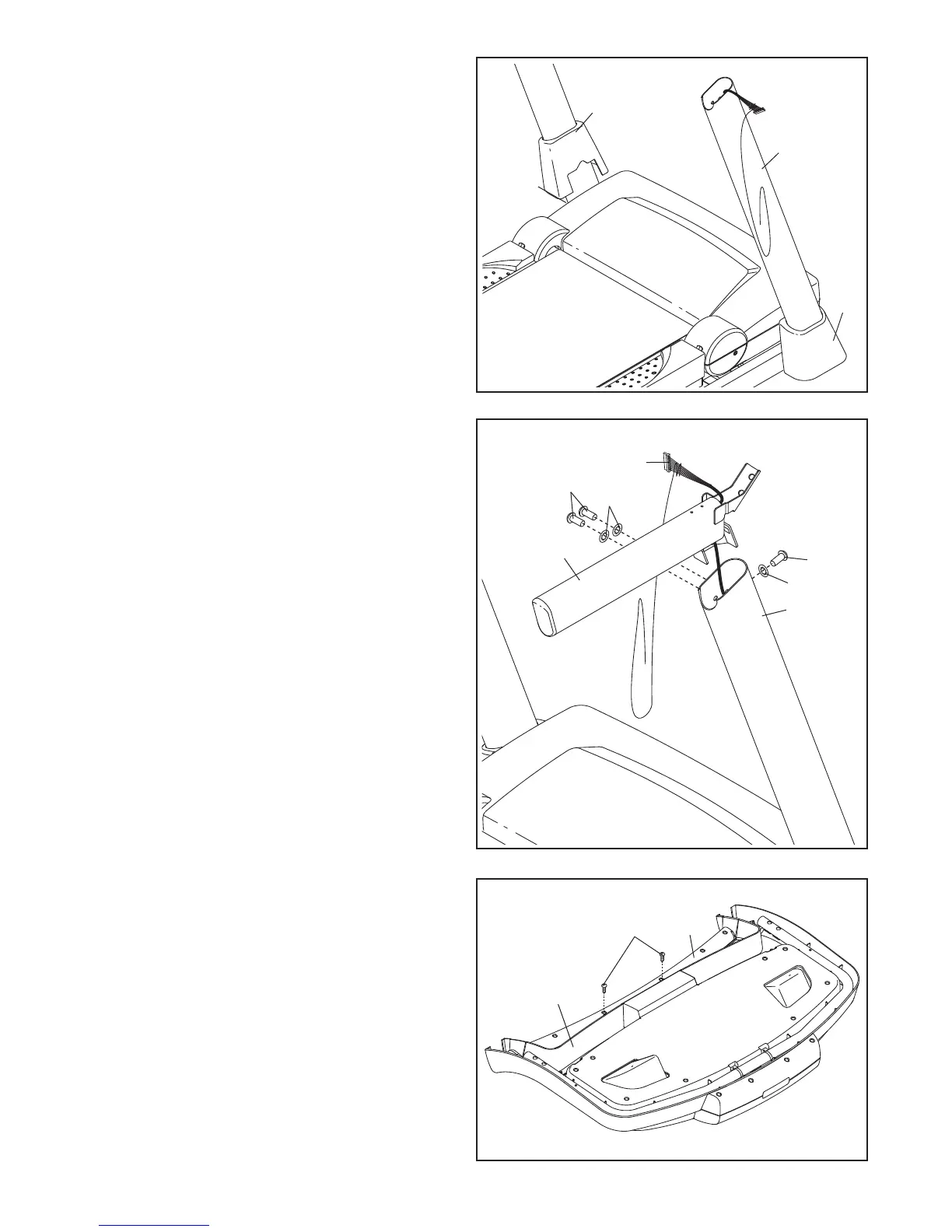

10. Set the console assembly face down on a soft
surface to avoid scratching the console assem-
bly. Remove the two #8 x 3/4" Screws (1). Next,
lift off the Crossbar (107). Discard the Screws.
10
107
Console
Assembly
1
9. Hold the Right Handrail (83) near the Right
Upright (85). Insert the Upright Wire (87)
through the indicated bracket on the Right
Handrail, and pull the Upright Wire out of the
end of the Right Handrail.
Attach the Right Handrail (83) to the Right
Upright (85) with three 5/16" x 1" Bolts (4) and
three 5/16" Star Washers (13) as shown. Do
not tighten the Bolts yet.
Attach the Left Handrail (not shown) in the
same way. Note: There is no wire on the left
side.
83
4
4
13
13
85
87
9
8. Identify the Right Base Cover (91) and the Left
Base Cover (88). Slide the Right Base Cover
onto the Right Upright (85). Slide the Left Base
Cover onto the Left Upright (84).
91
85
84
88
8
