7
4

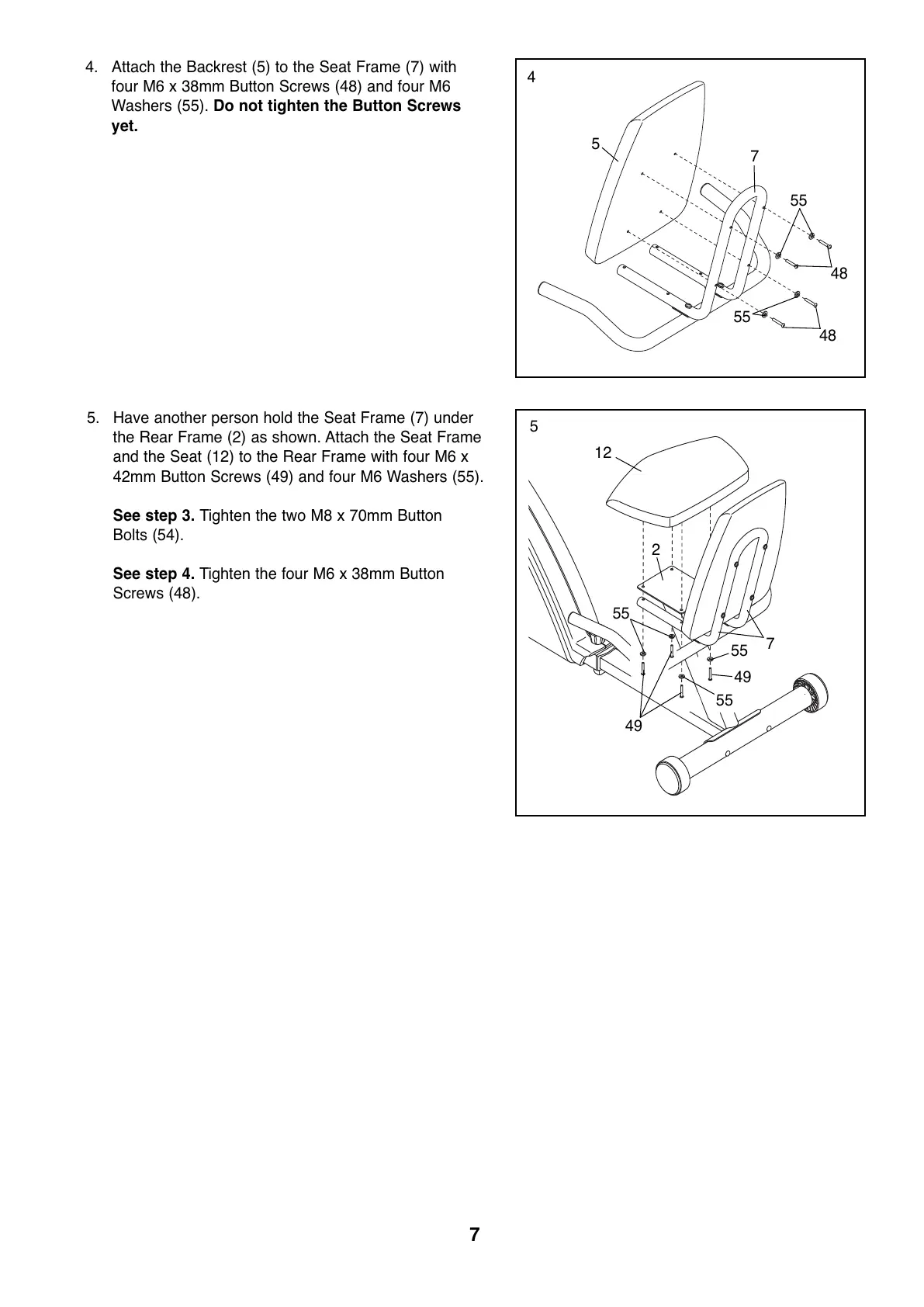

. Attach the Backrest (5) to the Seat Frame (7) with
four M6 x 38mm Button Screws (48) and four M6
Washers (55). Do not tighten the Button Screws
yet.
4
5
7
55
55
48
48
12
55
55
55
7
5
49
2
49
5. Have another person hold the Seat Frame (7) under
the Rear Frame (2) as shown. Attach the Seat Frame
and the Seat (12) to the Rear Frame with four M6 x
42mm Button Screws (49) and four M6 Washers (55).
See step 3. Tighten the two M8 x 70mm Button
Bolts (54).
See step 4. Tighten the four M6 x 38mm Button
Screws (48).
