13
10

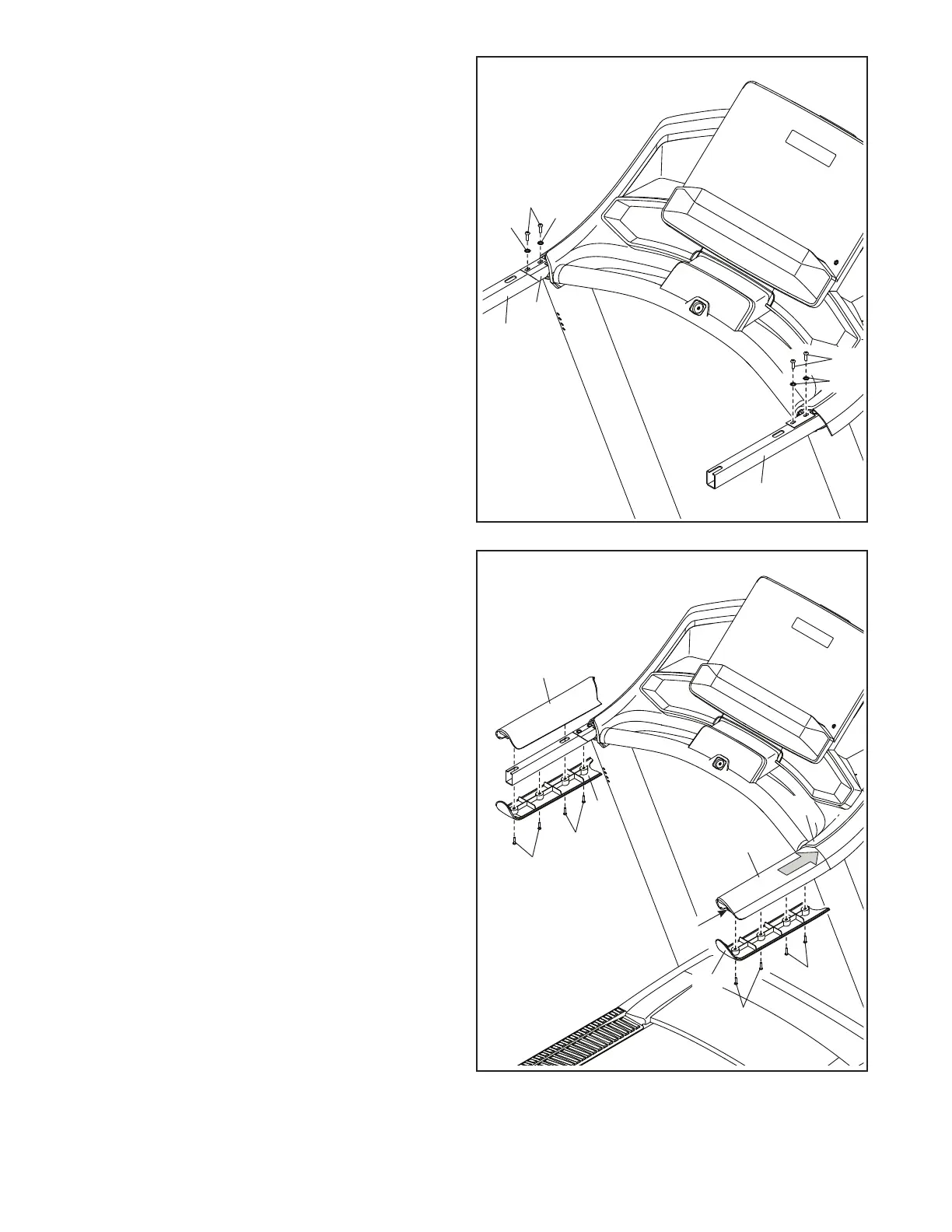

10. IMPORTANT: To avoid damaging the
Crossbar (87), do not use power tools and do
not overtighten the #10 x 3/4" Screws (6).
Attach the Crossbar (87) to the Handrails (81)
with four #10 x 3/4" Screws (6) and four 1/4" Star
Washers (10); start all four Screws, and then
tighten them.
11
11. Identify the Right Handrail Cover (79). Set the
Right Handrail Cover on the right Handrail (81),
and slide the Right Handrail Cover forward until
it rests against the console assembly (F).
Next, attach the Right Bottom Handrail Cover
(83) to the right Handrail (81) and to the Right
Handrail Cover (79) with four #8 x 3/4" Screws
(4); start all four Screws, and then tighten
them.
Attach the Left Handrail Cover (78) and the
Left Bottom Handrail Cover (82) in the same
way.
6
10
10
81
81
87
6
10
79
4
78
82
4
4
83
4
81
F
To Next Page
