13
11
92
F
87
79
85
23
23
23

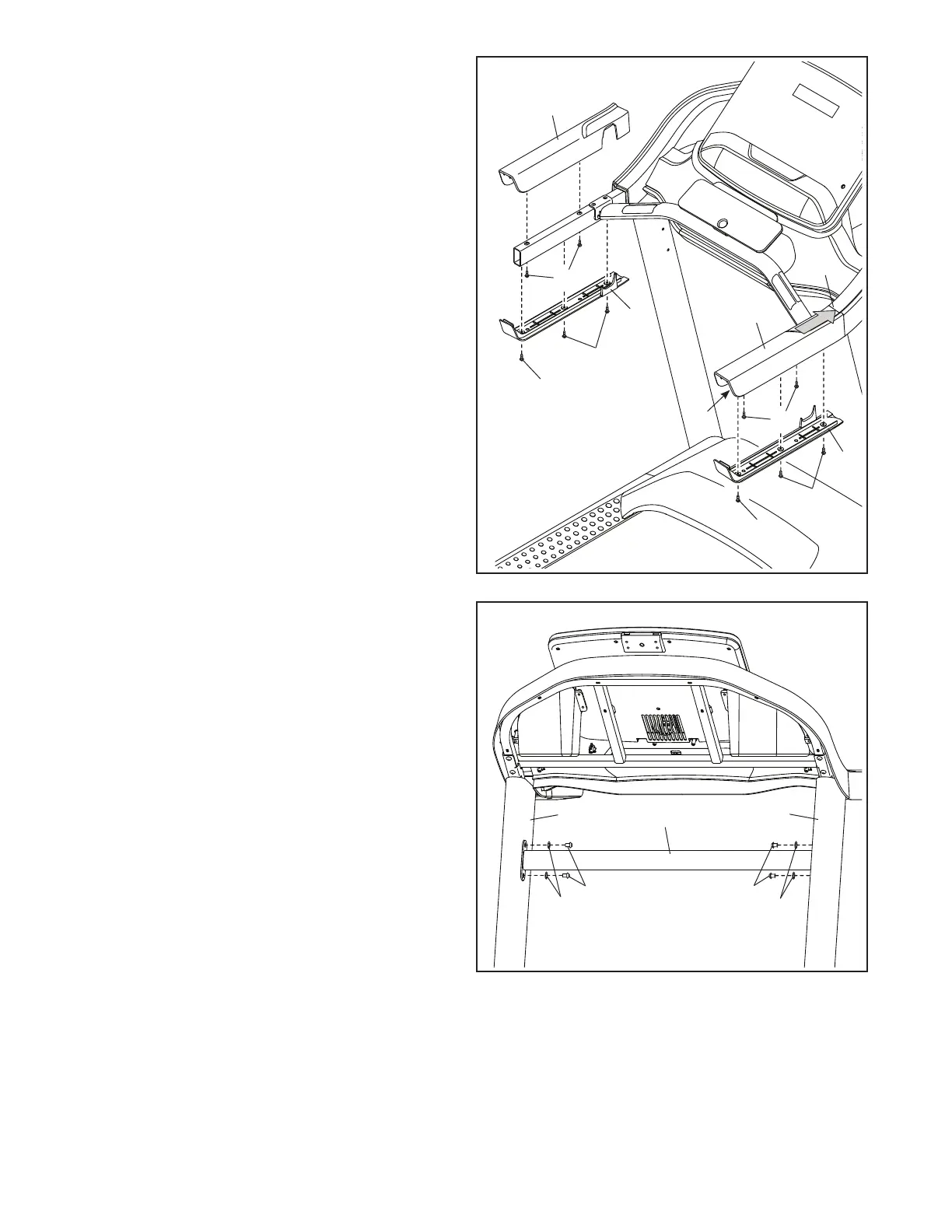

11. Identify the Right Handrail Cover (92). Set the
Right Handrail Cover on the Right Handrail (87).
Start two #8 x 3/4" Truss Head Screws (23) into
the bottom of the Handrail Cover; do not fully
tighten the Truss Head Screws.
Next, slide the Right Handrail Cover (92) for-
ward until it rests against the console assembly
(F). Then, tighten the two #8 x 3/4" Truss Head
Screws (23); do not overtighten the Truss
Head Screws.
Then, attach the Right Bottom Handrail Cover
(84) with three #8 x 3/4" Truss Head Screws
(23); start all three Truss Head Screws, and
then tighten them.
Attach the Left Handrail Cover (79) and the
Left Bottom Handrail Cover (85) in the same
way.
84
12. Carefully slide the Upright Crossbar (58)
between the Left and Right Uprights (89, 90).
Attach the Upright Crossbar with the four
5/16" x 3/4" Screws (31) that you removed in
step 5, and four 5/16" Star Washers (11); start
all four Screws, and then tighten them.
12
89
58
11
11
31
31
90
23
23
23
