11
31
84
8

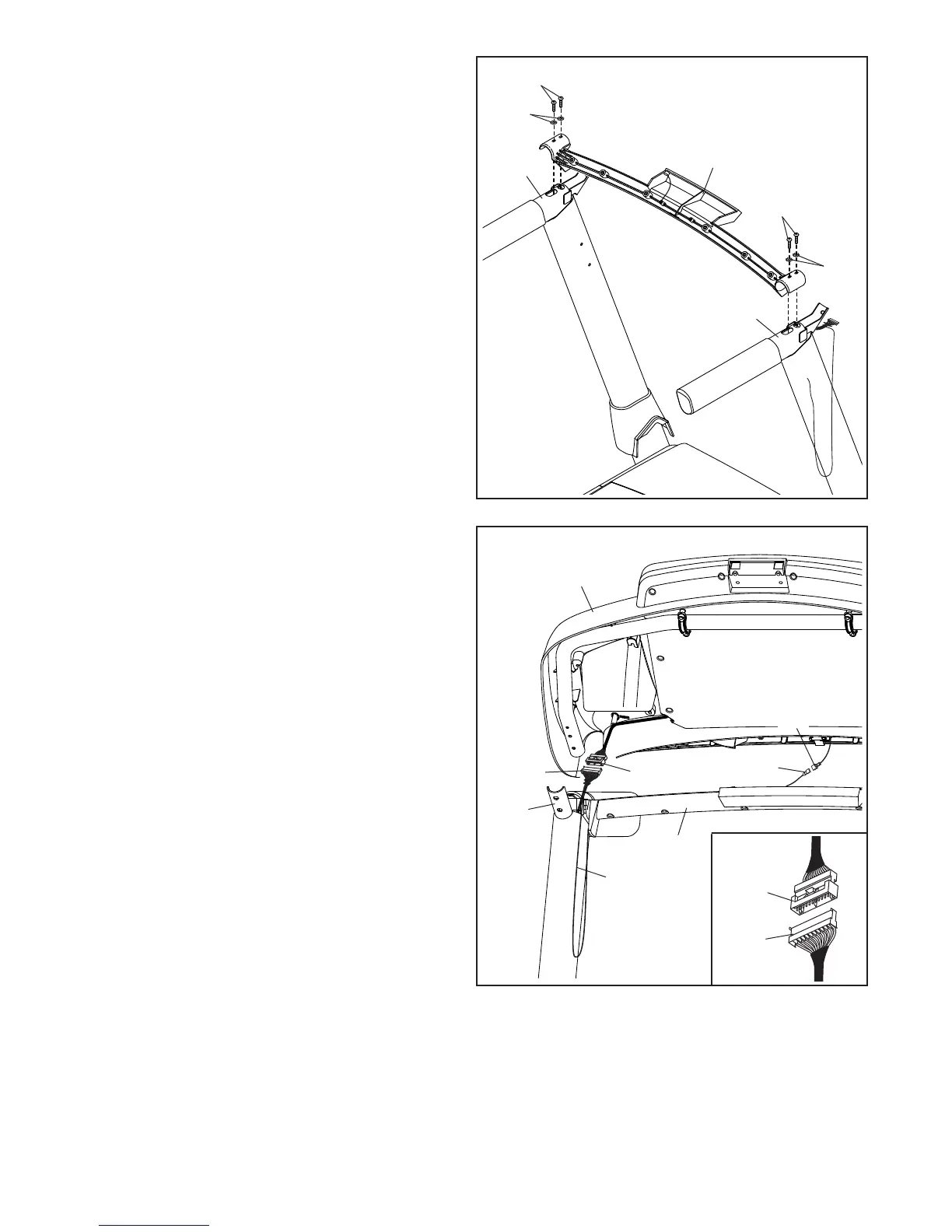

8. IMPORTANT: To avoid damaging the Pulse
Crossbar (31), do not use power tools and do
not overtighten the #10 x 1 1/4" Screws (9).
Orient the Pulse Crossbar (31) as shown. Attach
the Pulse Crossbar to the Handrails (84) with
four #10 x 1 1/4" Screws (9) and four #10 Star
Washers (5); start all four Screws, and then
tighten them.
9. With the help of a second person, hold the con-
sole assembly (G) near the Handrail (84).
Connect the ground wire (H) from the console
assembly (G) to the Console Ground Wire (58)
on the Pulse Crossbar (31).
See the inset drawing. Connect the Upright
Wire (81) to the console wire (I). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF YOU DO NOT CONNECT THE
CONNECTORS PROPERLY, THE CONSOLE
MAY BECOME DAMAGED WHEN YOU TURN
ON THE POWER. Then, remove the wire tie (A)
from the Upright Wire.
9
G
H
I
I
81
58
A
81
84
31
9
9
5
5
84
