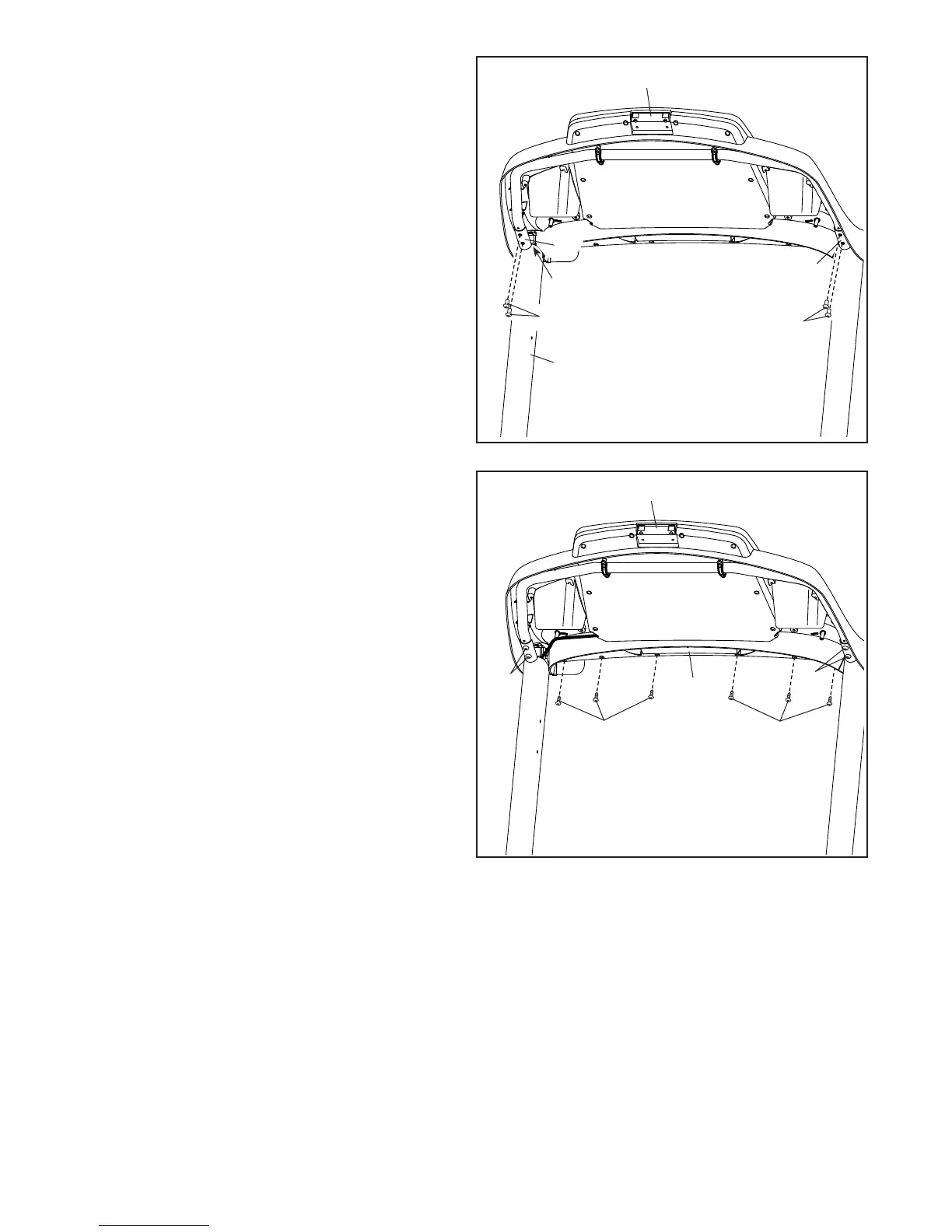

10. Set the console assembly (G) on the Handrails
(84). Make sure that no wires are pinched.
Insert the excess Upright Wire (81) into the Right
Upright (90).
Attach the console assembly (G) to the brack-
ets on the Handrails (84) with four 1/4" x 1/2"
Screws (4); do not tighten the Screws yet.
11. Attach the Pulse Crossbar (31) to the console
assembly (G) with six #8 x 5/8" Screws (1); start
all six Screws, and then tighten them. Do not
overtighten the Screws.
Firmly tighten the four 1/4" x 1/2" Screws (4).
