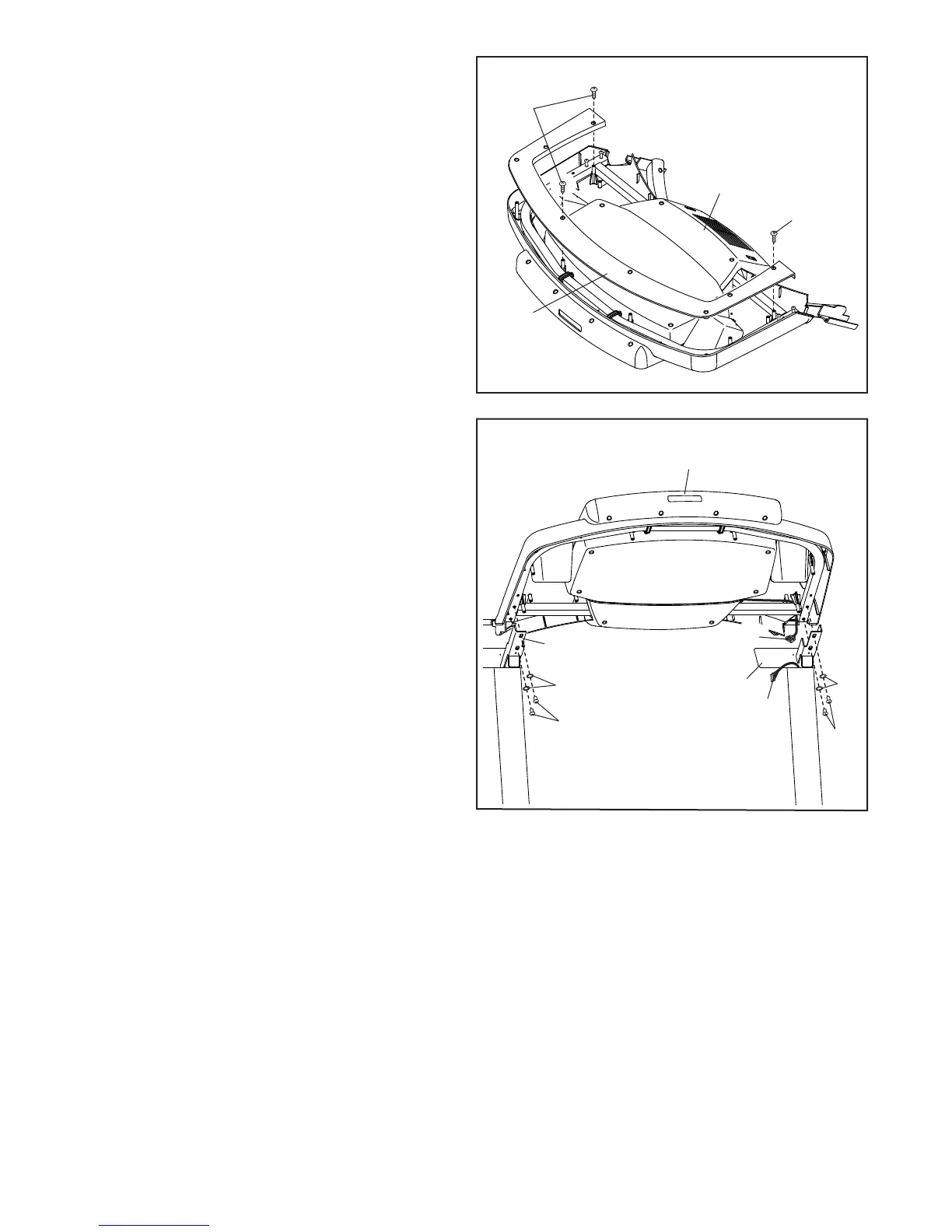

8. Set the console assembly face down on a soft
surface to avoid scratching the console assem-
bly. Remove and discard the three Screws (D).
Next, lift off the Console Cover (100).
100
Console
Assembly
D
8
9. Set the console assembly on the Left Handrail
(83) and the Right Handrail (86). Make sure not
to pinch any wires (E, 78).
Attach the console assembly with four 5/16" x
1/2" Screws (8) and four 5/16" Star Washers
(11). Do not tighten the Screws yet.
9
Console
Assembly
83
86
8
11
D
8
E
11
78
