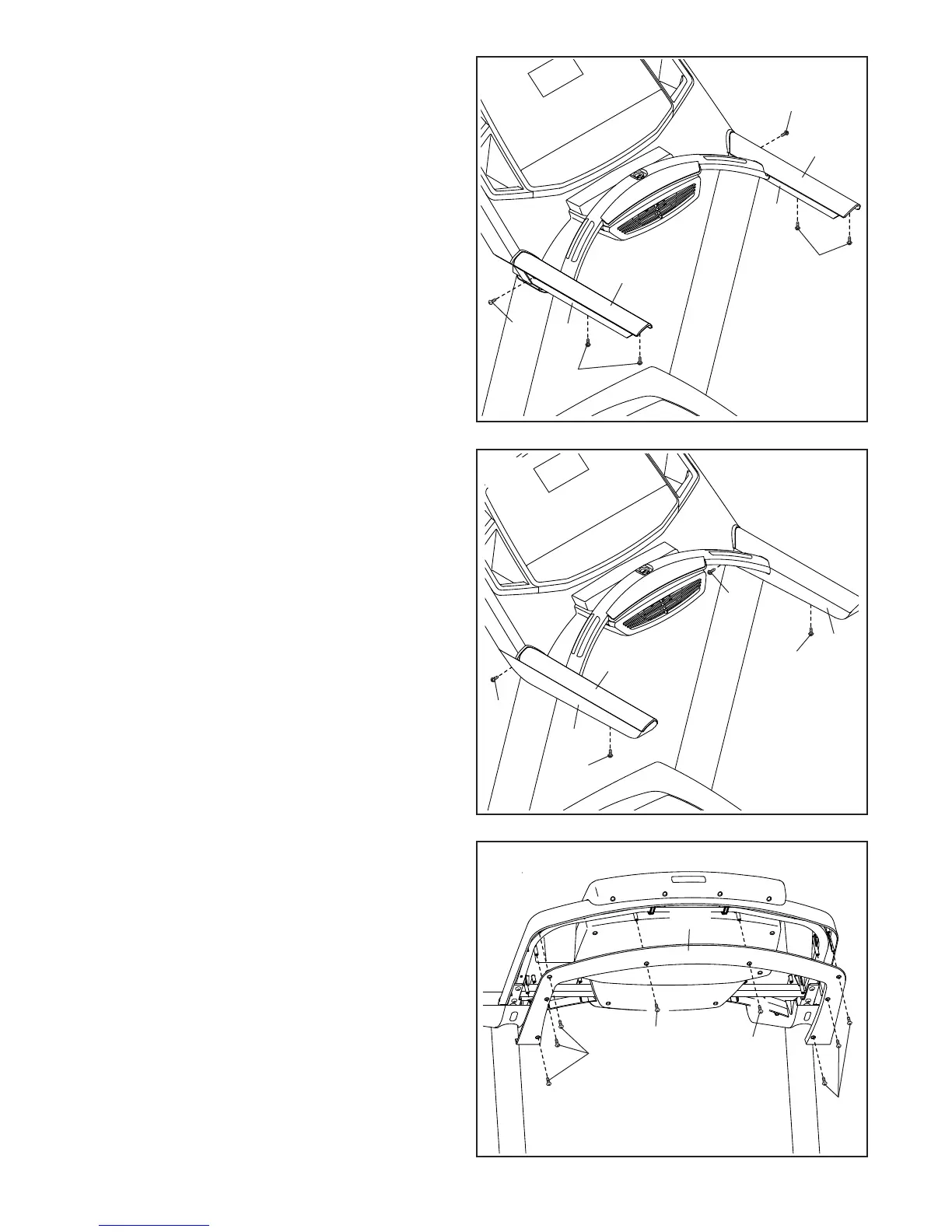

12. Attach the Left Handrail Cover (82) and the Right
Handrail Cover (85) to the Handrails (83, 86) with
three #8 x 1/2" Screws (1) each. Do not over-
tighten the Screws.
1
85
82
1
83
13. Slide the Left Bottom Handrail Cover (84) up
against the Left Handrail Cover (82) and attach
the Left Bottom Handrail Cover with two #8
x 1/2" Screws (1). Do not overtighten the
Screws.
Attach the Right Bottom Handrail Cover (87) as
described above.
13
82
1
1
87
84
14. Attach the Console Cover (100) with eight #8
x 1/2" Screws (1). Start all eight screws, and
then tighten them. Do not overtighten the
Screws. Make sure that no wires are pinched.
14
1
1
1
1
86
1
1
1
1
100
