9

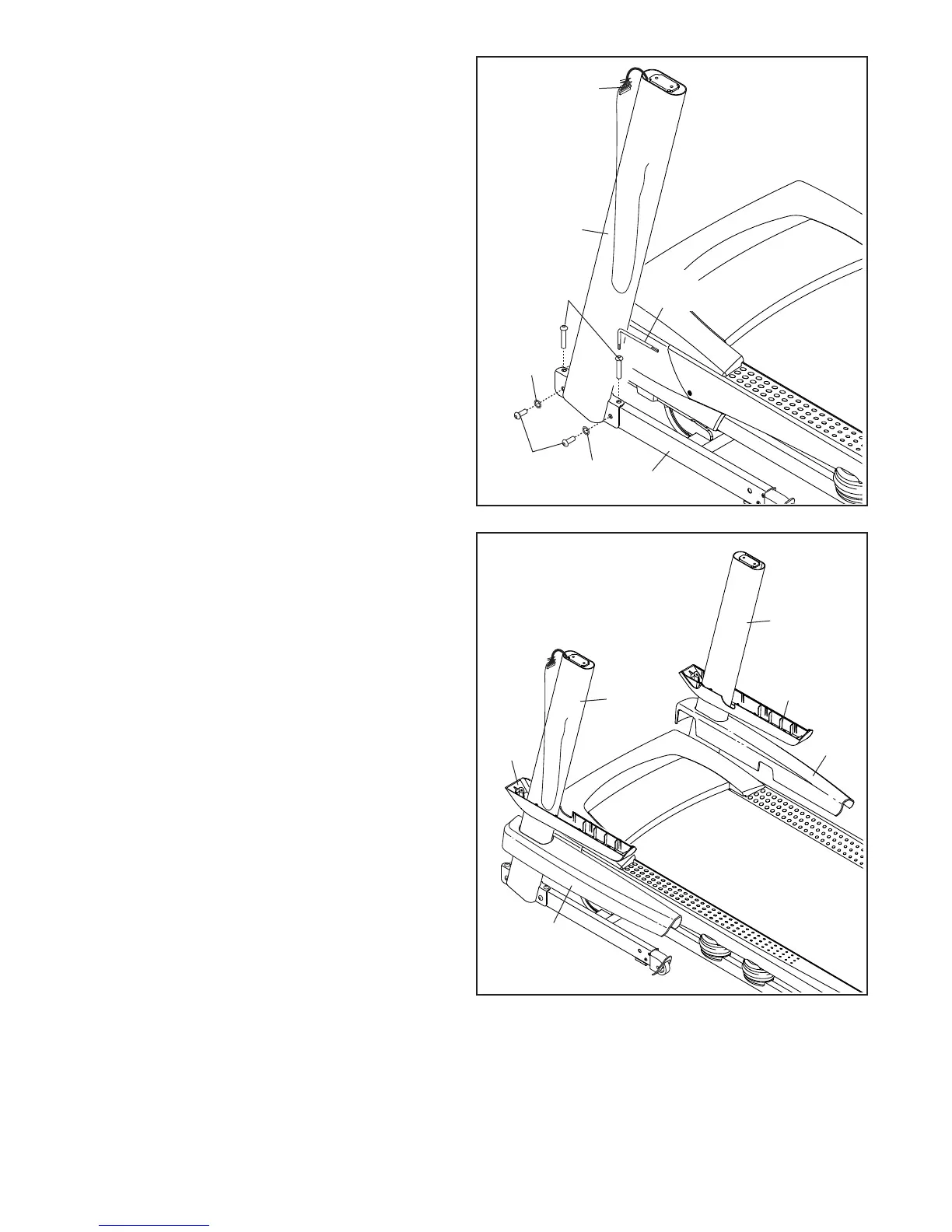

5. Identify the Left Base Cover (81) and the Right
Base Cover (89). Slide the Left Base Cover onto
the Left Upright (79). Slide the Right Base Cover
onto the Right Upright (88). Do not press the
Base Covers into place yet.
Identify the Left Bottom Handrail Cover (84) and
the Right Bottom Handrail Cover (87). Slide the
Left Bottom Handrail Cover onto the Left Upright
(79). Slide the Right Bottom Handrail Cover onto
the Right Upright (88).
79
81
87
88
84
89
5
4. Hold the Left Upright (79) against the Base (95).
Be careful not to pinch the Upright Wire (78).
Insert two 3/8" x 1 1/4" Screws (6) with two 3/8"
Star Washers (13) and two 3/8" x 2 3/4" Screws
(5) into the Left Upright.
Partially tighten the 3/8" x 2 3/4" Screws (5) and
the 3/8" x 1 1/4" Screws (6) until the heads of the
Screws touch the Left Upright (79); do not fully
tighten the Screws yet. Note: It may be helpful
to use the short hex key on the Screw shown.
Attach the Right Upright (not shown) in the
same way. Note: There are no wires on the right
side.
79
95
4
Hex
Key
78
6
5
13
13
To Next Page
