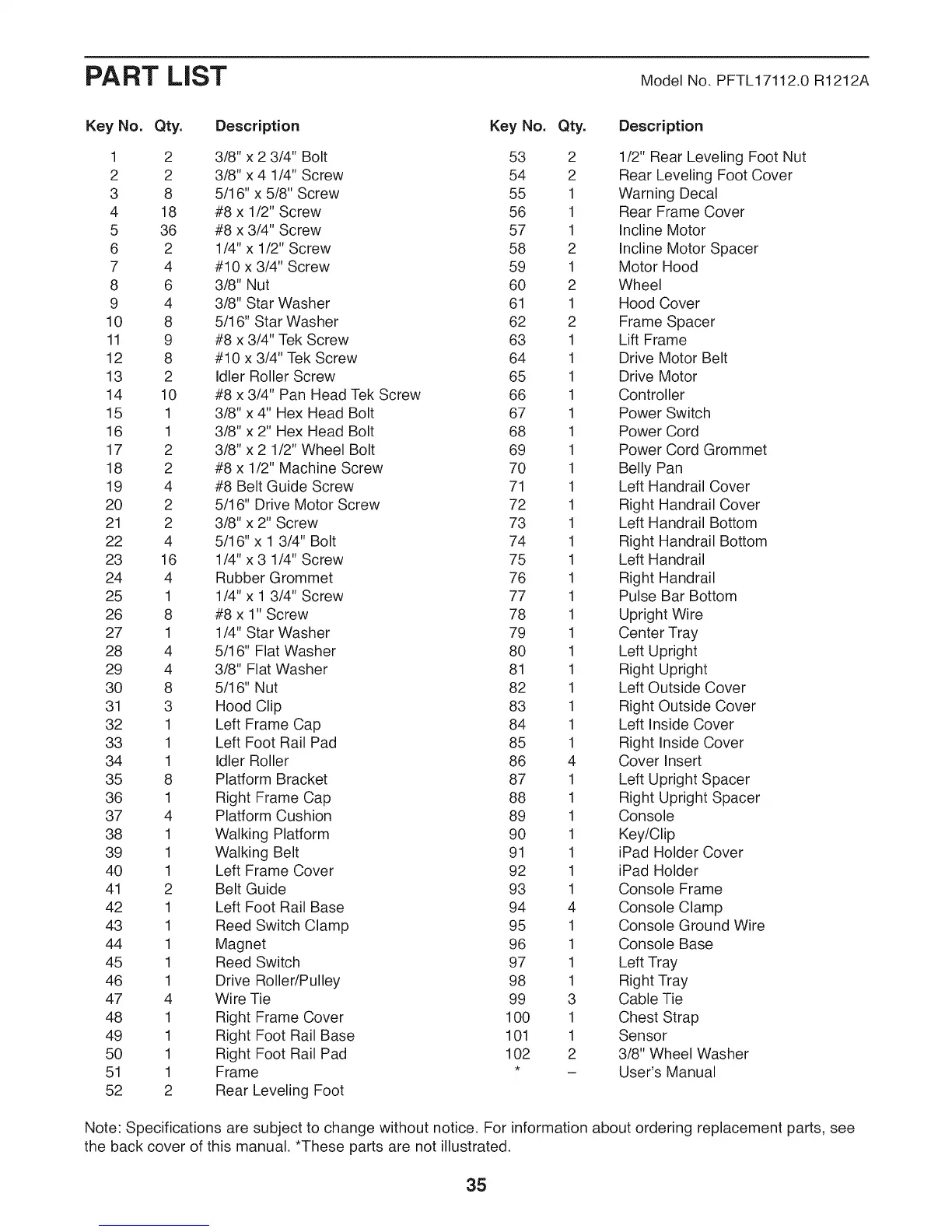

PART LIST Model No. PFTL17112.0 R1212A
Key No. Qty. Description Key No. Qty. Description
1 2 3/8" x 2 3/4" Bolt 53 2 1/2" Rear Leveling Foot Nut
2 2 3/8" x 4 1/4" Screw 54 2 Rear Leveling Foot Cover
3 8 5/16"x 5/8" Screw 55 1 Warning Decal
4 18 #8 x 1/2" Screw 56 1 Rear Frame Cover
5 36 #8 x 3/4" Screw 57 1 Incline Motor
6 2 1/4" x 1/2" Screw 58 2 Incline Motor Spacer
7 4 #10 x 3/4" Screw 59 1 Motor Hood
8 6 3/8" Nut 60 2 Wheel
9 4 3/8" Star Washer 61 1 Hood Cover
10 8 5/16" Star Washer 62 2 Frame Spacer
11 9 #8 x 3/4" Tek Screw 63 1 Lift Frame
12 8 #10 x 3/4" Tek Screw 64 1 Drive Motor Belt
13 2 Idler Roller Screw 65 1 Drive Motor
14 10 #8 x 3/4" Pan Head Tek Screw 66 1 Controller
15 1 3/8" x 4" Hex Head Bolt 67 1 Power Switch
16 1 3/8" x 2" Hex Head Bolt 68 1 Power Cord
17 2 3/8" x 2 1/2" Wheel Bolt 69 1 Power Cord Grommet
18 2 #8 x 1/2" Machine Screw 70 1 Belly Pan
19 4 #8 Belt Guide Screw 71 1 Left Handrail Cover
20 2 5/16" Drive Motor Screw 72 1 Right Handrail Cover
21 2 3/8" x 2" Screw 73 1 Left Handrail Bottom
22 4 5/16"x 1 3/4" Bolt 74 1 Right Handrail Bottom
23 16 1/4"x 3 1/4" Screw 75 1 Left Handrail
24 4 Rubber Grommet 76 1 Right Handrail
25 1 1/4"x 1 3/4" Screw 77 1 Pulse Bar Bottom
26 8 #8 x 1" Screw 78 1 Upright Wire
27 1 1/4" Star Washer 79 1 Center Tray
28 4 5/16" Flat Washer 80 1 Left Upright
29 4 3/8" Flat Washer 81 1 Right Upright
30 8 5/16" Nut 82 1 Left Outside Cover
31 3 Hood Clip 83 1 Right Outside Cover
32 1 Left Frame Cap 84 1 Left Inside Cover
33 1 Left Foot Rail Pad 85 1 Right Inside Cover
34 1 Idler Roller 86 4 Cover Insert
35 8 Platform Bracket 87 1 Left Upright Spacer
36 1 Right Frame Cap 88 1 Right Upright Spacer
37 4 Platform Cushion 89 1 Console
38 1 Walking Platform 90 1 Key/Clip
39 1 Walking Belt 91 1 iPad Holder Cover
40 1 Left Frame Cover 92 1 iPad Holder
41 2 Belt Guide 93 1 Console Frame
42 1 Left Foot Rail Base 94 4 Console Clamp
43 1 Reed Switch Clamp 95 1 Console Ground Wire
44 1 Magnet 96 1 Console Base
45 1 Reed Switch 97 1 Left Tray
46 1 Drive Roller/Pulley 98 1 Right Tray
47 4 Wire Tie 99 3 Cable Tie
48 1 Right Frame Cover 100 1 Chest Strap
49 1 Right Foot Rail Base 101 1 Sensor
50 1 Right Foot Rail Pad 102 2 3/8" Wheel Washer
51 1 Frame * - User's Manual
52 2 Rear Leveling Foot
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
